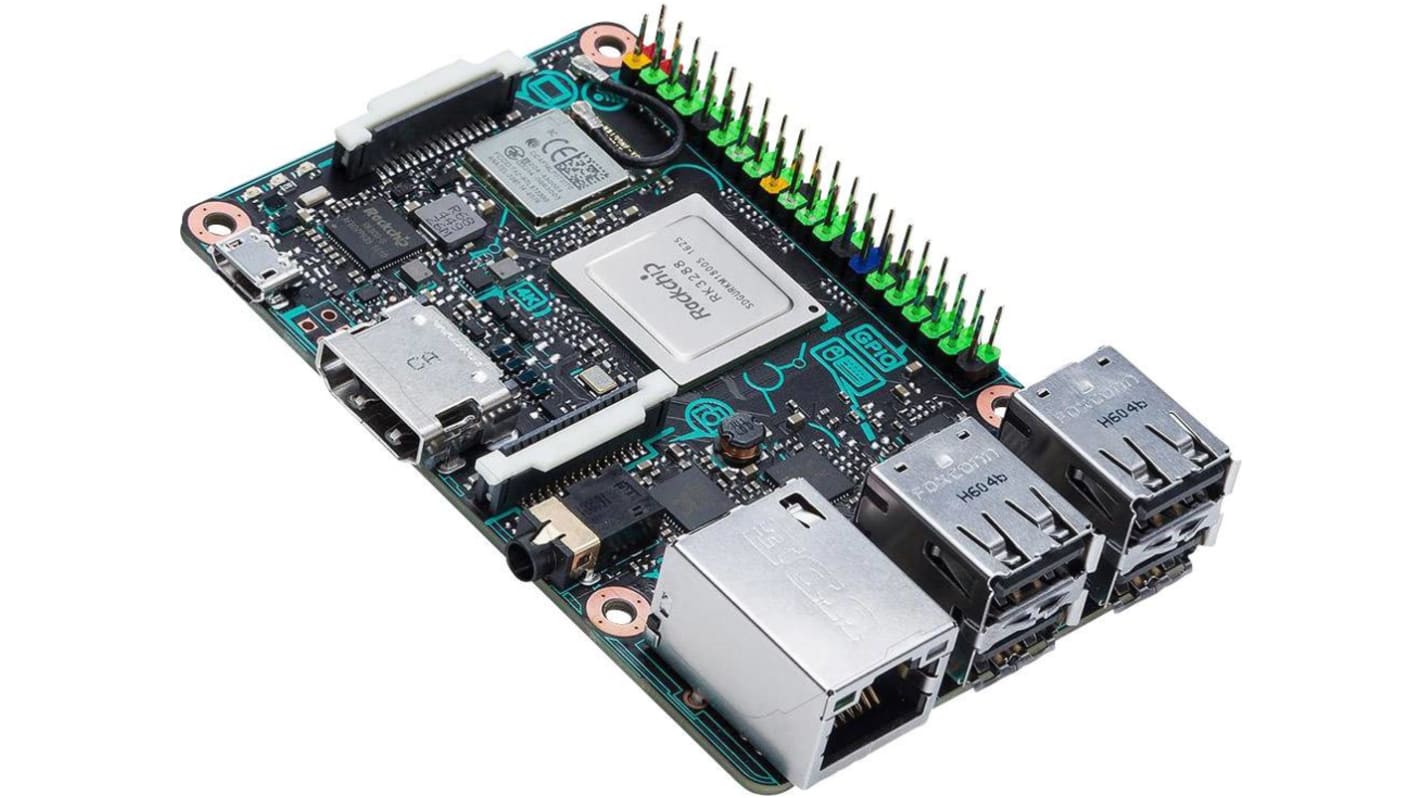

Asus Tinker Board 2 2GB Single Board Computer

RS stock no.:: 265-7193
Mfr. Part No.:: 90ME01N0-M0EAY0
Manufacturer:: Asus

Asus Tinker Board 2 2GB Single Board Computer

74 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)

Not Available for premium delivery

Price (Excl VAT) Each

R 2 270,11

(exc. VAT)

R 2 610,63

(inc. VAT)

Units	Per unit
1 +	R 2 270,11

RS stock no.:: 265-7193
Mfr. Part No.:: 90ME01N0-M0EAY0
Manufacturer:: Asus

manual - 90ME01N0-M0EAY0

The Asus Tinker Board 2 single board computer powered by a Arm® 6-core RK3399 system on a chip (SoC) with the new 64-bit ARMv8 architecture. The Tinker Board 2 provides ultimate performance for IoT devices, benefitting from Arm big.LITTLE technology ensuring the right CPU core for each process, multi-core Mali-T860 designed for complex graphics use cases, and offers full support for OpenGL ES 3.0/3.1, OpenVG 1.1, OpenCL and other frameworks for next-generation and legacy 2D/3D graphics applications.

Key benefits of Tinker Board 2:

Dual-Display Support: Tinker Board 2 supports dual displays at up to 4K UHD resolution.

Wi-Fi and Bluetooth: 802.11ac Wi-Fi with 2x2 dual-band 2.4/5 GHz antennas, Bluetooth 5.0 technology

Rich connectivity options: Tinker Board 2 offers three USB 3.2 Gen 1 Type-A ports and one USB 3.2 Gen 1 Type-C (USB-C) port

Easily expandable for embedded solutions: RTC battery header, SD card slot, Fan connector

Built-in protection for your peace of mind: Short-circuit damage prevention, Electrostatic discharge protection, Overvoltage protection

Easy setup: Have your Tinker Board 2 going in no time! It includes a flexible setup tool enabling you to tweak settings to perfectly match the way you work. Initial configuration follows just three simple steps.

IT Management Software: ASUS IoT Cloud Console, ASUS Industrial Android FOTA

Technical specifications:

SoC: Rockchip RK3399

CPU: Dual-core Arm® Cortex®-A72 @ 2.0 GHz, Quad-core Arm® Cortex®-A53 @ 1.5 GHz

GPU: Arm® Mali™-T860 MP4 GPU @ 800 MHz

Display: 1 x HDMI™ with CEC hardware ready, 1 x USB Type-C® (DP Alt Mode), 1 x 22-pin MIPI DSI (4 lane)

Memory: Dual-CH LPDDR4 2GB

Storage: Micro SD(TF) card slot (push/pull)

Connectivity: 1 x RTL8211F-CG GbE LAN, 1 x M.2 - 802.11 a/b/g/n/ac wireless & BT 5.0 (2T2R)

Audio: 1 x HDMI™ audio output, 1 x S/PDIF TX pin (from GPIO), 1 x PCM/I2S pins (from GPIO)

USB: 3 x USB 3.2 Gen1 Type-A ports, 1 x USB 3.2 Gen1 Type-C® OTG port

Camera Interface: 1 x 15-pin MIPI CSI-2 (2 lane)

Internal Headers: 1 x 40-pin headers includes:
- up to 28 x GPIO pins
- up to 2 x SPI bus
- up to 2 x I2C bus
- up to 2 x UART
- up to 3 x PWM
- up to 1 x PCM/I2S
- up to 1 x S/PDIF TX
- 2 x 5V power pins
- 2 x 3.3V power pins
- 8 x ground pins
1 x 2-pin Recovery header
1 x 2-pin Power-on header
1 x 2-pin Reset header
1 x 2-pin Debug UART header
1 x 2-pin DC Fan header
1 x 2-pin RTC Battery header

Power Connector (up to 45W): 1 x 12∼19V DC Power Input Jack (5.5/2.5 mm)

OS Support: Debian 9 / Android 10

Dimensions: 85 x 56 mm

Operation temperature: 0℃ ∼ 60℃
