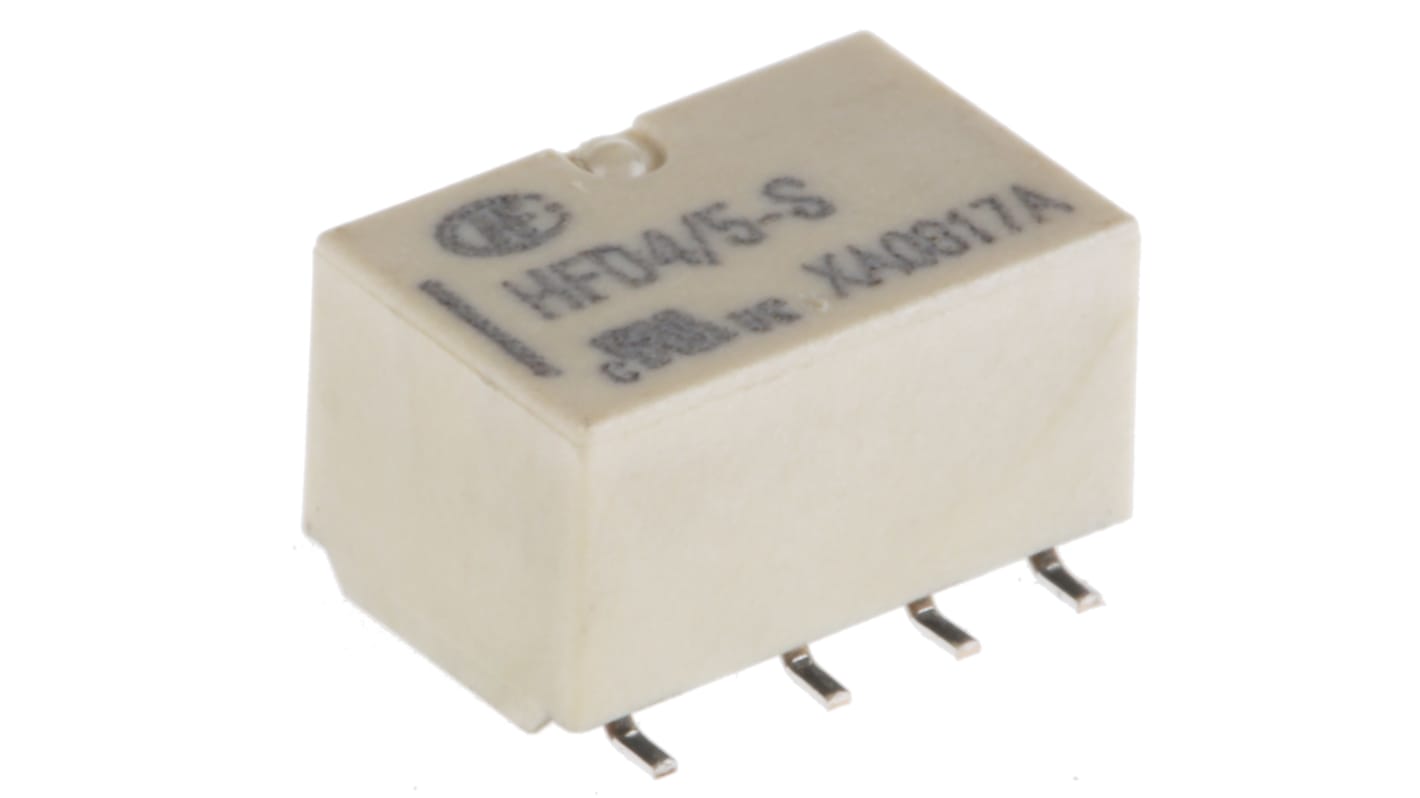

RS PRO PCB Mount Signal Relay, 5V dc Coil, 2A Switching Current, SPDT

You can depend on this non-latching relay DPDT (double pole double throw) from RS PRO to operate your circuit. As the switch flips back to its original position after use, it's often used with keyboards and micro-controller input applications.
The component is designed for mounting onto a circuit board. It's long-lasting with a lifespan of 100,000 electrical operations and 100 million manual operations.

• Signal application
• Coil power of 140 mW
• Coil resistance of 178 Ω
• Coil voltage of 5 V DC
• DPDT contact configuration
• Gold-plated contact material
• Depth of 6.5 mm
• Height of 5.65 mm
• Isolation coil to contact of 1.6 kV AC
• Length of 10 mm
• Life of 100000 (Electrical) Operations, 100000000 (Mechanical) Operations
• Minimum operating temperature of -40°C
• Maximum operating temperature of +85°C
• Maximum switching power (AC) of 62.5 VA
• Maximum switching power (DC) of 60 W
• Maximum switching voltage of 250 V AC
• Maximum switching voltage of 220 V DC
• PCB mounting type
• Two poles
• Subminiature signal relay switching classification
• Single side stable special features
• Standards met include cULus E133481, RoHS (Restriction of Hazardous Substances)
• Switching current of 2 A
• Surface mounting terminal type
