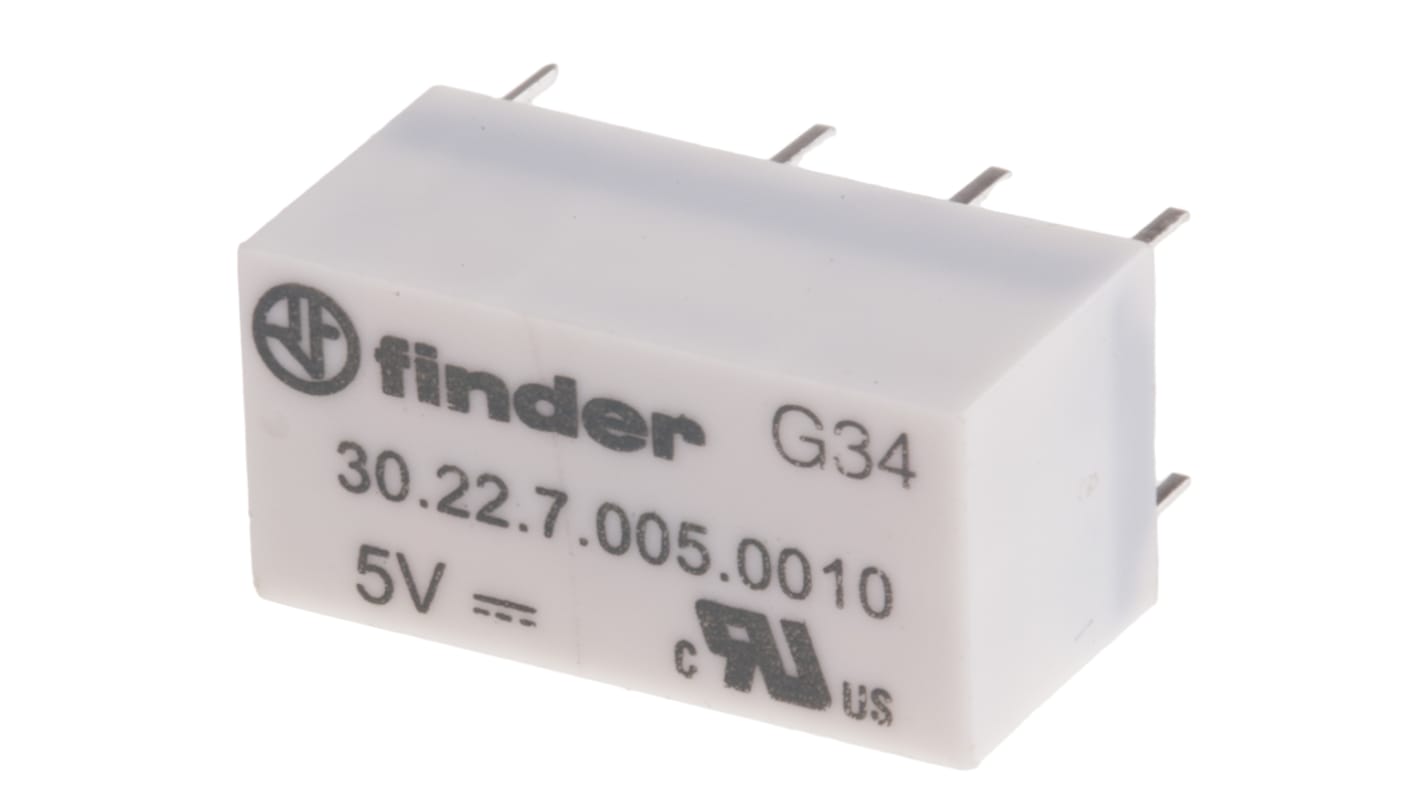

Name: Finder PCB Mount Signal Relay, 5V dc Coil, 2A Switching Current, DPDT
Brand: Finder
SKU: 492-6580
Price: 172.07 ZAR
Availability: Discontinued

Finder Series 30 Signal Relay, 62.5VA Maximum Switching Power (AC), -40 to +85°C Operating Temperature Range - 30.22.7.005.0010

This subminiature DIL relay is designed for PCB mounting, with a compact size of 20.5x10.1x11.5mm. Operating at a coil voltage of 5V DC, it is suitable for low-level switching applications and various electronic circuits. It offers robust electrical and mechanical life ratings, ensuring performance in challenging environments.

Features & Benefits

• Operates with a low coil power of 200 mW
• Provides high voltage isolation of 1.5 kV AC
• Features DPDT configuration for versatile switching
• Suitable for ambient temperatures ranging from -40 to +85°C
• Cadmium-free contact materials enhance safety and durability
• Wash-tight construction protects against environmental factors

Applications

• Used in electronic circuit boards for automation tasks
• Commonly integrated into Hi-Fi systems and printers
• Employed in medical and dental equipment
• Utilised in toys and hoists for reduced power consumption
• Suitable for door and gate opener controls

Is it suitable for high voltage applications?

Yes, it has a maximum switching voltage of 125V AC.

Can the contacts handle low-level signals?

Yes, it can switch loads as low as 10 mW.

Is it easy to mount on a PCB?

Yes, it is designed specifically for PCB mounting.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	5V dc
	Contact Configuration	DPDT
	Mounting Type	PCB Mount
	Maximum Switching Voltage AC	125V ac
	Series	30
	Maximum Switching Power DC	24 W
	Latching	No
	Length	20.5mm
	Depth	10.1mm
	Height	11.5mm
	Terminal Type	Through Hole
	Number of Poles	2
	Switching Current	2A
	Electrical Life	100000 Cycles
	Isolation Coil To Contact	1.5kV ac
	Life	10000000 (Electrical) cycles, 10000000 (Mechanical) cycles
	Maximum Operating Temperature	+85°C
	Minimum Operating Temperature	-40°C
	Contact Material	AgNi + Au
	Coil Resistance	125 O
	Coil Power	200mW
	Relay Switching Classification	Subminiature DIL Relay
	Maximum Switching Power AC	62.5VA
	Operating Temperature Range	-40 → +85°C

	Select all
	Brand Finder
	Coil Voltage 5V dc
	Contact Configuration DPDT
	Mounting Type PCB Mount
	Maximum Switching Voltage AC 125V ac
	Series 30
	Maximum Switching Power DC 24 W
	Latching No
	Length 20.5mm
	Depth 10.1mm
	Height 11.5mm
	Terminal Type Through Hole
	Number of Poles 2
	Switching Current 2A
	Electrical Life 100000 Cycles
	Isolation Coil To Contact 1.5kV ac
	Life 10000000 (Electrical) cycles, 10000000 (Mechanical) cycles
	Maximum Operating Temperature +85°C
	Minimum Operating Temperature -40°C
	Contact Material AgNi + Au
	Coil Resistance 125 O
	Coil Power 200mW
	Relay Switching Classification Subminiature DIL Relay
	Maximum Switching Power AC 62.5VA
	Operating Temperature Range -40 → +85°C
