RS PRO Female 5 way Straight to Unterminated Free End Sensor Actuator Cable, 5 m

View all Sensor & Actuator Cables
Bulk discount available

Subtotal (1 unit)*

R 306,64

(exc. VAT)

R 352,64

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 24 unit(s) ready to ship from another location
  • Plus 180 unit(s) shipping from 13 February 2026
  • Plus 80 unit(s) shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9R 306.64
10 - 19R 298.97
20 - 49R 290.00
50 - 99R 278.40
100 +R 267.26

*price indicative

RS stock no.:
174-7851
Distrelec Article No.:
304-04-035
Manufacturer:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Sensor Actuator Cable

Series

7300

Cable Length

5m

Jacket Colour

Black

Jacket Material

Polyvinyl Chloride

Connector Gender A

Female

Connector Type A

Straight

Number of Contacts A

5

Connector Gender B

Unterminated

Connector Type B

Free End

Voltage

125 V ac/dc

Standards/Approvals

cLus Certified, CSA, cULus, DIN VDE 0298-4, EN 60529, IEC 60664-1, UL

IP Rating

IP65, IP66K, IP67

COO (Country of Origin):
DE

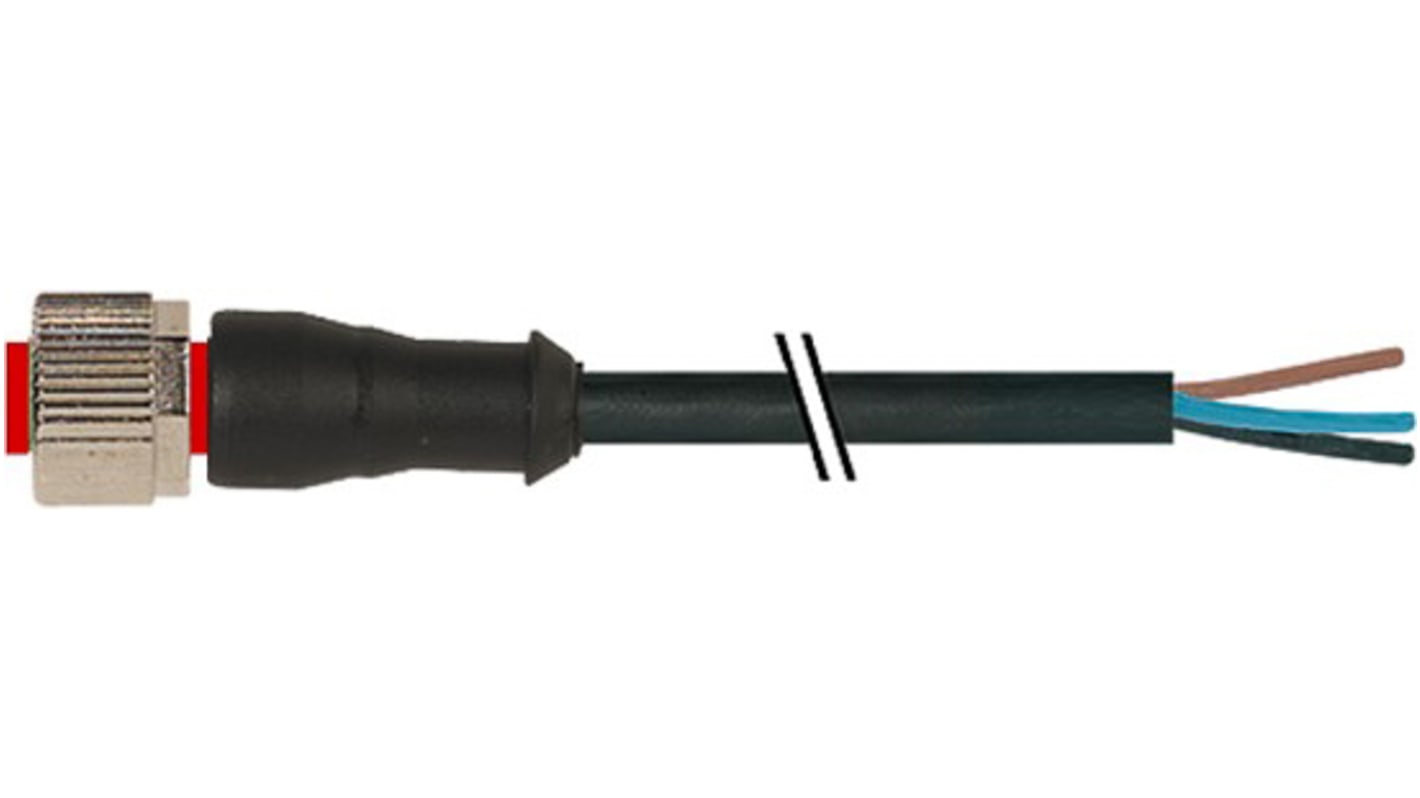

RS PRO Straight M12 to Unterminated Industrial Automation Cable Assembly, 5 Cores, 5 m


If you need a versatile way to connect industrial ethernet cables or factory automation equipment to your electronic components, choose this RS PRO M12 cable assembly. One end is a partially-stripped unterminated wire, so you can customise the connection to suit your specific equipment.

The cable's integrated corrugated conduit locking system on the M12 end reinforces the wire so it can withstand heavy industrial use. Once you've securely connected it with the knurled and hexagonal combination nut, the cable is well-protected from harsh and demanding environments.

The product has an Ingress Protection (IP) rating of IP67, meaning it can operate for up to 30 minutes in 1 m of water. The polyurethane (PUR) sheath material is corrosion-resistant and provides extra strength and durability.

Features and Benefits


• American Wire Gauge size of 22 AWG

• Round cable shape

• Copper conductor material

• Connector A is an M12 straight female socket

• Five contacts

• Connector B is unterminated

• Cross sectional area of 0.34 mm²

• Current rating of 4 A

• IP67 rating (dust-tight and sealed against water jets)

• Length of 5 m

• Minimum bend radius of 10 x 15 mm

• Five cores

• Oil-resistant

• Operating temperature range of -25°C to +85°C

• Outer diameter of 15 mm

• Polyvinyl chloride (PVC) outer sheath material

• Black sheath colour

• Polyurethane (PUR) sheath material

• Unshielded

• cLus certified

• Meets Canadian Standards Association (CSA), DIN VDE 0298-4, EN 60529, IEC 60664-1, Underwriter Laboratories (UL) safety standards for low-voltage insulated cables

• Voltage rating of 125 V AC/DC
