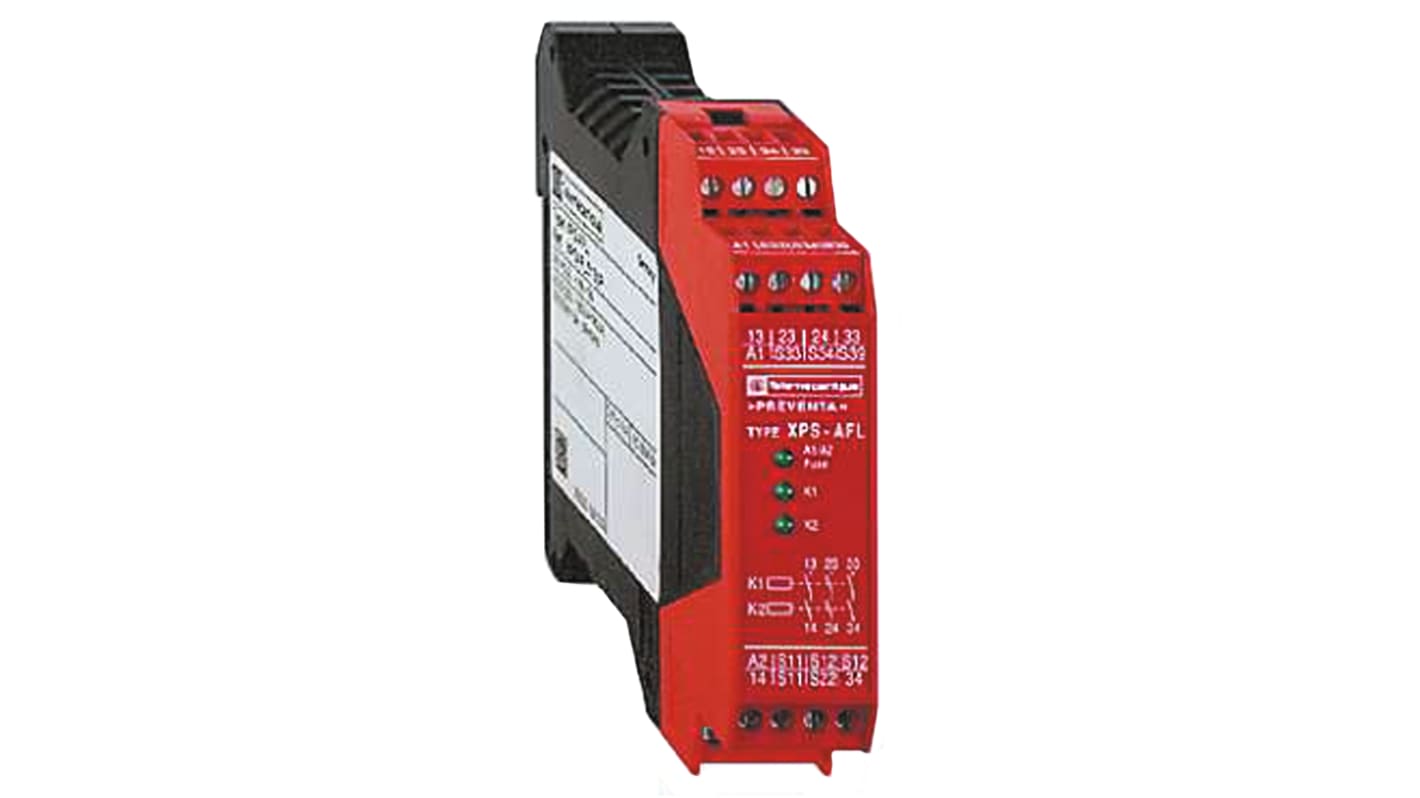

    Schneider Electric Dual-Channel Emergency Stop, Light Beam/Curtain, Safety Switch/Interlock Safety Relay, 24V ac/dc, 3

    RS stock no.:
    814-6921
    Mfr. Part No.:
    XPSAFL5130P
    Manufacturer:
    Schneider Electric
    Schneider Electric
    View all Safety Relays
    Discontinued product

    Alternatives

    This product is not currently available. Here are our alternative recommendations.

    Schneider Electric Single-Channel Two Hand Control Safety Relay, 24V dc, 2 Safety Contacts
    RS stock no.
    814-6937

    Price (Excl VAT) Each

    R 9,033.26

    (exc. VAT)

    R 10,388.25

    (inc. VAT)

    Schneider Electric Dual-Channel Safety Switch/Interlock Safety Relay, 115V ac, 3 Safety Contacts
    RS stock no.
    814-6943

    Price (Excl VAT) Each

    R 5,837.17

    (exc. VAT)

    R 6,712.75

    (inc. VAT)

    Schneider Electric Single-Channel Safety Switch/Interlock Safety Relay, 24V dc, 2 Safety Contacts
    RS stock no.
    814-6946

    Price (Excl VAT) Each

    R 4,670.68

    (exc. VAT)

    R 5,371.28

    (inc. VAT)

    Schneider Electric Single-Channel Safety Switch/Interlock Safety Relay, 24V dc, 2 Safety Contacts
    RS stock no.
    814-6949

    Price (Excl VAT) Each

    R 6,931.96

    (exc. VAT)

    R 7,971.75

    (inc. VAT)

    Schneider Electric Dual-Channel Safety Switch/Interlock Safety Relay, 24V ac/dc, 5 Safety Contacts
    RS stock no.
    814-6955

    Price (Excl VAT) Each

    R 9,455.32

    (exc. VAT)

    R 10,873.62

    (inc. VAT)

    Schneider Electric Dual-Channel Emergency Stop Safety Relay, 24V, 3 Safety Contacts
    RS stock no.
    200-6133

    Price (Excl VAT) Each

    R 4,578.32

    (exc. VAT)

    R 5,265.07

    (inc. VAT)

    RS stock no.:
    814-6921
    Mfr. Part No.:
    XPSAFL5130P
    Manufacturer:
    Schneider Electric
    COO (Country of Origin):
    ID

    Legislation and Compliance

    COO (Country of Origin):
    ID

    Product Details

    Schneider Electric Preventa Safety Modules - XPSAFL


    From Schneider Electric this is the Preventa XPSAF part of the Schneider Preventa safety automation range providing you with best answer to monitoring safety functions in safety relays. The safety relay gives to the best protection as they include a redundancy feature principle micro-processer technology with advanced functions.

    The XPSAF Safety relay is designed to monitor emergency stop circuits as well as electrical monitoring of switches activated by protection devices and type 4 light curtains. These modules are housed within a hardwearing and compact enclosure with three safety outputs. To assist with diagnostics, the XPSAFL modules feature 3 LEDs on the front face which provides information on the monitoring circuit status.

    Feature Applications.


    • Emergency stop and switches.

    • Coded magnetic switches.

    • Sensing mats and edges.

    • Two-hand control.

    • Light curtains.

    • Zero speed.

    • Time delay.

    • Lifts.

    • Applications on hydraulic and eccentric processes.

    • All possible dangerous machines which need protection for the operator and the machine.

    SXPSAFL5130P Preventa XPSAF Safety Relay Safety Module.


    • XPSAF Safety module.

    • Emergency stop, switch and safety light curtain monitoring.Unmonitored start.

    • Captive screw clamp terminals.

    • 3 NO output (relay instantaneous opening, volt free).

    • Supply voltage 24 V ac/dc.

    • 50/60 Hz frequency.

    • Resistance 90 Ohm.

    • 3 LEDs.

    • 35 mm DIN rail mounting.

    • Net weight 0.25 kg.

    Function:

    • Emergency stop with 2 NC contacts monitoring 2-channel wiring.

    • Multiple emergency stop monitoring 2-channel wiring.

    • Monitoring of a movable guard.

    • Emergency stop monitoring 1-channel wiring.

    • Monitoring of electro-sensitive protection equipment (ESPE).

    Standards.


    • EN 60204-1, EN 1088/ISO 14119, EN/ISO 13850, EN/IEC 60947-5-1. EN/IEC 61496-1 (type 4).

    Protection.


    • IP 20 to EN/IEC 60529.

    • IP 40 to EN/IEC 60529.

    Certification.


    • UL, TUV, CSA.


    Specification

    AttributeValue
    Supply Voltage24V ac/dc
    Number of Channels2
    Safety Contacts3
    FunctionEmergency Stop, Light Beam/Curtain, Safety Switch/Interlock
    Reset MethodMonitored
    RangePreventa
    Safety Category ISO 13849-14
    PL ISO 13849-1e
    SIL IEC 615083
    Terminal TypeScrew
    SeriesXPS AF
    Depth114mm
    Width22.5mm
    Length99mm
    Performance Levele
