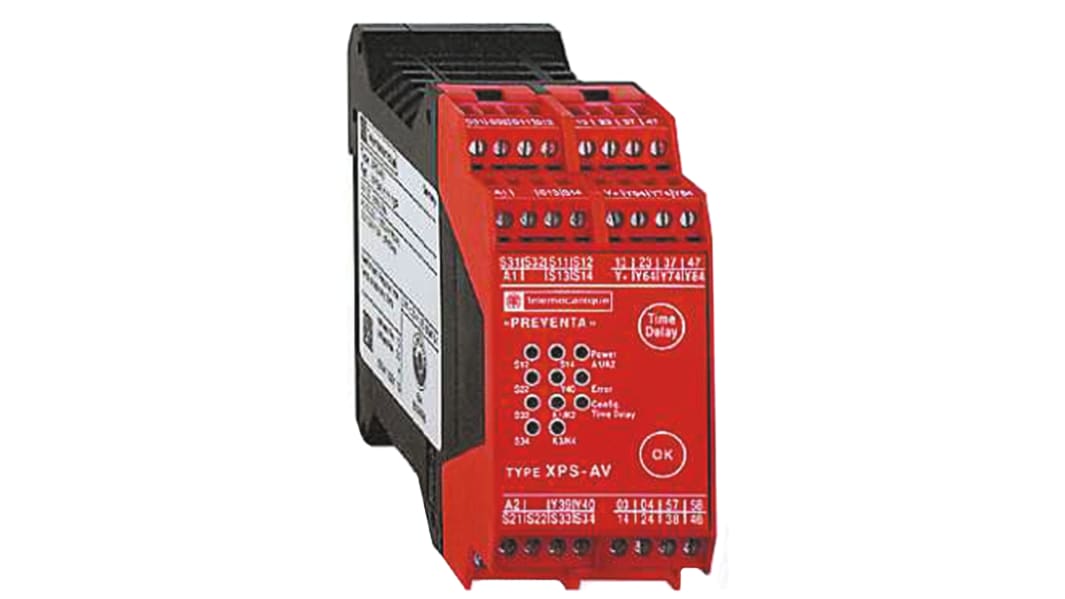

    Schneider Electric Dual-Channel Emergency Stop, Safety Switch/Interlock Safety Relay, 24V dc, 6 Safety Contacts

    RS stock no.:
    814-6915
    Mfr. Part No.:
    XPSAV11113P
    Manufacturer:
    Schneider Electric
    Schneider Electric
    View all Safety Relays
    Discontinued product

    Alternatives

    This product is not currently available. Here are our alternative recommendations.

    Schneider Electric Single-Channel Two Hand Control Safety Relay, 24V dc, 2 Safety Contacts
    RS stock no.
    814-6937

    Price (Excl VAT) Each

    R 9,033.26

    (exc. VAT)

    R 10,388.25

    (inc. VAT)

    Schneider Electric Dual-Channel Safety Switch/Interlock Safety Relay, 115V ac, 3 Safety Contacts
    RS stock no.
    814-6943

    Price (Excl VAT) Each

    R 5,837.17

    (exc. VAT)

    R 6,712.75

    (inc. VAT)

    Schneider Electric Single-Channel Safety Switch/Interlock Safety Relay, 24V dc, 2 Safety Contacts
    RS stock no.
    814-6946

    Price (Excl VAT) Each

    R 4,670.68

    (exc. VAT)

    R 5,371.28

    (inc. VAT)

    Schneider Electric Single-Channel Safety Switch/Interlock Safety Relay, 24V dc, 2 Safety Contacts
    RS stock no.
    814-6949

    Price (Excl VAT) Each

    R 6,931.96

    (exc. VAT)

    R 7,971.75

    (inc. VAT)

    Schneider Electric Dual-Channel Safety Switch/Interlock Safety Relay, 24V ac/dc, 5 Safety Contacts
    RS stock no.
    814-6955

    Price (Excl VAT) Each

    R 9,455.32

    (exc. VAT)

    R 10,873.62

    (inc. VAT)

    RS stock no.:
    814-6915
    Mfr. Part No.:
    XPSAV11113P
    Manufacturer:
    Schneider Electric

    Not Applicable

    COO (Country of Origin):
    ID

    Legislation and Compliance

    Not Applicable

    COO (Country of Origin):
    ID

    Product Details

    Schneider Electric | Preventa XPS Series (XPS) | Safety Relays


    Simple and effective safety monitoring has never been more crucial in today's highly automated world. Prevention is key to site safety, that's why Schneider Electric offers a Safety Relay in the form of the 'Preventa XPS' module that is second to none. Being able to monitor faults with devices along a circuit has the power to stop emergency situations from even occurring.

    Features and benefits:


    • Dual channel with a timed Delay (0-300s)

    • Monitoring of single safety functions, providing an automated solution for use with applications such as emergency push stop buttons or switches.

    • Unlimited synchronisation between time inputs.

    • Lightweight and compact offering great plug-in functionality to existing circuitry.

    • Symmetrical DIN rail support, offering flexible and versatile safety system installation.

    • Local signalling in the form of LEDs.


    Protection ratings & Safety features (see datasheet for specifics) -

    • Input protection type is internal, electronic.

    • EN1088/ISO 14119, EN 60204-1, EN/IEC 60947-5-1, EN/ISO 13850

    • CSA, TUV & UL listed

    • IP 40 (enclosure) for protection against small objects up to 1mm such as tools, wires and small wires.

    • IP20 (terminals) for protection against solid objects such as fingers, smaller tools up to 12mm.

    Applications -


    All dangerous machinery requires an automated solution to prevent harm to immediate users and also prevent damage to the machinery. Below are some of the safety applications

    • Coded Magnetic Switch (CMS) to prevent tampering by unauthorised users.

    • Time delay input if needed allowing you to set up your own time function.

    • Light curtains / Two-hand control safety circuits

    • Sensing mats and edges

    Standards

    IEC 204-1; EN 292; EN 418; EN 60204-1; EN 1088

    XPSAV11113P Schneider Electric Preventa Safety Relay Module.


    • Preventa safety module XPSAV.

    • For emergency stop and switch monitoring.

    • Configurable start.

    • Captive screw clamp terminals.

    • 3 NO (volt free) relay instant opening output

    • 3 Solid state output additional circuit.

    • Supply voltage 24 V dc.

    • Maximum power consumption 5 W dc.

    • Breaking 1.5 A at 24 V (DC-13).

    • Minimum output current 10 MA (relay output).

    • Minimum output voltage 17 V (relay output).

    • Response time 30 Ms (input open).

    • 11 LEDs.

    • Mounting 35 mm DIN rail.

    • Net weight 0.32 Kg.


    Specification

    AttributeValue
    Supply Voltage24V dc
    Number of Channels2
    Safety Contacts6
    FunctionEmergency Stop, Safety Switch/Interlock
    Auxiliary Contacts3
    Reset MethodAutomatic, Monitored
    RangePreventa
    Safety Category ISO 13849-14
    PL ISO 13849-1e
    SIL IEC 615083
    Terminal TypeScrew
    ConfigurableYes
    Better World ProductYes
    Width45mm
    SeriesXPS AV
    Depth114mm
    Performance Levele
    Better World VerificationGreen Premium
    Length99mm
