    IDEM GLS-SS Rope Pull Switch, 100m, 2NO/2NC, Straight

    IDEM
    RS stock no.:
    826-4110
    Mfr. Part No.:
    144021A
    Manufacturer:
    IDEM
    View all Rope Pull Switches
    11 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
    Add to Basket
    units

    Not Available for premium delivery

    Added

    Price (Excl VAT) Each

    R 6,058.16

    (exc. VAT)

    R 6,966.88

    (inc. VAT)

    unitsPer unit
    1 +R 6,058.16
    RS stock no.:
    826-4110
    Mfr. Part No.:
    144021A
    Manufacturer:
    IDEM

    Legislation and Compliance

    COO (Country of Origin):
    GB

    Product Details

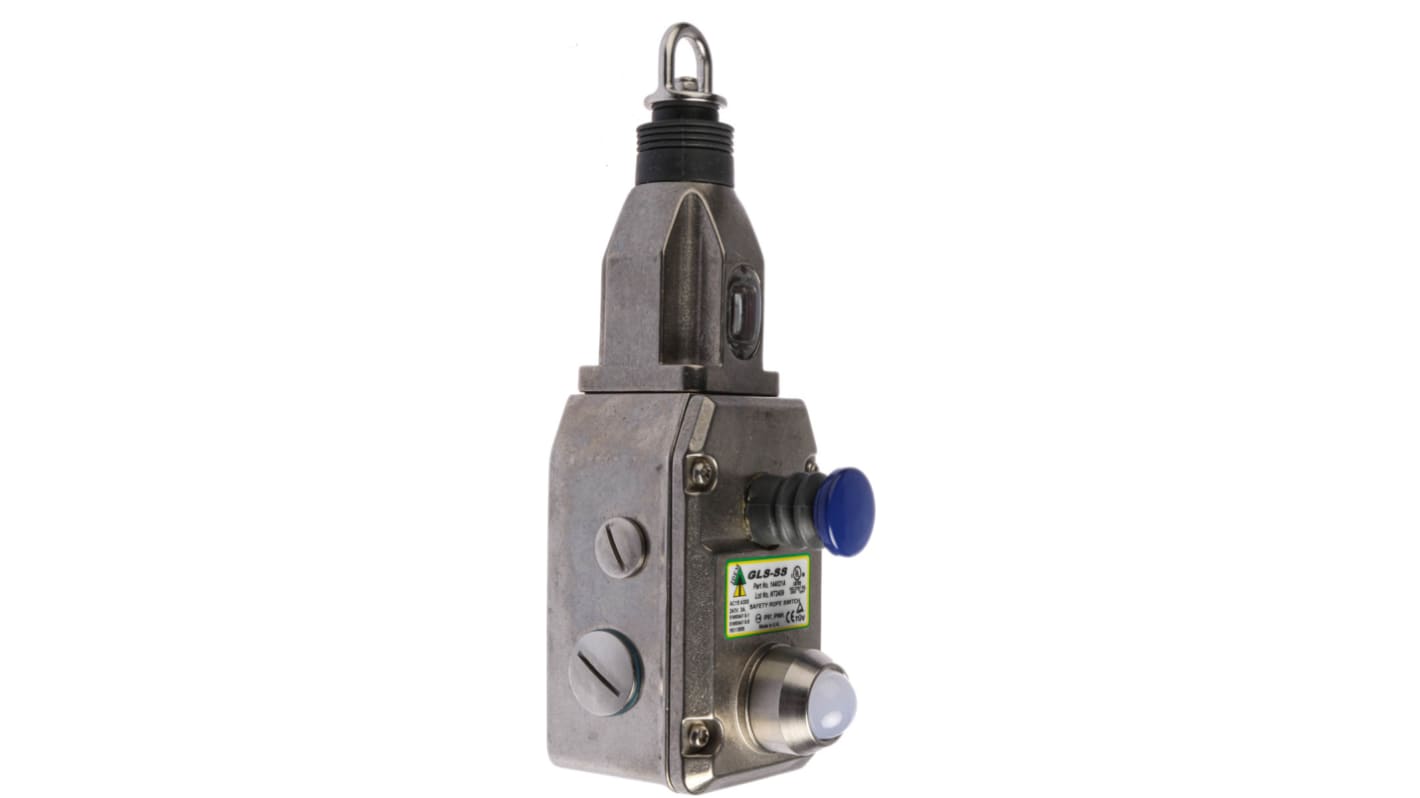

    IDEM Rope Pull Switch


    The IDEM GLS-SS series emergency stop rope pull cable switch has 2NO/2NC contact configuration. It is compact, robust yellow and has stainless steel housing that protects short conveyor lengths of up to 100m and offers a choice of fittings depending on the application. This switch is designed to be mounted on machines and sections of conveyors, which cannot be protected by guards and unlike emergency stop pushbuttons, it can be activated from any point along the length of the rope pull to provide robust emergency stop protection. In combination with a dual-channel safety monitoring relay, this safety rope switch can be used as an emergency stop device and monitored. This product has a guardian line, which has a positive mechanical linkage between the switch contacts and the wire rope, as well as wire breakage monitoring. Once the rope is pulled, anywhere along its length, the safety contacts are positively opened and the auxiliary contacts are closed. This switch is mechanically latched and can only be returned to the operational condition by pressing the blue reset button.
    This switch has an electrical current rating of 2.5A at a voltage rating of 250VAC/VDC.

    Features and Benefits


    Switch mechanism will latch the instant the safety contacts open
    Positive break contacts
    Rugged integral sealing bellows mean they can be high pressure hosed
    All internal screws are stainless steel
    4 pole 2NC/2NO
    Size of cable entry is M20

    Certifications


    IEC60947-5-1
    IEC60947-5-5
    EN954-1
    EN62061
    UL508
    ISO 13850
    ISO 13849-1
    CE certified
    TUV certified
    IP69 rated


    Specification

    Attribute
    Value
    Normal State Configuration2NO/2NC
    Cable Length100m
    Mounting OrientationStraight
    IP RatingIP67, IP69K
    Number of Poles4P
    SeriesGLS-SS
    RangeGuardian Line
    Length239mm
    Width65mm
    Depth55mm
    Housing Material316 Stainless Steel
    Maximum Operating Temperature+80°C
    Dimensions239 x 65 x 55mm
    Maximum Current2.5A
    Conduit EntryM20
    Maximum AC Voltage250V
    Maximum DC Voltage250V
    Minimum Operating Temperature-25°C
