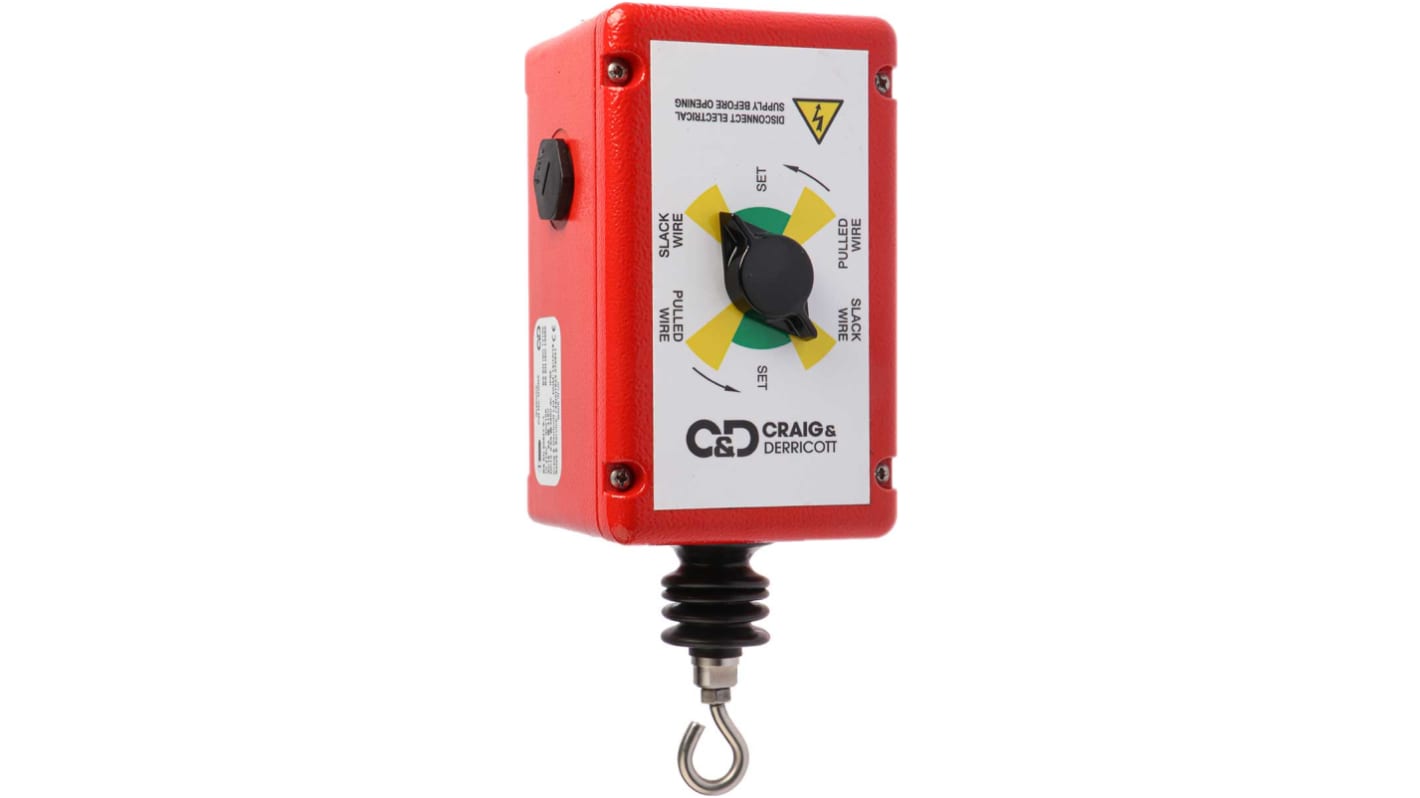

Craig & Derricott GWN Rope Pull Switch 214.5 mm, Straight, 2 NO/2 NC

View all Rope Pull Switches
Bulk discount available

Subtotal (1 unit)*

R 10 798,21

(exc. VAT)

R 12 417,94

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 5R 10,798.21
6 +R 10,528.25

*price indicative

RS stock no.:
198-7380
Mfr. Part No.:
GWN2
Manufacturer:
Craig & Derricott
Find similar products by selecting one or more attributes.
Select all

Brand

Craig & Derricott

Product Type

Rope Pull Switch

Contact Configuration

2 NO/2 NC

Mounting Orientation

Straight

Indicator Type

Rope Tension

IP Rating

IP65

Number of Cable Entries

3

Series

GWN

Reset Button

Yes

Contact DC Voltage

24V dc

Contact Current

10A

E-Stop Button

Yes

Contact AC Voltage

415V ac

Depth

99.5mm

Length

214.5mm

Width

100mm

Standards/Approvals

EN, ISO

Housing Material

Die Cast Aluminium

Hazardous Area Certification

No

Mechanical Life

1000000Operations

Conduit Entry

M20

COO (Country of Origin):
GB

GWN Series, Grab Wire


Designed to offer grabwire switch protection for personnel working in close proximity to conveyors or rotating and moving machines in various environments

Typical applications: - conveyors, assembly lines, transfer lines, packaging machinery, process equipment

Grabwire switches are a convenient way of installing two-rope pull switches on a long rope run, with common wiring and two heads

When the units are correctly installed and set, the system switching contacts are closed allowing the system to operate

If the grabwire is pulled the switch contacts will open, providing operator safety. Whether the grabwire has been pulled, gone slack or been broken, it can only be started by manually resetting the switch unit

100M max span, each side

Ingress protection to IP65 as standard

Sealed M20 cable entries

Safety and auxiliary contacts as standard 2N/C + 1N/O

To comply with BS 5304 switch units should be fitted at each end of the grabwire

To complete an installation a connection kit is required, containing the wire rope, instruction leaflet and all other necessary elements

Please order the appropriate kit for length for your installation from the RS Rope kits for grabwire switches

Standards & Approvals BS EN 60947-5-1, BS EN 60947-5-5, BS 5304

Note

Our rope switch kits contain all fittings necessary for installation. Available in 5, 10, 20, 30, 50 and 75 metre lengths.
Stock No typ 239-6757
