SKF 23028 CC/C3W33 Tappered 140 mm ID Roller Bearing, 210 mm OD
- RS stock no.:
- 207-8562
- Mfr. Part No.:
- 23028 CC/C3W33
- Manufacturer:
- SKF
Subtotal (1 unit)*
R 19 146,26
(exc. VAT)
R 22 018,20
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- Shipping from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 19,146.26 |
*price indicative
- RS stock no.:
- 207-8562
- Mfr. Part No.:
- 23028 CC/C3W33
- Manufacturer:
- SKF
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 140mm | |
| Race Width | 53mm | |
| Bore Type | Tappered | |
| Roller Material | Steel | |
| Bearing Material | Steel | |
| Internal Clearance | C3 | |
| Number of Rows | 1 | |
| Outside Diameter | 210mm | |
| Static Load Rating | 680kN | |
| Dynamic Load Rating | 485kN | |
| Standards/Approvals | No | |
| Series | 23028 CC/W33 | |
| Limiting Speed | 3400rpm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 140mm | ||
Race Width 53mm | ||
Bore Type Tappered | ||
Roller Material Steel | ||
Bearing Material Steel | ||
Internal Clearance C3 | ||
Number of Rows 1 | ||
Outside Diameter 210mm | ||
Static Load Rating 680kN | ||
Dynamic Load Rating 485kN | ||
Standards/Approvals No | ||
Series 23028 CC/W33 | ||
Limiting Speed 3400rpm | ||
- COO (Country of Origin):
- US

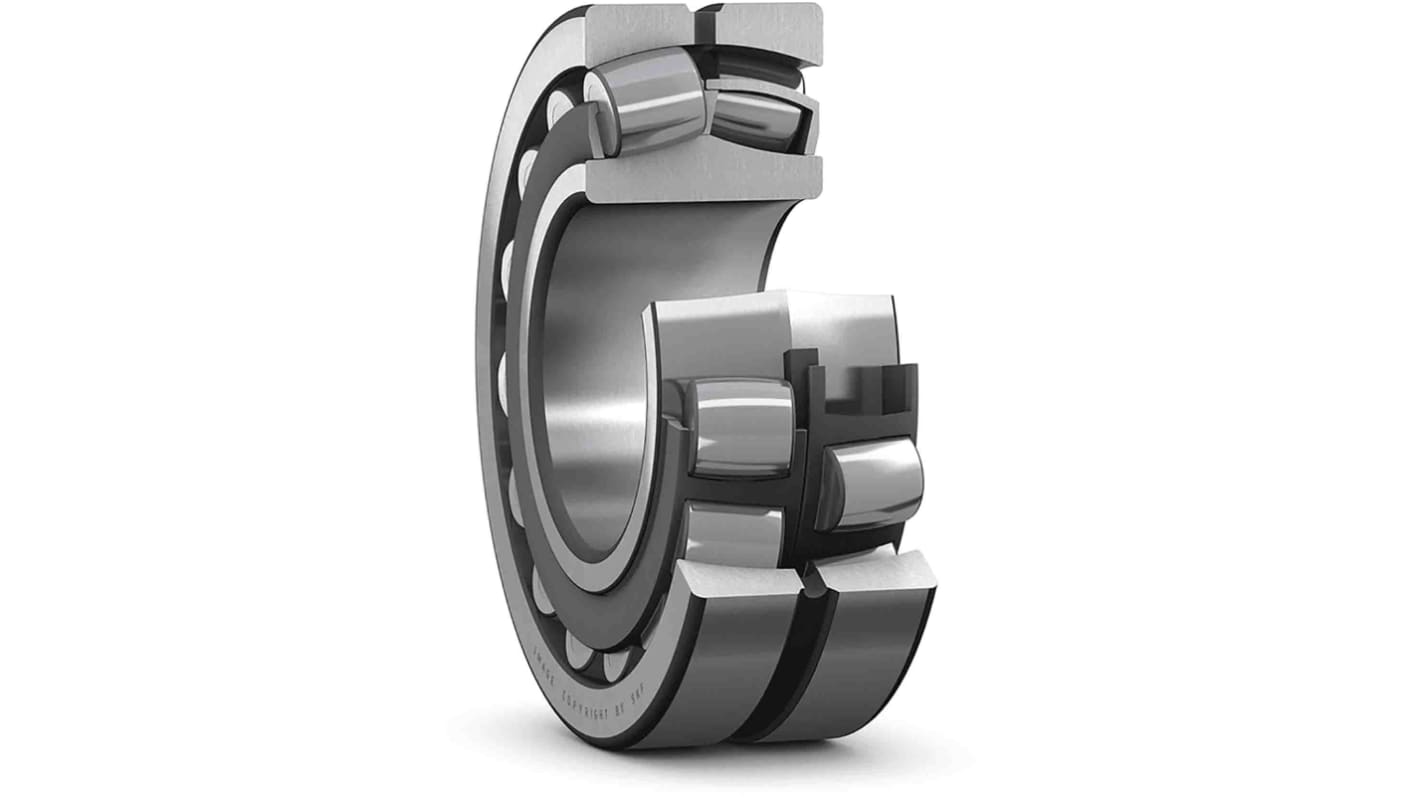

The SKF spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. It has 140 mm ID and 210 mm OD.
Bearing is of bearing steel
Cylindrical bore type
