Can support high to very high radial forces
Are used when the load carrying capacity or accuracy of drawn cup needle roller bearings with open ends is no longer sufficient and the high load capacity of cylindrical roller bearings is not yet required
Can only support radial loads and, as a result, are highly suitable for use as non-locating bearings (they permit axial displacement of the shaft relative to the housing in the bearing)
Permit high speeds in spite of line contact
Compensate misalignments between the shaft and housing (aligning needle roller bearings)
Require only a very small radial design envelope, particularly if the bearing arrangement is designed without an inner ring
Are available in numerous sizes and designs
Result in particularly compact, cost-effective and economical bearing arrangements

Units	Per unit
1 - 4	R 709,80
5 - 9	R 692,06
10 - 24	R 671,30
25 +	R 644,45

Select all	Attribute	Value
	Brand	INA
	Inside Diameter	20mm
	Outside Diameter	28mm
	Roller Bearing Type	Needle
	Race Width	13mm
	Bore Type	Parallel
	Static Load Rating	10300N
	Cage Material	Sheet Steel
	Number of Rows	1
	Dynamic Load Rating	9700N
	End Type	Sealed
	Fatigue Limit Load	2070N

	Select all
	Brand INA
	Inside Diameter 20mm
	Outside Diameter 28mm
	Roller Bearing Type Needle
	Race Width 13mm
	Bore Type Parallel
	Static Load Rating 10300N
	Cage Material Sheet Steel
	Number of Rows 1
	Dynamic Load Rating 9700N
	End Type Sealed
	Fatigue Limit Load 2070N

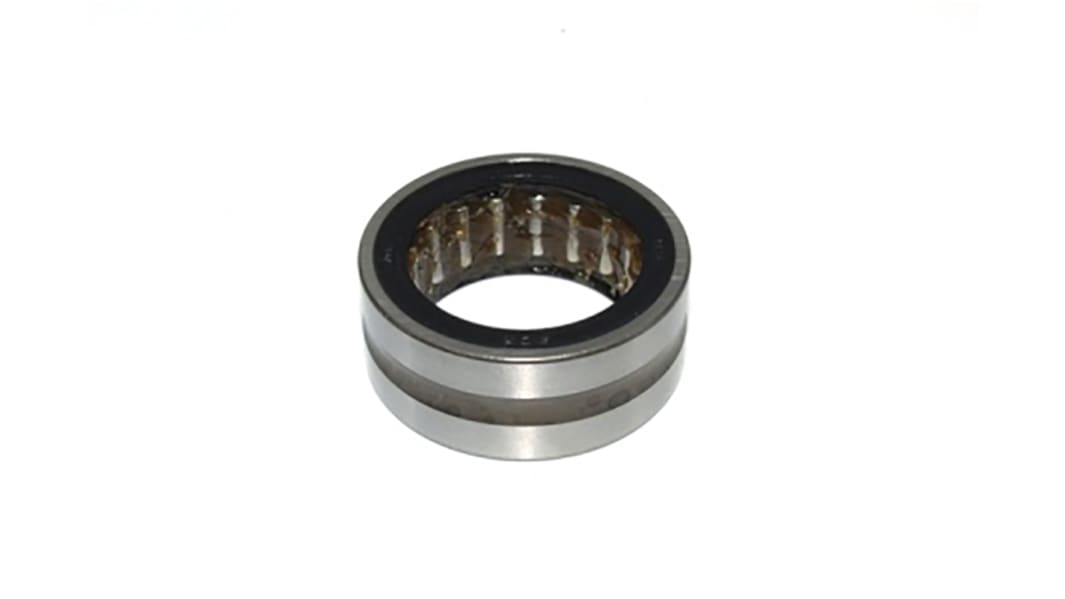

INA RNA4902-2RSR-XL 20mm I.D Needle Roller Bearing, 28mm O.D
