MECATRACTION, C & CT Uninsulated Ring Terminal, 12 mm Stud Size
- RS stock no.:
- 265-0292
- Mfr. Part No.:
- 25-12CT
- Manufacturer:
- MECATRACTION
Subtotal (1 box of 50 units)*
R 795,45
(exc. VAT)
R 914,75
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 200 unit(s) ready to ship from another location
- Plus 850 unit(s) shipping from 23 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 50 + | R 15.909 | R 795.45 |
*price indicative
- RS stock no.:
- 265-0292
- Mfr. Part No.:
- 25-12CT
- Manufacturer:
- MECATRACTION
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MECATRACTION | |
| Product Type | Ring Terminal | |
| Series | C & CT | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 6.6mm | |
| Outer Ring Diameter | 9.5mm | |
| Overall Length | 41.6mm | |
| Stud Size | 12 mm | |
| Contact Material | Copper | |
| Contact Plating | Electrolytic Tin Plated | |
| Thickness | 2.1mm | |
| Standards/Approvals | NF C20-130 | |
| Select all | ||
|---|---|---|
Brand MECATRACTION | ||
Product Type Ring Terminal | ||
Series C & CT | ||
Insulation Uninsulated | ||
Inner Ring Diameter 6.6mm | ||
Outer Ring Diameter 9.5mm | ||
Overall Length 41.6mm | ||
Stud Size 12 mm | ||
Contact Material Copper | ||
Contact Plating Electrolytic Tin Plated | ||
Thickness 2.1mm | ||
Standards/Approvals NF C20-130 | ||
Exempt
- COO (Country of Origin):
- FR

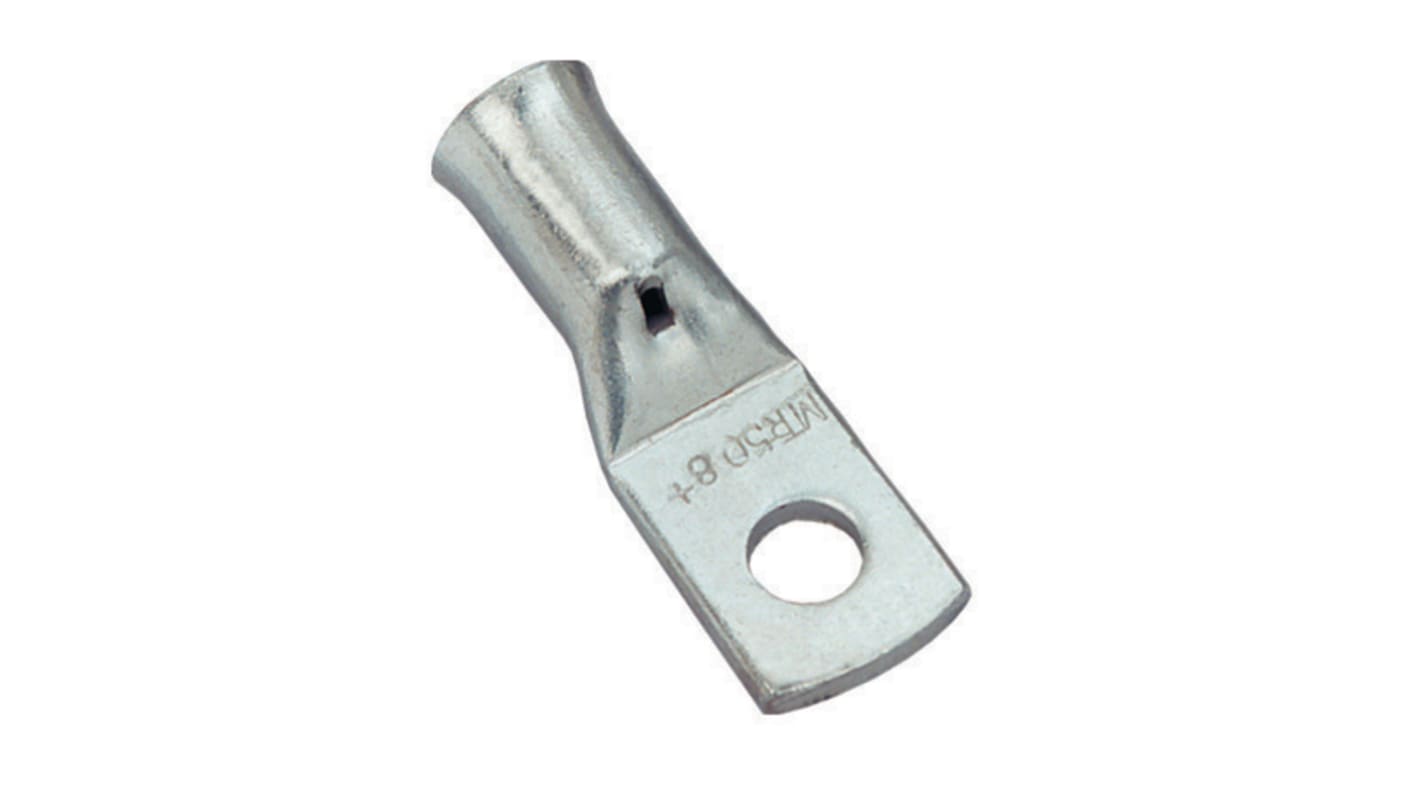

The Mecatraction C & CT series copper tubular lug for 25 mm² conductor size & with electrolytic tin plating process.
Electrolytic tin plating process
Bell entry from 10 mm²
