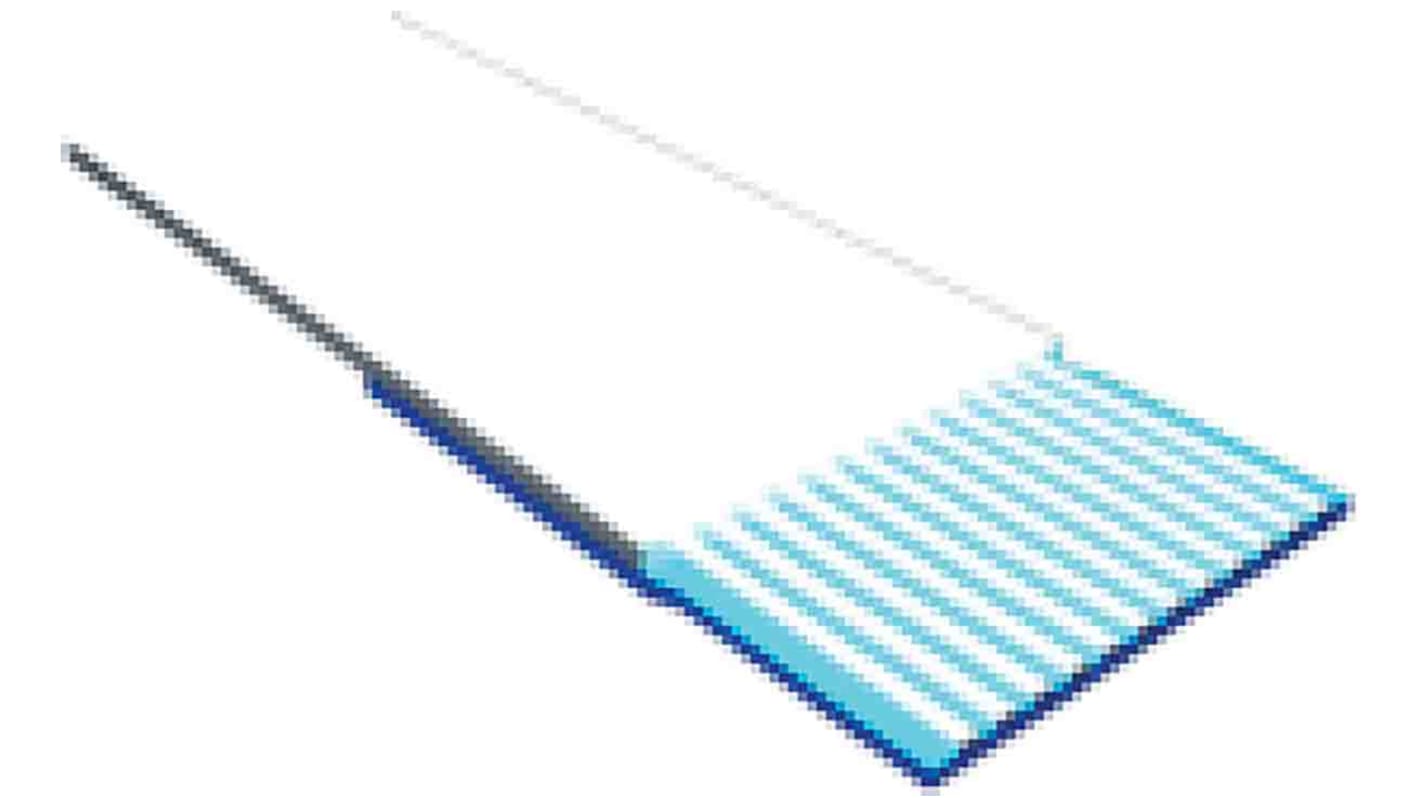

Samtec FJH Series Ribbon Cable, FFC, 0.5 mm Pitch, 20, 50.8 mm Length
- RS stock no.:
- 196-9985
- Mfr. Part No.:
- FJH-20-D-02.00-4
- Manufacturer:
- Samtec
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
R 56,39
(exc. VAT)
R 64,85
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 56.39 |
| 5 - 24 | R 54.98 |
| 25 - 49 | R 53.33 |
| 50 - 99 | R 51.20 |
| 100 + | R 49.15 |
*price indicative
- RS stock no.:
- 196-9985
- Mfr. Part No.:
- FJH-20-D-02.00-4
- Manufacturer:
- Samtec
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Cable Type | FFC | |
| Product Type | Ribbon Cable | |
| Pitch | 0.5mm | |
| Voltage | 60V | |
| Screened/Unscreened | Unscreened | |
| Number of Conductors | 20 | |
| American Wire Gauge | 30AWG | |
| Series | FJH | |
| Conductor Type | Stranded | |
| Cable Length | 50.8mm | |
| Standards/Approvals | RoHS Compliant | |
| Hi-Flex | Yes | |
| Maximum Operating Temperature | 80°C | |
| Minimum Operating Temperature | 30°C | |
| Conductor Material | Tin Plated Copper | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Cable Type FFC | ||
Product Type Ribbon Cable | ||
Pitch 0.5mm | ||
Voltage 60V | ||
Screened/Unscreened Unscreened | ||
Number of Conductors 20 | ||
American Wire Gauge 30AWG | ||
Series FJH | ||
Conductor Type Stranded | ||
Cable Length 50.8mm | ||
Standards/Approvals RoHS Compliant | ||
Hi-Flex Yes | ||
Maximum Operating Temperature 80°C | ||
Minimum Operating Temperature 30°C | ||
Conductor Material Tin Plated Copper | ||
The Samtec FJH-20-D-02.00-4 is a FJH series flay flexible cable jumper. It can be easily modified for custom pin counts and lengths. Also it has mating standard and ZIF connectors.
Conductor is tin plated copper
Conductor resistance is 1000W/km max
Temperature rating is -30°C to +80°C
