Samtec FJH Series Ribbon Cable, Flat Flex Cable, 0.5 mm Pitch, 15
- RS stock no.:
- 196-9975
- Mfr. Part No.:
- FJH-15-R-02.00-4
- Manufacturer:
- Samtec
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
R 40,04
(exc. VAT)
R 46,05
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- 17 unit(s) shipping from 04 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 40.04 |
| 5 - 24 | R 39.04 |
| 25 - 49 | R 37.87 |
| 50 - 99 | R 36.36 |
| 100 + | R 34.91 |
*price indicative
- RS stock no.:
- 196-9975
- Mfr. Part No.:
- FJH-15-R-02.00-4
- Manufacturer:
- Samtec
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | Ribbon Cable | |
| Cable Type | Flat Flex Cable | |
| Pitch | 0.5mm | |
| Voltage | 60V | |
| Screened/Unscreened | Unscreened | |
| Number of Conductors | 15 | |
| American Wire Gauge | 30AWG | |
| Series | FJH | |
| Conductor Type | Stranded | |
| Standards/Approvals | RoHS | |
| Hi-Flex | Yes | |
| Minimum Operating Temperature | 30°C | |
| Conductor Material | Tin Plated Copper | |
| Maximum Operating Temperature | 80°C | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type Ribbon Cable | ||
Cable Type Flat Flex Cable | ||
Pitch 0.5mm | ||
Voltage 60V | ||
Screened/Unscreened Unscreened | ||
Number of Conductors 15 | ||
American Wire Gauge 30AWG | ||
Series FJH | ||
Conductor Type Stranded | ||
Standards/Approvals RoHS | ||
Hi-Flex Yes | ||
Minimum Operating Temperature 30°C | ||
Conductor Material Tin Plated Copper | ||
Maximum Operating Temperature 80°C | ||

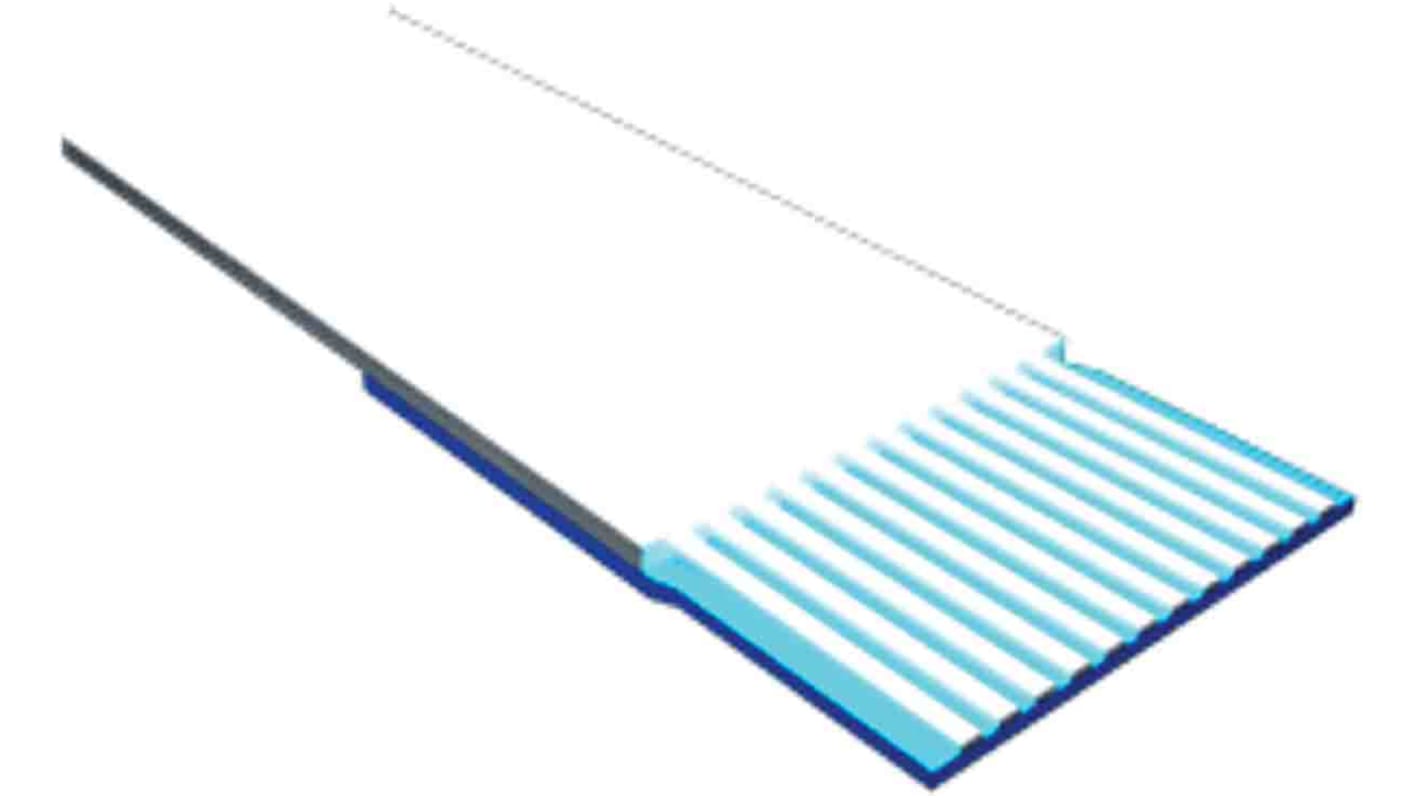

The Samtec FJH-15-R-02.00-4 is a FJH series flay flexible cable jumper. It can be easily modified for custom pin counts and lengths. Also it has mating standard and ZIF connectors.
Conductor is tin plated copper
Conductor resistance is 1000W/km max
Temperature rating is -30°C to +80°C
