Nordic Semiconductor nRF7001-QFAA-R7 RF Transceiver, 48-Pin QFN-48
- RS stock no.:
- 279-6403
- Mfr. Part No.:
- nRF7001-QFAA-R7
- Manufacturer:
- Nordic Semiconductor

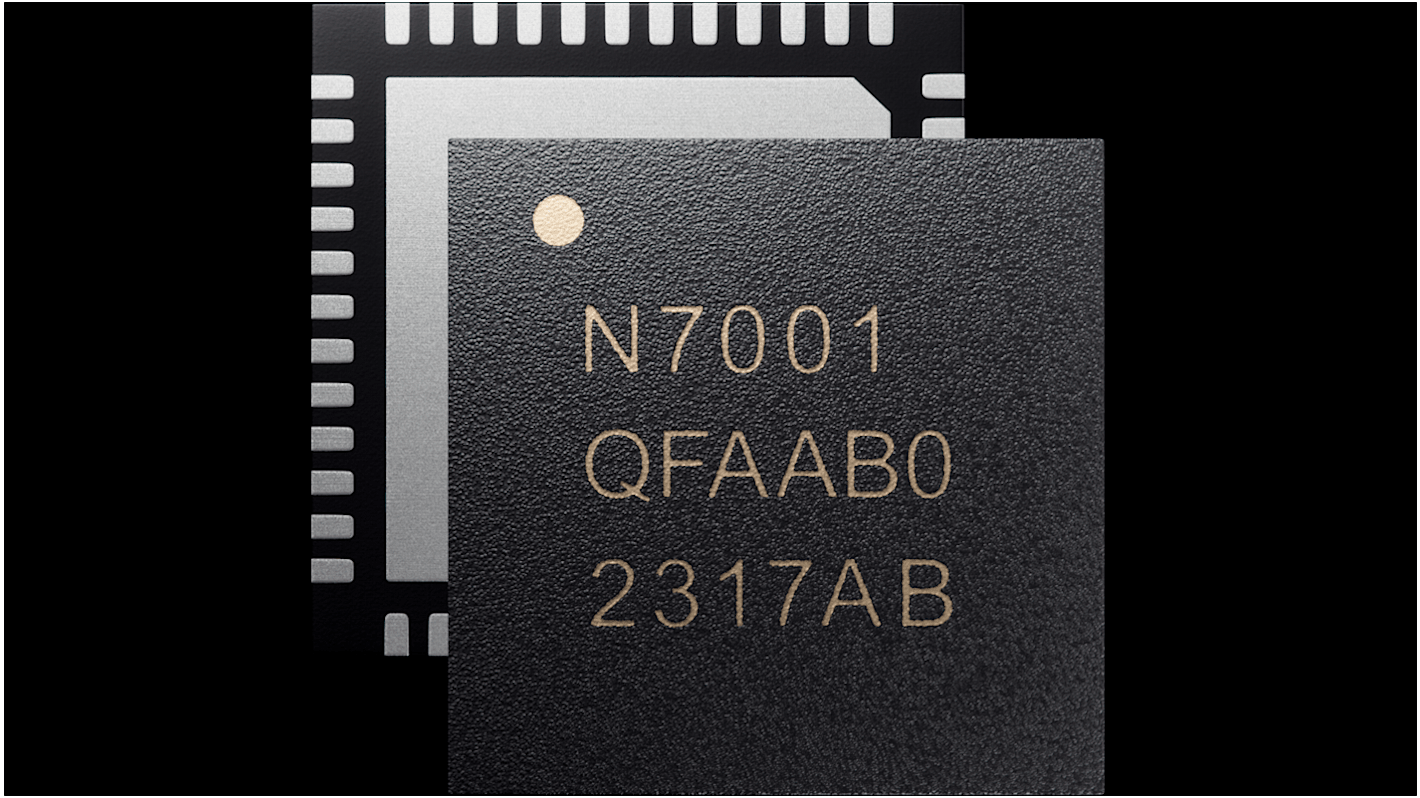

Image representative of range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
R 72,95
(exc. VAT)
R 83,89
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- 1,000 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | R 72.95 |
| 10 - 99 | R 71.13 |
| 100 - 249 | R 69.00 |
| 250 - 499 | R 66.24 |
| 500 + | R 63.59 |
*price indicative
- RS stock no.:
- 279-6403
- Mfr. Part No.:
- nRF7001-QFAA-R7
- Manufacturer:
- Nordic Semiconductor
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nordic Semiconductor | |
| Technology | WiFi | |
| Product Type | RF Transceiver | |
| Modulation Technique | QAM | |
| Package Type | QFN-48 | |
| Data Rate | 86Mbps | |
| Pin Count | 48 | |
| Mount Type | Surface | |
| Interface Type | SPI | |
| Operating Band 1 Frequency | 2.4GHz | |
| Minimum Supply Voltage | 2.9V | |
| Maximum Supply Voltage | 4.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series | nRF7001 | |
| Standards/Approvals | WPA2, Wi-Fi Certified 6, IEEE 802.11 b/g/n, WPA3, Wi-Fi Certified, IEEE 802.11 ax, Wi-Fi Enhanced Open, WPA-Personal and Enterprise | |
| Number of Operating Bands | 1 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nordic Semiconductor | ||
Technology WiFi | ||
Product Type RF Transceiver | ||
Modulation Technique QAM | ||
Package Type QFN-48 | ||
Data Rate 86Mbps | ||
Pin Count 48 | ||
Mount Type Surface | ||
Interface Type SPI | ||
Operating Band 1 Frequency 2.4GHz | ||
Minimum Supply Voltage 2.9V | ||
Maximum Supply Voltage 4.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series nRF7001 | ||
Standards/Approvals WPA2, Wi-Fi Certified 6, IEEE 802.11 b/g/n, WPA3, Wi-Fi Certified, IEEE 802.11 ax, Wi-Fi Enhanced Open, WPA-Personal and Enterprise | ||
Number of Operating Bands 1 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW
The Nordic Semiconductor wireless companion IC is featured with adding low-power Wi-Fi 6 capabilities to another System on Chip(SoC), Memory Protection Unit (MPU), or Microcontroller Unit (MCU) host. It is designed for IoT applications, and is Ideal for adding modern Wi-Fi 6 capabilities to existing Bluetooth Low Energy, Thread or Zigbee systems. It has 6x6 mm QFN48 package.
Supports IEEE 802.11 ax and earlier standards (IEEE 802.11 b/g/n)
Supports Target Wake Time (TWT), Orthogonal Frequency Division Multiple Access (OFDMA), Basic Service Set (BSS) Coloring
Supports Wi-Fi CERTIFIED 6 Wi-Fi CERTIFIED, Wi-Fi Enhanced Open
Supports WPA3, WPA2, WPA- Personal and Enterprise, Protected Management Frames
Supports WMM, WMM - Power Save, Wi-Fi Agile Multiband, Wi-Fi Direct
Maximum output power 21 dBm
Single-band 2.4 GHz
SPI or QSPI host Interface, 3-wire or 4-wire coexistence Interface
