Microchip MIC21LV33YML-TR 5 PWM Controller, 1 MHz 36V 32-Pin, VQFN
- RS stock no.:
- 242-5152
- Mfr. Part No.:
- MIC21LV33YML-TR
- Manufacturer:
- Microchip

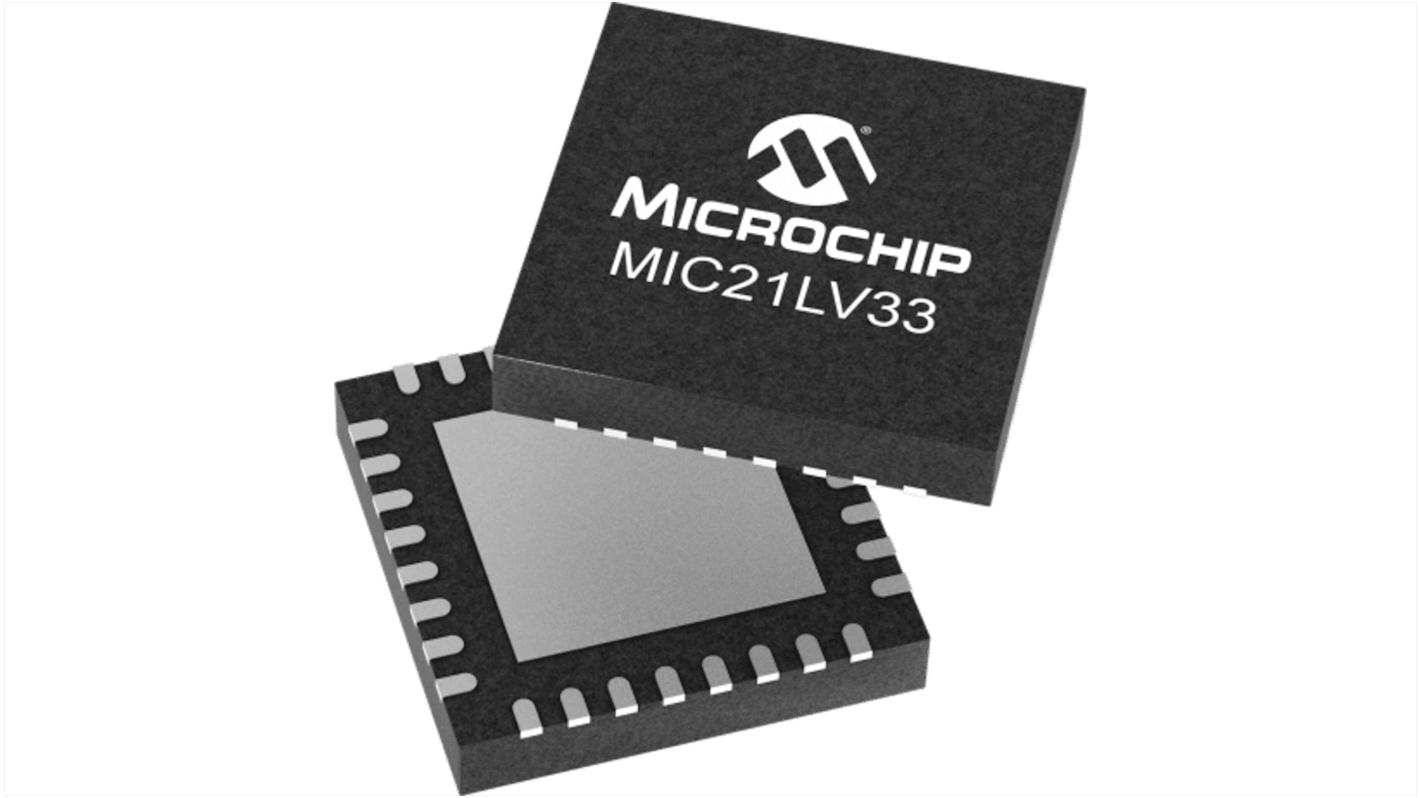

Image representative of range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
R 177,32
(exc. VAT)
R 203,92
(inc. VAT)
FREE delivery for orders over R 1,500.00
Last RS stock
- Final 135 unit(s), ready to ship from another location
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | R 35.464 | R 177.32 |
| 50 - 95 | R 34.578 | R 172.89 |
| 100 - 245 | R 33.54 | R 167.70 |
| 250 - 995 | R 32.198 | R 160.99 |
| 1000 + | R 30.91 | R 154.55 |
*price indicative
- RS stock no.:
- 242-5152
- Mfr. Part No.:
- MIC21LV33YML-TR
- Manufacturer:
- Microchip
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | PWM Controller | |
| Maximum Switching Frequency | 1MHz | |
| Start-up Supply Current | 0.1mA | |
| Supply Current | 5mA | |
| Output Current | 50A | |
| Mount Type | Surface | |
| Package Type | VQFN | |
| Minimum Supply Voltage | 4.5V | |
| Topology | Buck | |
| Pin Count | 32 | |
| Maximum Supply Voltage | 36V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Duty Cycle | 50% | |
| Maximum Operating Temperature | 125°C | |
| Series | MIC21LV33 | |
| Height | 0.9mm | |
| Standards/Approvals | RoHS | |
| Length | 5mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type PWM Controller | ||
Maximum Switching Frequency 1MHz | ||
Start-up Supply Current 0.1mA | ||
Supply Current 5mA | ||
Output Current 50A | ||
Mount Type Surface | ||
Package Type VQFN | ||
Minimum Supply Voltage 4.5V | ||
Topology Buck | ||
Pin Count 32 | ||
Maximum Supply Voltage 36V | ||
Minimum Operating Temperature -40°C | ||
Maximum Duty Cycle 50% | ||
Maximum Operating Temperature 125°C | ||
Series MIC21LV33 | ||
Height 0.9mm | ||
Standards/Approvals RoHS | ||
Length 5mm | ||
Automotive Standard No | ||
The Microchip MIC21LV33 is a constant on-time, dual phase synchronous buck controller featuring a unique adaptive ON-time control architecture with Hyper light Load® and phase shedding features. The MIC21LV33 operates over an input supply range from 4.5V to 36V and can be used to supply up to 50A of output current. The input voltage could be lowered to 2V provided that an external VDD of 5V is provided. The output voltage of the MIC21LV33 is adjustable down to 0.6V with a guaranteed accuracy of ±1% over the entire operating temperature.
Input down to 2V when VDD = 5V from external supply
Adjustable output voltage from 0.6V to 28V
0.6V internal reference with ±1% accuracy
±0.5% reference accuracy for -40°C to 105°C
