Norgren 34D Series Pressure Sensor, Transistor Output 0 bar, Relative Reading 400 bar
- RS stock no.:
- 212-9082
- Mfr. Part No.:
- 34D-P400G-DA1-AA
- Manufacturer:
- Norgren
Bulk discount available
Subtotal (1 unit)*
R 8 862,48
(exc. VAT)
R 10 191,85
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 8,862.48 |
| 5 + | R 8,640.92 |
*price indicative
- RS stock no.:
- 212-9082
- Mfr. Part No.:
- 34D-P400G-DA1-AA
- Manufacturer:
- Norgren
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Pressure Reading Type | Relative | |
| Product Type | Pressure Sensor | |
| Maximum Pressure Measurement | 400bar | |
| Minimum Pressure Measurement | 0bar | |
| Accuracy | ±0.5 % | |
| Output Type | Transistor | |
| Media Measured | Liquid, Gas | |
| Interface Type | IO-Link | |
| Terminal Type | M12 x 1 | |
| Response Time | 3ms | |
| Minimum Supply Voltage | 30V dc | |
| Series | 34D | |
| Maximum Supply Voltage | 30V dc | |
| Housing Material | Polybutylene Terephthalate-Fibreglass20, Polycarbonate, 316L Stainless Steel, Polycarbonate Fibreglass 30%, Polybutylene Terephthalate | |
| Standards/Approvals | EN 61000-6-2, EN 61000-6-3 | |
| Minimum Operating Temperature | -25°C | |
| IP Rating | IP67 | |
| Maximum Operating Temperature | 80°C | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Pressure Reading Type Relative | ||
Product Type Pressure Sensor | ||
Maximum Pressure Measurement 400bar | ||
Minimum Pressure Measurement 0bar | ||
Accuracy ±0.5 % | ||
Output Type Transistor | ||
Media Measured Liquid, Gas | ||
Interface Type IO-Link | ||
Terminal Type M12 x 1 | ||
Response Time 3ms | ||
Minimum Supply Voltage 30V dc | ||
Series 34D | ||
Maximum Supply Voltage 30V dc | ||
Housing Material Polybutylene Terephthalate-Fibreglass20, Polycarbonate, 316L Stainless Steel, Polycarbonate Fibreglass 30%, Polybutylene Terephthalate | ||
Standards/Approvals EN 61000-6-2, EN 61000-6-3 | ||
Minimum Operating Temperature -25°C | ||
IP Rating IP67 | ||
Maximum Operating Temperature 80°C | ||

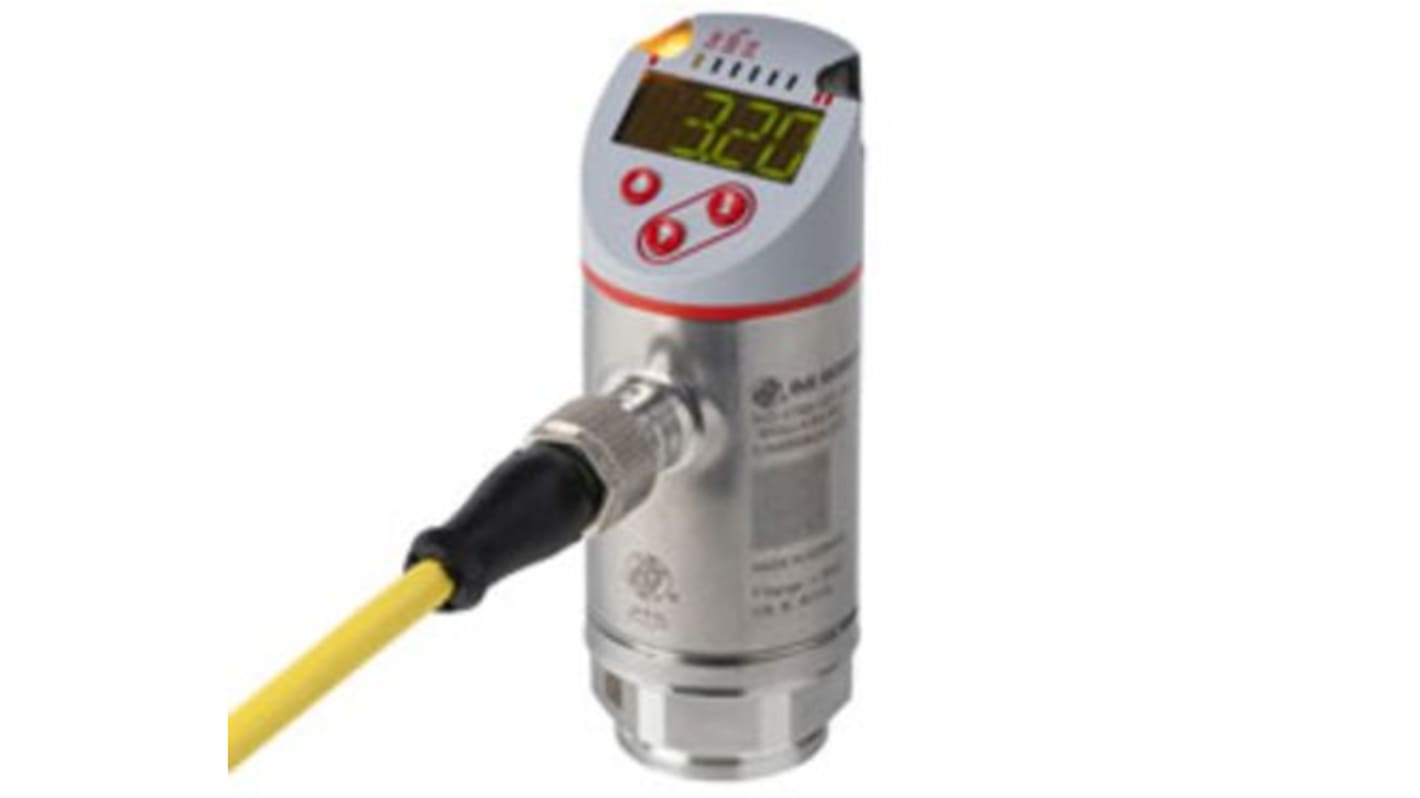

IMI Norgren 34D Series Pressure Sensor, G1/4 port size
For accurate and dependable pressure sensing use the IMI Norgren 34D pneumatic electronic pressure sensor.
This easy-to-use device features a multi-colour 4-digit display and adapter, with configurable colour change, offering excellent readability. The upper body is also rotatable to 345° so that the display can be easily aligned during installation. The housing is made of tough stainless steel and it has high shock and vibration resistance, making this unit ideally suited for use in challenging industrial and process control environments. It can be used with neutral and aggressive gaseous and liquid fluids, ensuring versatility for your application. The 34D model also has a fast switching time of
< 3 m/s.
Features and Benefits:
• High overpressure resistance
• G1/4 port size, or flange mounting with adapter
• IP67 rating ensures that this unit is fully protected against dust ingress and can withstand temporary immersion in water
• Output signal is 1 x PNP / 1 x analogue
• Has a wide ambient temperature range of -25°C to 80°C
Pressure range = 0 to 400bar(0 to 5800 psi)
