KEMET Power Factor Correction Capacitor 27.4 μF 5 kvar 3
- RS stock no.:
- 136-5115
- Mfr. Part No.:
- C9TS6MD5274AARX
- Manufacturer:
- KEMET

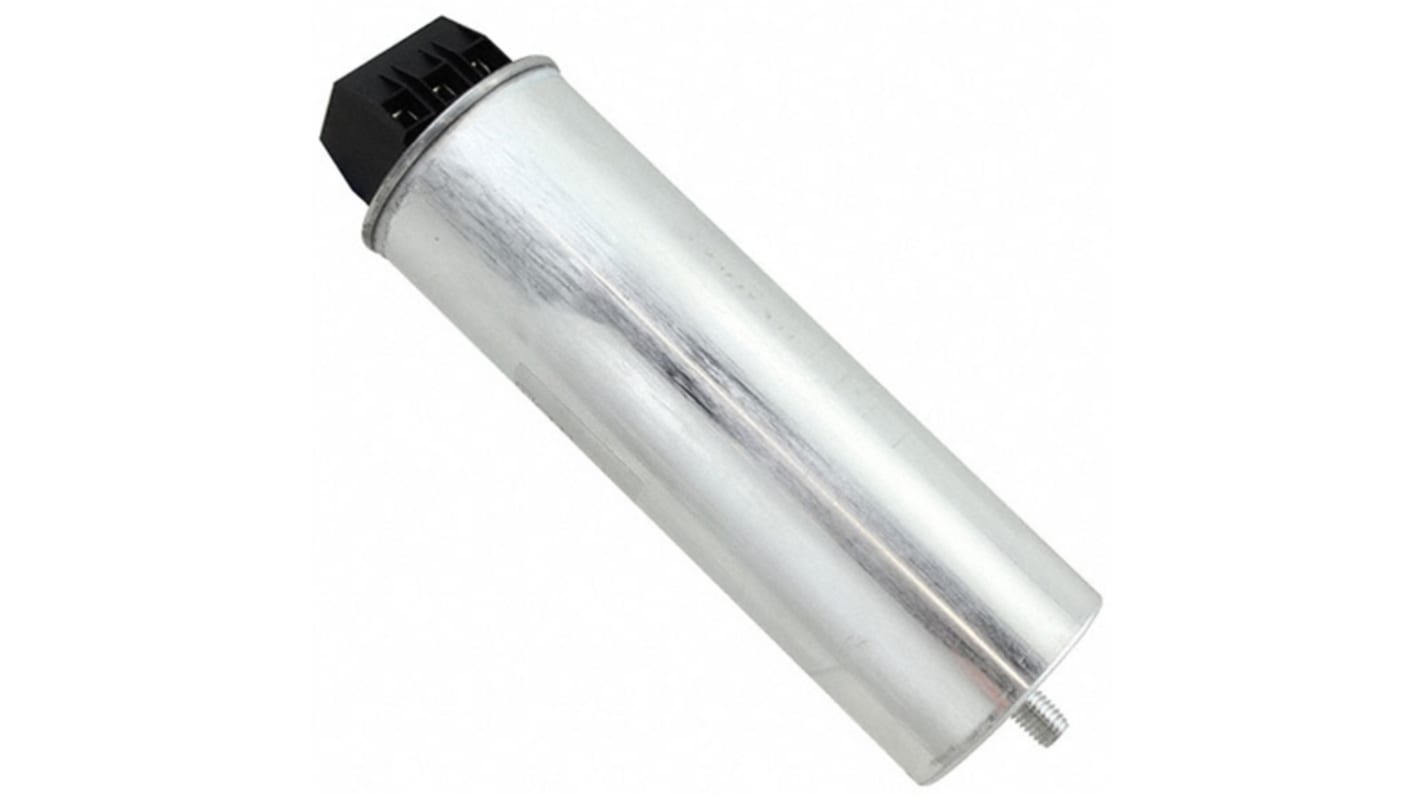

Image representative of range
Bulk discount available
Subtotal (1 box of 12 units)*
R 14 295,096
(exc. VAT)
R 16 439,364
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- 24 unit(s) shipping from 21 August 2026
- Plus 24 unit(s) shipping from 06 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 12 - 12 | R 1,191.258 | R 14,295.10 |
| 24 + | R 1,161.477 | R 13,937.72 |
*price indicative
- RS stock no.:
- 136-5115
- Mfr. Part No.:
- C9TS6MD5274AARX
- Manufacturer:
- KEMET
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Product Type | Power Factor Correction Capacitor | |
| Rated AC Voltage | 440V ac | |
| Dielectric | Polypropylene | |
| Diameter | 85mm | |
| Standards/Approvals | IEC 60831-1/2, IEC 60831-1, UL 810, RoHS, IEC 831-1/2, VDE-REG.Nr.F064 | |
| kVAr 50Hz | 5kvar | |
| Height | 160mm | |
| Tolerance | +10 % | |
| Capacitance | 27.4μF | |
| Minimum Operating Temperature | -25°C | |
| Mount Type | Stud Mount | |
| Number of Phases | 3 | |
| Series | C9T | |
| Width | 75mm | |
| Maximum Operating Temperature | 55°C | |
| Length | 160mm | |
| Terminal Type | Screw Clamp | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Product Type Power Factor Correction Capacitor | ||
Rated AC Voltage 440V ac | ||
Dielectric Polypropylene | ||
Diameter 85mm | ||
Standards/Approvals IEC 60831-1/2, IEC 60831-1, UL 810, RoHS, IEC 831-1/2, VDE-REG.Nr.F064 | ||
kVAr 50Hz 5kvar | ||
Height 160mm | ||
Tolerance +10 % | ||
Capacitance 27.4μF | ||
Minimum Operating Temperature -25°C | ||
Mount Type Stud Mount | ||
Number of Phases 3 | ||
Series C9T | ||
Width 75mm | ||
Maximum Operating Temperature 55°C | ||
Length 160mm | ||
Terminal Type Screw Clamp | ||
- COO (Country of Origin):
- BG
KEMET C9T Series PFC Capacitors
KEMET C9T aluminum can capacitors are 3 phase capacitors for power factor correction (PFC). KEMET C9T 415/440 V ac rated voltage capacitors feature polypropylene metallised film and include an overpressure safety device. C9T PFC capacitors are also available with Delta connections. These KEMET capacitors offer high capacitance density and a long lifetime. 27.4 μF to 154μF capacitance value, 415 VAC or 440 VAC voltage rating, 9 to 45A rated current.
Features
Polypropylene metallised film with cylindrical aluminium can type
Overpressure safety device
High capacitance density
Available with Delta connections
Applications
Power Factor Correction
