Schneider Electric Power Factor Correction Capacitor 25 kvar
- RS stock no.:
- 212-120
- Mfr. Part No.:
- LVR14250A40T
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
R 25 329,03
(exc. VAT)
R 29 128,38
(inc. VAT)
FREE delivery for orders over R 1,500.00
Stocked by manufacturer
- Ready to ship from 16 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 25,329.03 |
*price indicative
- RS stock no.:
- 212-120
- Mfr. Part No.:
- LVR14250A40T
- Manufacturer:
- Schneider Electric
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Power Factor Correction Capacitor | |
| Rated AC Voltage | 400V ac | |
| Dielectric | 4 kV 50 Hz 1 minute | |
| Standards/Approvals | IEC 60068 | |
| Weight | 22kg | |
| Length | 240mm | |
| Series | PowerLogic | |
| Width | 160mm | |
| Maximum Operating Temperature | 55°C | |
| Minimum Operating Temperature | 0°C | |
| kVAr 50Hz | 25kvar | |
| Tolerance | -5 5 % | |
| Height | 220mm | |
| Terminal Type | Pad Terminal | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Power Factor Correction Capacitor | ||
Rated AC Voltage 400V ac | ||
Dielectric 4 kV 50 Hz 1 minute | ||
Standards/Approvals IEC 60068 | ||
Weight 22kg | ||
Length 240mm | ||
Series PowerLogic | ||
Width 160mm | ||
Maximum Operating Temperature 55°C | ||
Minimum Operating Temperature 0°C | ||
kVAr 50Hz 25kvar | ||
Tolerance -5 5 % | ||
Height 220mm | ||
Terminal Type Pad Terminal | ||
- COO (Country of Origin):
- PL

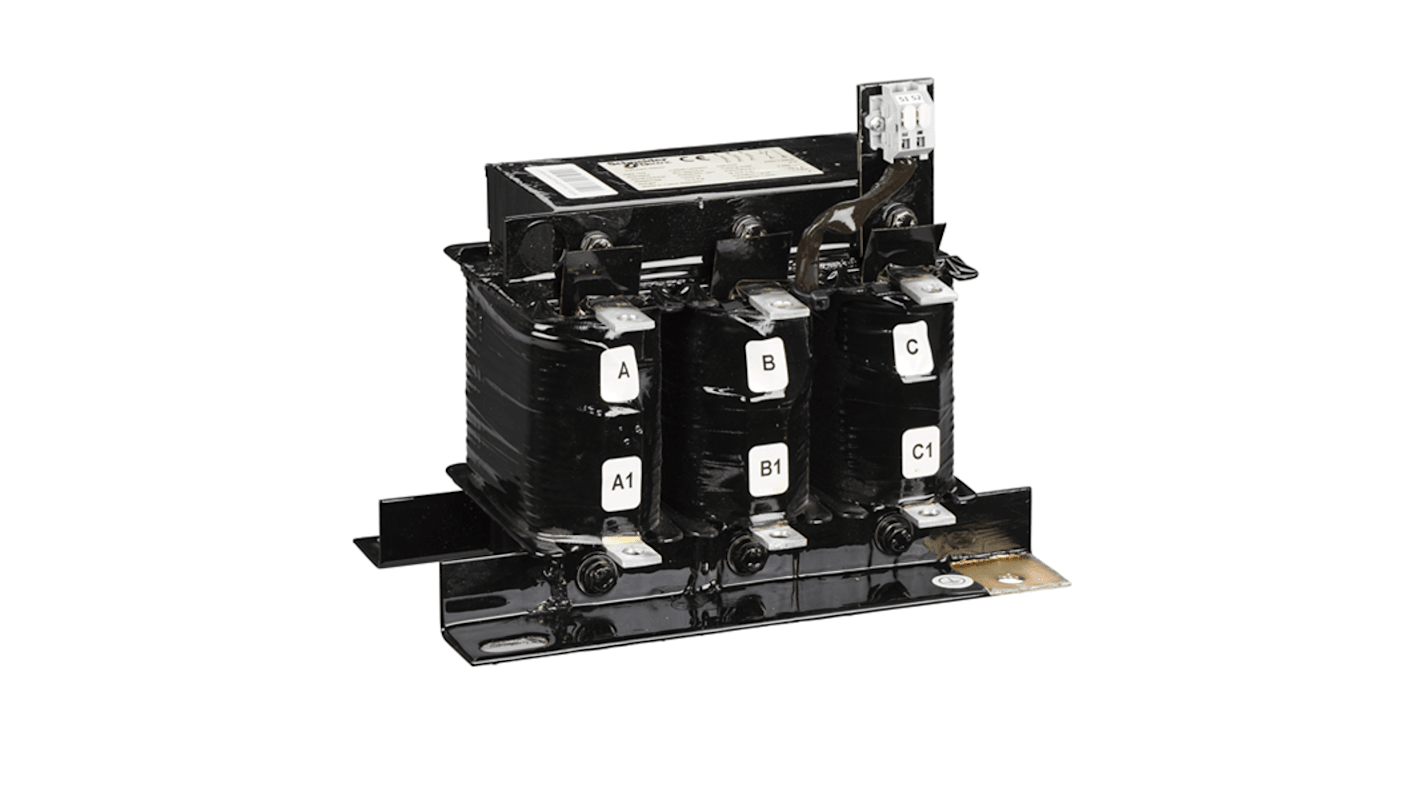

The Schneider Electric Detuned Reactor are designed to protect the capacitor by preventing the amplification of the harmonics present in the system. Capacitors and Reactors are configured in Series resonant circuit. Tuned so that the series resonant frequency is below the lowest harmonic frequency present in the system. This reactor is rated for 25 kVar output power with 2.7/135 Hz tuning order at 400V AC at 50 Hz.
Relative impedance 14 %
Meet the standards IEC 60068
