Wurth Elektronik 330 μF Through Hole Polymer Capacitor, 16V dc
- RS stock no.:
- 839-2146
- Mfr. Part No.:
- 870025374005
- Manufacturer:
- Wurth Elektronik

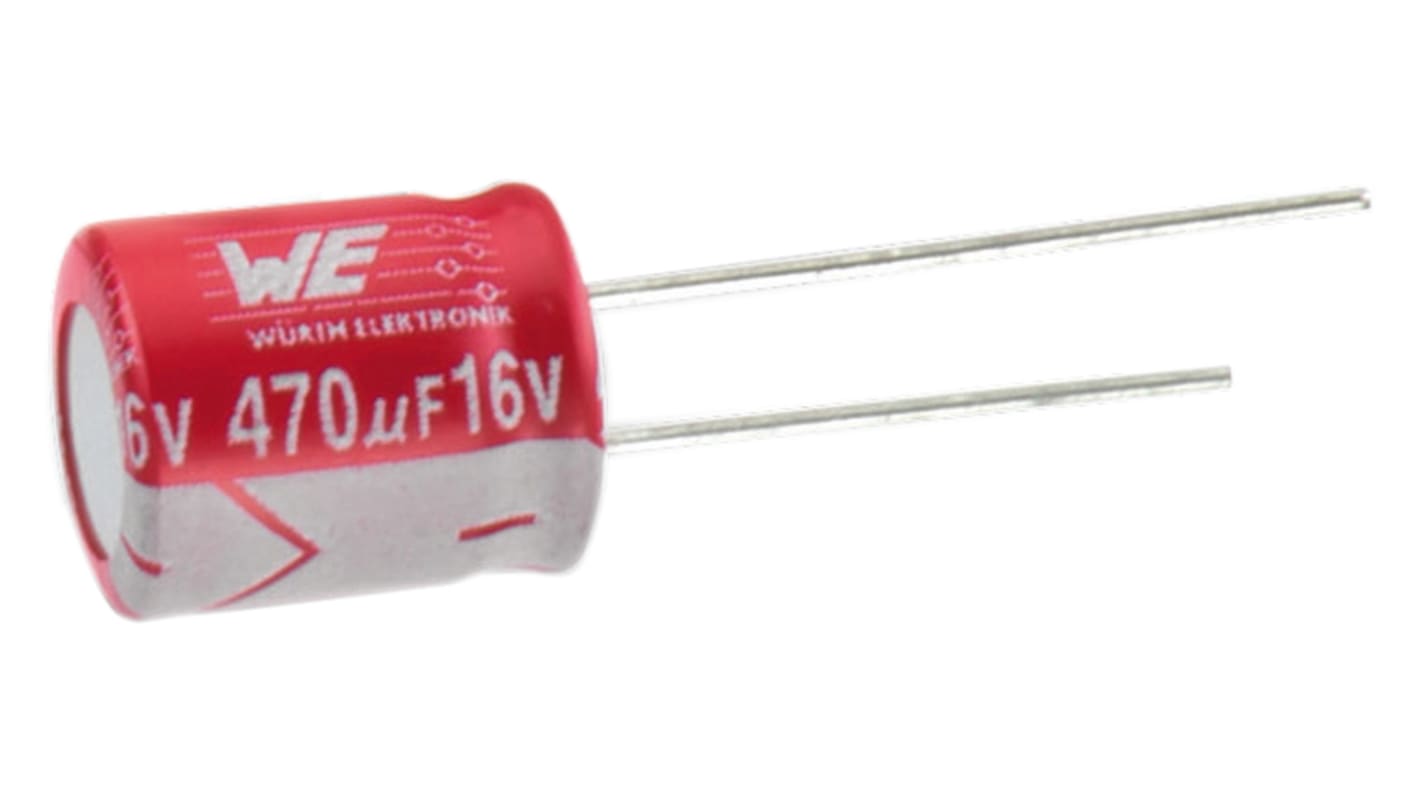

Image representative of range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
R 85,94
(exc. VAT)
R 98,83
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- 50 unit(s) shipping from 14 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | R 17.188 | R 85.94 |
| 25 - 45 | R 16.758 | R 83.79 |
| 50 - 95 | R 16.256 | R 81.28 |
| 100 - 495 | R 15.606 | R 78.03 |
| 500 + | R 14.982 | R 74.91 |
*price indicative
- RS stock no.:
- 839-2146
- Mfr. Part No.:
- 870025374005
- Manufacturer:
- Wurth Elektronik
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Polymer Capacitor | |
| Technology | Polymer | |
| Capacitance | 330μF | |
| Voltage | 16V dc | |
| Mount Type | Through Hole | |
| Package/Case | 800 | |
| Lead Pitch | 3.5mm | |
| Tolerance | ±20 % | |
| Maximum Operating Temperature | 105°C | |
| Dimensions | 8 (Dia) x 8 mm | |
| Series | WCAP-PTG5 | |
| Length | 8mm | |
| Height | 8mm | |
| Diameter | 8mm | |
| Leakage Current | 528μA | |
| Minimum Operating Temperature | -55°C | |
| Automotive Standard | No | |
| Dissipation Factor | 8% | |
| Lifetime | 2000 h | |
| Ripple Current | 4.5A | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Polymer Capacitor | ||
Technology Polymer | ||
Capacitance 330μF | ||
Voltage 16V dc | ||
Mount Type Through Hole | ||
Package/Case 800 | ||
Lead Pitch 3.5mm | ||
Tolerance ±20 % | ||
Maximum Operating Temperature 105°C | ||
Dimensions 8 (Dia) x 8 mm | ||
Series WCAP-PTG5 | ||
Length 8mm | ||
Height 8mm | ||
Diameter 8mm | ||
Leakage Current 528μA | ||
Minimum Operating Temperature -55°C | ||
Automotive Standard No | ||
Dissipation Factor 8% | ||
Lifetime 2000 h | ||
Ripple Current 4.5A | ||
Wurth Elektronik General Purpose WCAP-PTG5 Capacitor Series 105°C
Aluminium Polymer capacitors contain solid conductive polymer instead of wet electrolytic thus the benefits are:
High permissible ripple current due to lower ESR at high frequency range
Higher long term stability and expected life
No dry out phenomenon due to solid conductive polymer
Features and Benefits
• Low ESR at high frequency range
• High permissible ripple current
• Load life of 2000 h @ +105°C
• Operating temperature: -55°C to +105°C
• Wave soldering is recommended
Solid Radial 105°C
