Nichicon 330 μF Surface Mount Polymer Capacitor, 35 V
- RS stock no.:
- 243-7206
- Mfr. Part No.:
- PCR1V331MCL1GS
- Manufacturer:
- Nichicon

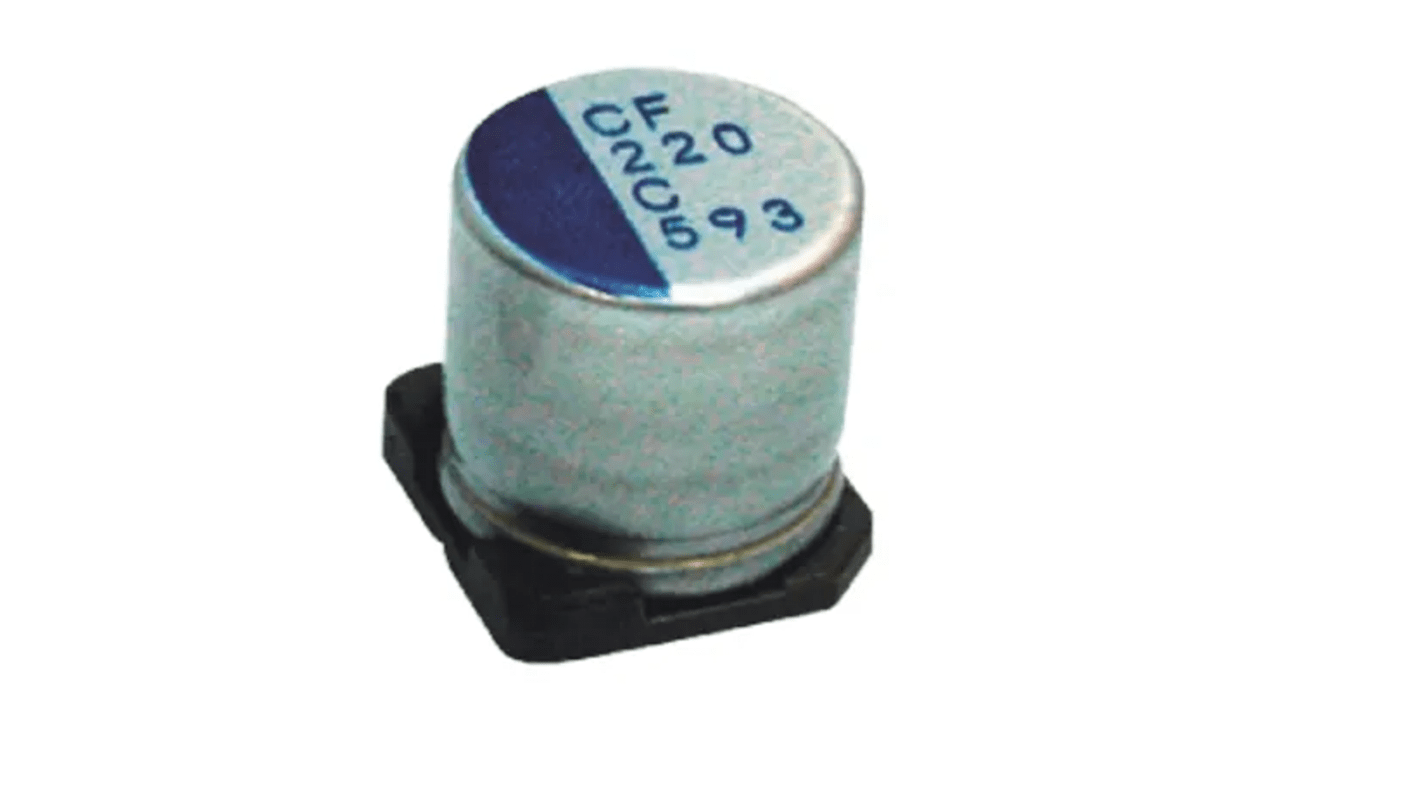

Image representative of range
Subtotal (1 reel of 400 units)*
R 12 894,80
(exc. VAT)
R 14 829,20
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 400 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 400 + | R 32.237 | R 12,894.80 |
*price indicative
- RS stock no.:
- 243-7206
- Mfr. Part No.:
- PCR1V331MCL1GS
- Manufacturer:
- Nichicon
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Technology | Polymer, Electrolytic | |
| Product Type | Polymer Capacitor | |
| Capacitance | 330μF | |
| Voltage | 35 V | |
| Mount Type | Surface Mount | |
| Lead Pitch | 4.6mm | |
| Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Dimensions | 10 x 12.7 mm | |
| Series | PCR | |
| Length | 12.6mm | |
| Depth | 10.3mm | |
| Height | 10.3mm | |
| Electrolyte Type | Solid | |
| Lifetime | 4000 h | |
| Ripple Current | 3900mA | |
| Leakage Current | 346μA | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 10 mm | |
| Dissipation Factor | 0.08% | |
| Automotive Standard | AEC-Q200 | |
| Select all | ||
|---|---|---|
Brand Nichicon | ||
Technology Polymer, Electrolytic | ||
Product Type Polymer Capacitor | ||
Capacitance 330μF | ||
Voltage 35 V | ||
Mount Type Surface Mount | ||
Lead Pitch 4.6mm | ||
Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Dimensions 10 x 12.7 mm | ||
Series PCR | ||
Length 12.6mm | ||
Depth 10.3mm | ||
Height 10.3mm | ||
Electrolyte Type Solid | ||
Lifetime 4000 h | ||
Ripple Current 3900mA | ||
Leakage Current 346μA | ||
Minimum Operating Temperature -55°C | ||
Diameter 10 mm | ||
Dissipation Factor 0.08% | ||
Automotive Standard AEC-Q200 | ||
- COO (Country of Origin):
- JP
The Nichicon's PCR series is chip type polymer capacitor have high reliability, low ESR and provides high ripple current, high voltage.
High reliability, High voltage (to 80V)
Low ESR, High ripple current
Long life of 4000 hours at 125°C
SMD type : Lead free reflow soldering condition at 260°C peak complete correspondence
Compliant to the RoHS directive (2011/65/EU,(EU)2015/863)
ESR after
