MPN

Nichicon 100 μF Surface Polymer Capacitor, 50V dc

Name: Nichicon 100 μF Surface Polymer Capacitor, 50V dc
Brand: Nichicon
SKU: 187-2434
Price: 25.90 ZAR
Availability: BackOrder

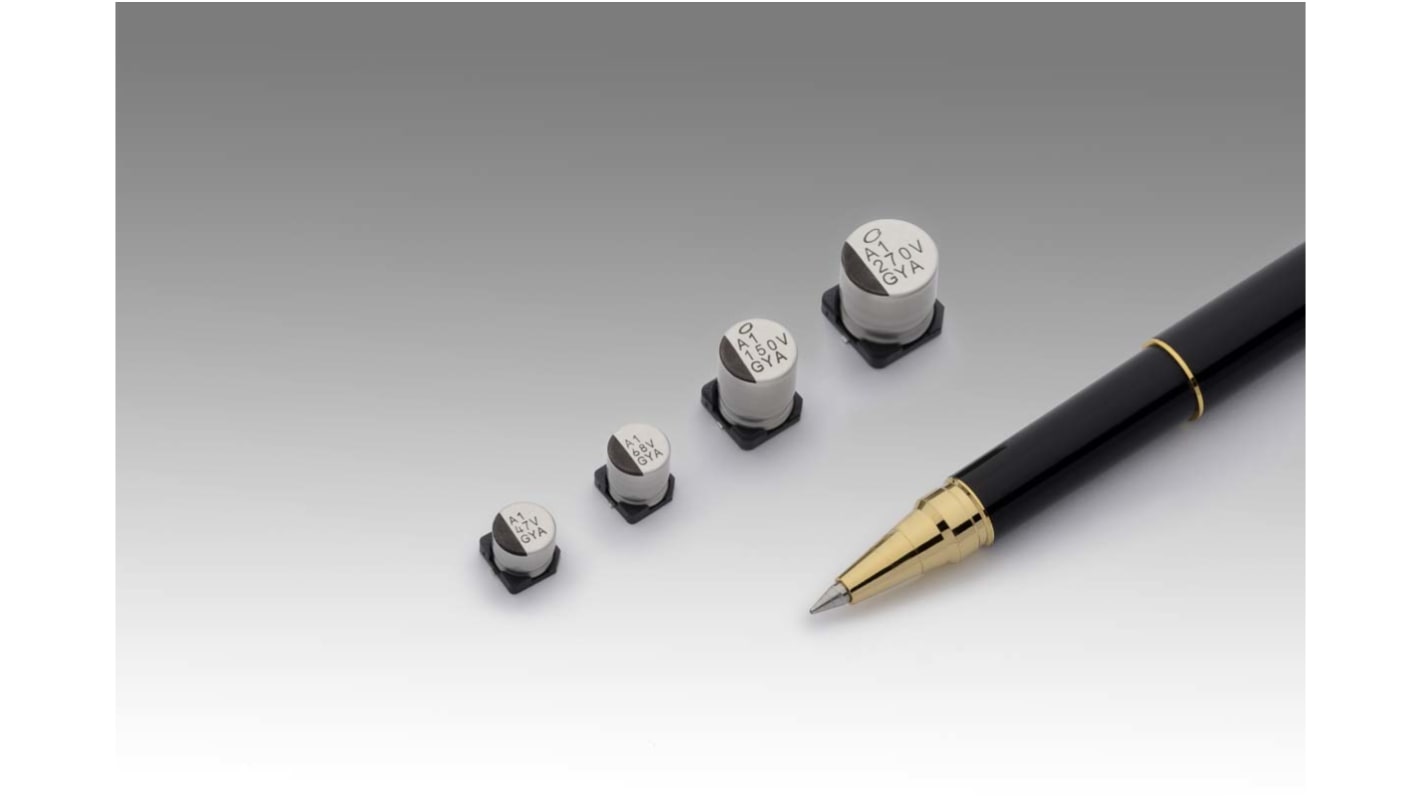

Image representative of range

Subtotal (1 pack of 5 units)*

R 112,60

(exc. VAT)

R 129,50

(inc. VAT)

Temporarily out of stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 +	R 22.52	R 112.60

*price indicative

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Nichicon
	Product Type	Polymer Capacitor
	Technology	Hybrid
	Capacitance	100μF
	Voltage	50V dc
	Mount Type	Surface
	Polarity	Polar
	Lead Pitch	4.5mm
	Tolerance	±20 %
	Maximum Operating Temperature	125°C
	Dimensions	10.3 x 10.3 x 10.3 mm
	Length	10.3mm
	Series	YA
	Depth	10.3mm
	Height	10.3mm
	Electrolyte Type	Hybrid
	Minimum Operating Temperature	-55°C
	Dissipation Factor	0.1%
	Automotive Standard	No
	Lifetime	4000 h
	Diameter	10mm
	Leakage Current	50μA
	Ripple Current	1.6A

	Select all
	Brand Nichicon
	Product Type Polymer Capacitor
	Technology Hybrid
	Capacitance 100μF
	Voltage 50V dc
	Mount Type Surface
	Polarity Polar
	Lead Pitch 4.5mm
	Tolerance ±20 %
	Maximum Operating Temperature 125°C
	Dimensions 10.3 x 10.3 x 10.3 mm
	Length 10.3mm
	Series YA
	Depth 10.3mm
	Height 10.3mm
	Electrolyte Type Hybrid
	Minimum Operating Temperature -55°C
	Dissipation Factor 0.1%
	Automotive Standard No
	Lifetime 4000 h
	Diameter 10mm
	Leakage Current 50μA
	Ripple Current 1.6A

High Reliability, Low ESR,High ripple current

Long life of 4000 hours at 125°C
