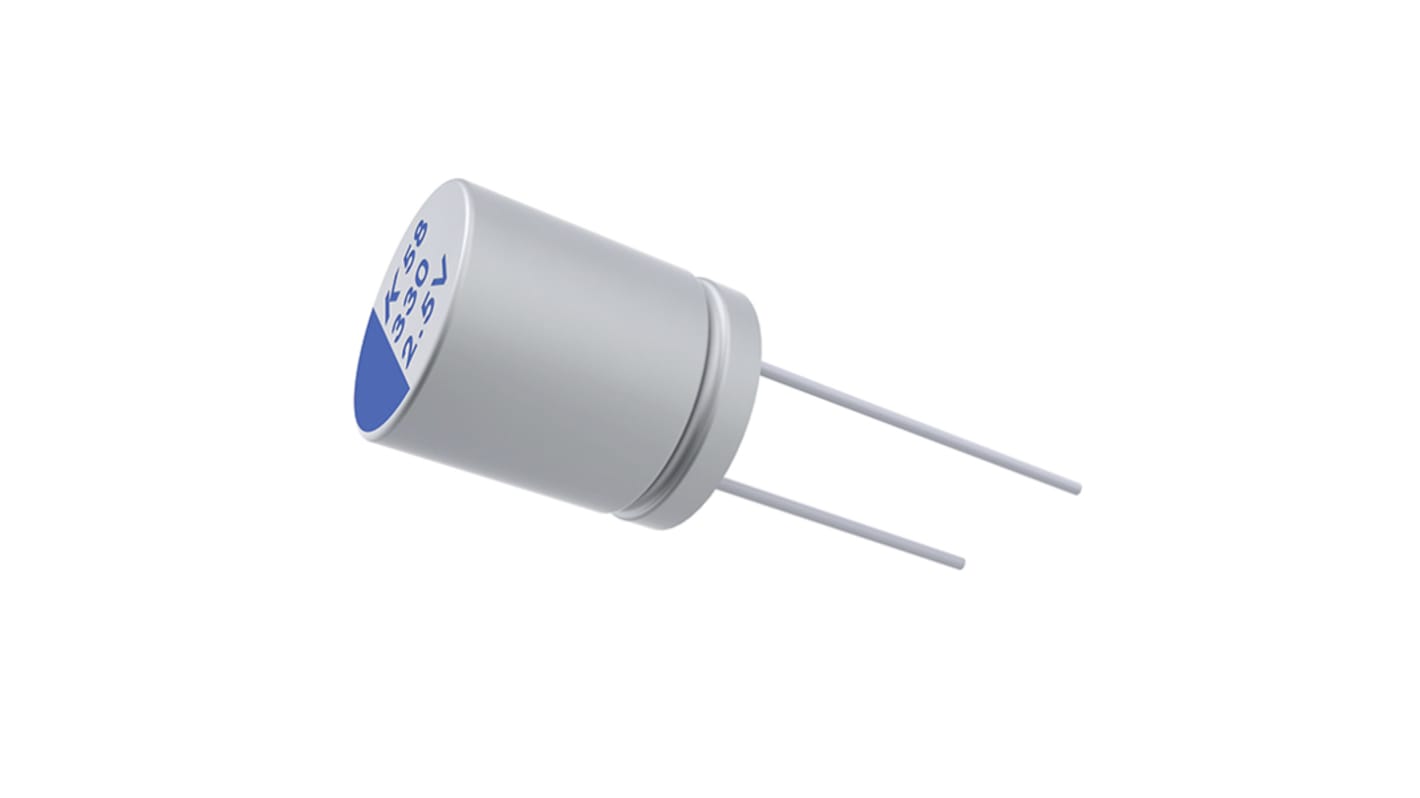

KEMET 220μF Through Hole Polymer Capacitor, 16V dc
- RS stock no.:
- 179-7231
- Mfr. Part No.:
- A758KK227M1CEAE014
- Manufacturer:
- KEMET
Bulk discount available
Subtotal (1 pack of 10 units)*
R 117,02
(exc. VAT)
R 134,57
(inc. VAT)
FREE delivery for orders over R 1,500.00
Last RS stock
- Final 4,640 unit(s), ready to ship from another location
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | R 11.702 | R 117.02 |
| 50 - 90 | R 11.409 | R 114.09 |
| 100 - 240 | R 11.067 | R 110.67 |
| 250 - 490 | R 10.624 | R 106.24 |
| 500 + | R 10.199 | R 101.99 |
*price indicative
- RS stock no.:
- 179-7231
- Mfr. Part No.:
- A758KK227M1CEAE014
- Manufacturer:
- KEMET
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Technology | Electrolytic | |
| Capacitance | 220µF | |
| Dielectric Material Family | Aluminium | |
| Voltage | 16V dc | |
| Mounting Type | Through Hole | |
| Equivalent Series Resistance | 14mΩ | |
| Lead Pitch | 3.5mm | |
| Tolerance | ±20% | |
| Height | 8mm | |
| Maximum Operating Temperature | +105°C | |
| Dimensions | 8 (Dia) x 8mm | |
| Series | A758 | |
| Electrolyte Type | Solid | |
| Polarised | Polar | |
| Lifetime | 5000h | |
| Diameter | 8mm | |
| Dissipation Factor | 10% | |
| Minimum Operating Temperature | -55°C | |
| Ripple Current | 4.8A | |
| Leakage Current | 528 μA | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Technology Electrolytic | ||
Capacitance 220µF | ||
Dielectric Material Family Aluminium | ||
Voltage 16V dc | ||
Mounting Type Through Hole | ||
Equivalent Series Resistance 14mΩ | ||
Lead Pitch 3.5mm | ||
Tolerance ±20% | ||
Height 8mm | ||
Maximum Operating Temperature +105°C | ||
Dimensions 8 (Dia) x 8mm | ||
Series A758 | ||
Electrolyte Type Solid | ||
Polarised Polar | ||
Lifetime 5000h | ||
Diameter 8mm | ||
Dissipation Factor 10% | ||
Minimum Operating Temperature -55°C | ||
Ripple Current 4.8A | ||
Leakage Current 528 μA | ||
- COO (Country of Origin):
- CN
KEMET’s A758 Single-Ended Conductive Polymer Aluminum Solid Electrolytic Capacitors offer longer life and greater stability across a wide range of temperatures. The A758 highly conductive solid polymer electrolyte eliminates the risk of explosion from drying out and due to its low ESR properties, is able to withstand higher ripple currents during normal operation. The A758 is ideally suited for industrial and commercial applications.
Applications
Typical applications include mobile phone chargers,
adapters (laptop power supplies) and medical equipment
Benefits
Through-hole form factor
Miniature
Low impedance
High ripple current
Long life
105°C/5,000 hours
Typical applications include mobile phone chargers,
adapters (laptop power supplies) and medical equipment
Benefits
Through-hole form factor
Miniature
Low impedance
High ripple current
Long life
105°C/5,000 hours
