KEMET 1 mF Through Hole Polymer Capacitor, 16V dc
- RS stock no.:
- 179-7198
- Mfr. Part No.:
- A755MS108M1CAAE012
- Manufacturer:
- KEMET

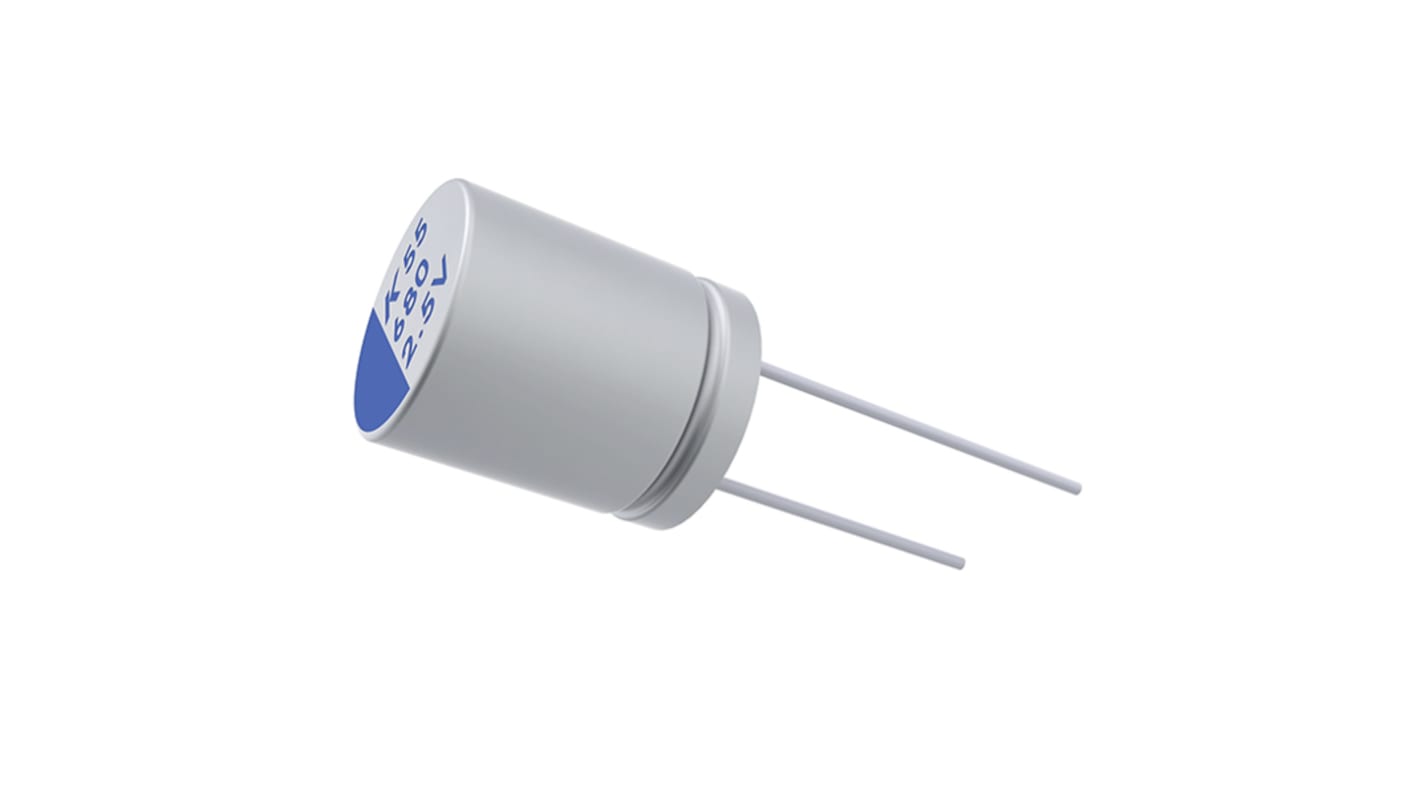

Image representative of range
Bulk discount available
Subtotal (1 bag of 250 units)*
R 2 903,25
(exc. VAT)
R 3 338,75
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 250 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 250 - 250 | R 11.613 | R 2,903.25 |
| 500 + | R 11.323 | R 2,830.75 |
*price indicative
- RS stock no.:
- 179-7198
- Mfr. Part No.:
- A755MS108M1CAAE012
- Manufacturer:
- KEMET
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Product Type | Polymer Capacitor | |
| Technology | Electrolytic | |
| Capacitance | 1mF | |
| Voltage | 16V dc | |
| Mount Type | Through Hole | |
| Polarity | Polar | |
| Lead Pitch | 5mm | |
| Tolerance | ±20 % | |
| Maximum Operating Temperature | 105°C | |
| Dimensions | 10 (Dia) x 12 mm | |
| Series | A755 | |
| Height | 12mm | |
| Length | 31mm | |
| Electrolyte Type | Solid | |
| Minimum Operating Temperature | -55°C | |
| Automotive Standard | No | |
| Lifetime | 5000 h | |
| Diameter | 10mm | |
| Leakage Current | 2.4mA | |
| Ripple Current | 5.25A | |
| Dissipation Factor | 0.1% | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Product Type Polymer Capacitor | ||
Technology Electrolytic | ||
Capacitance 1mF | ||
Voltage 16V dc | ||
Mount Type Through Hole | ||
Polarity Polar | ||
Lead Pitch 5mm | ||
Tolerance ±20 % | ||
Maximum Operating Temperature 105°C | ||
Dimensions 10 (Dia) x 12 mm | ||
Series A755 | ||
Height 12mm | ||
Length 31mm | ||
Electrolyte Type Solid | ||
Minimum Operating Temperature -55°C | ||
Automotive Standard No | ||
Lifetime 5000 h | ||
Diameter 10mm | ||
Leakage Current 2.4mA | ||
Ripple Current 5.25A | ||
Dissipation Factor 0.1% | ||
- COO (Country of Origin):
- CN
KEMET’s A755 Single-Ended Conductive Polymer Aluminum Solid Electrolytic Capacitors offer longer life and greater stability across a wide range of temperatures. The A755 highly conductive solid polymer electrolyte eliminates the risk of explosion from drying out and due to its low ESR properties, is able to withstand higher ripple currents during normal operation. The A755 is ideally suited for industrial and commercial applications.
Applications
Typical applications include LED driver power supplies,
adapters (laptop power supplies) and medical equipment.
Benefits
Through-hole form factor
Low impedance
High ripple current
Long life
105°C/5,000 hours
