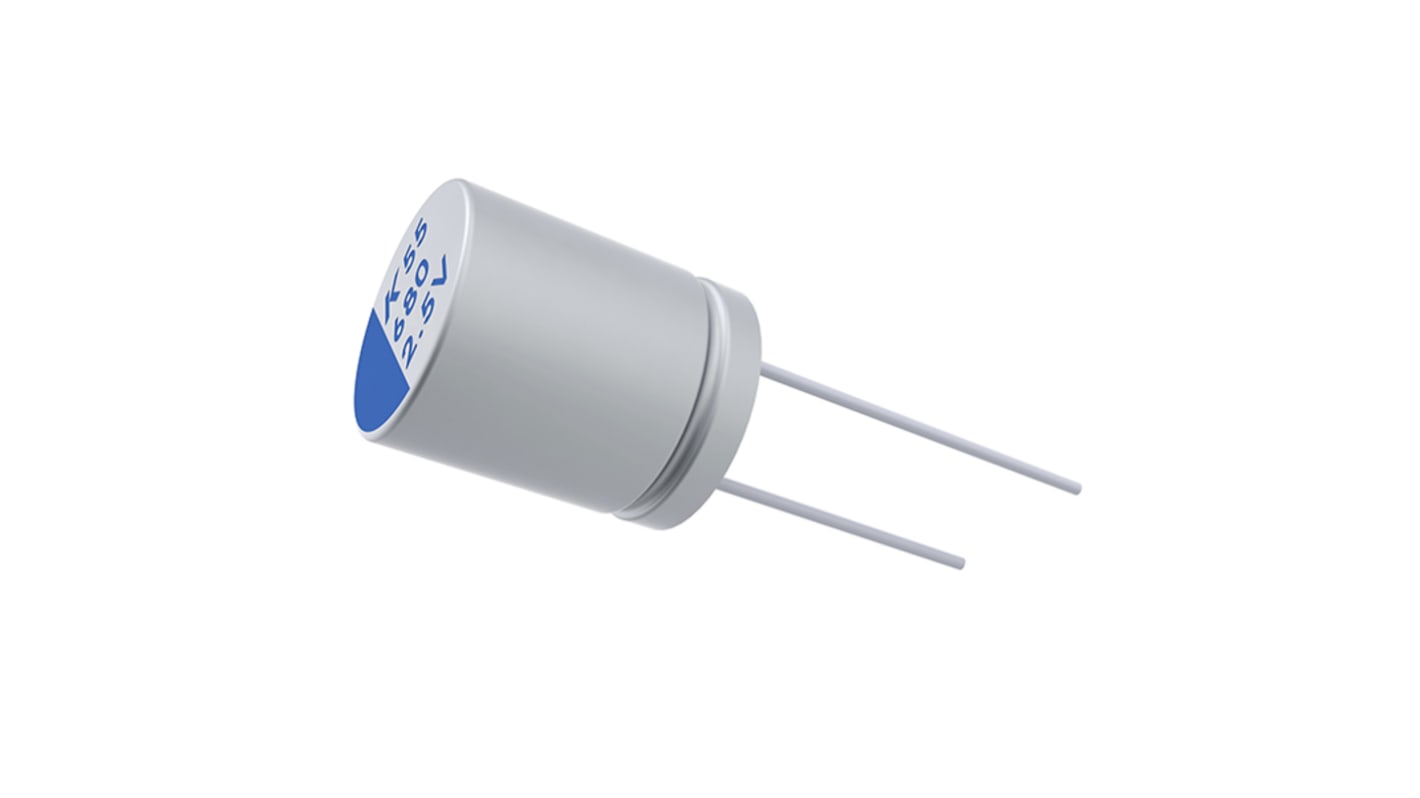

KEMET 1 mF Through Hole Polymer Capacitor, 10V dc
- RS stock no.:
- 173-9279
- Mfr. Part No.:
- A755MS108M1AAAE013
- Manufacturer:
- KEMET
Image representative of range
Bulk discount available
Subtotal (1 bag of 250 units)*
R 2 074,75
(exc. VAT)
R 2 386,00
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 250 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 250 - 1000 | R 8.299 | R 2,074.75 |
| 1250 - 2250 | R 8.092 | R 2,023.00 |
| 2500 - 6000 | R 7.849 | R 1,962.25 |
| 6250 - 12250 | R 7.535 | R 1,883.75 |
| 12500 + | R 7.234 | R 1,808.50 |
*price indicative
- RS stock no.:
- 173-9279
- Mfr. Part No.:
- A755MS108M1AAAE013
- Manufacturer:
- KEMET
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Product Type | Polymer Capacitor | |
| Technology | Electrolytic | |
| Capacitance | 1mF | |
| Voltage | 10V dc | |
| Mount Type | Through Hole | |
| Polarity | Polar | |
| Lead Pitch | 5mm | |
| Tolerance | ±20 % | |
| Maximum Operating Temperature | 105°C | |
| Dimensions | 10 (Dia) x 12 mm | |
| Length | 31mm | |
| Height | 12mm | |
| Series | A755 | |
| Electrolyte Type | Solid | |
| Leakage Current | 1.5mA | |
| Minimum Operating Temperature | -55°C | |
| Ripple Current | 5.1A | |
| Diameter | 10mm | |
| Lifetime | 5000 h | |
| Dissipation Factor | 10% | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Product Type Polymer Capacitor | ||
Technology Electrolytic | ||
Capacitance 1mF | ||
Voltage 10V dc | ||
Mount Type Through Hole | ||
Polarity Polar | ||
Lead Pitch 5mm | ||
Tolerance ±20 % | ||
Maximum Operating Temperature 105°C | ||
Dimensions 10 (Dia) x 12 mm | ||
Length 31mm | ||
Height 12mm | ||
Series A755 | ||
Electrolyte Type Solid | ||
Leakage Current 1.5mA | ||
Minimum Operating Temperature -55°C | ||
Ripple Current 5.1A | ||
Diameter 10mm | ||
Lifetime 5000 h | ||
Dissipation Factor 10% | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
KEMET’s A755 Single-Ended Conductive Polymer Aluminum Solid Electrolytic Capacitors offer longer life and greater stability across a wide range of temperatures. The A755 highly conductive solid polymer electrolyte eliminates the risk of explosion from drying out and due to its low ESR properties, is able to withstand higher ripple currents during normal operation. The A755 is ideally suited for industrial and commercial applications. Typical applications include LED driver power supplies, adapters (laptop power supplies) and medical equipment
Through-hole form factor
Low impedance
High ripple current
Long life
105°C/5,000 hours
