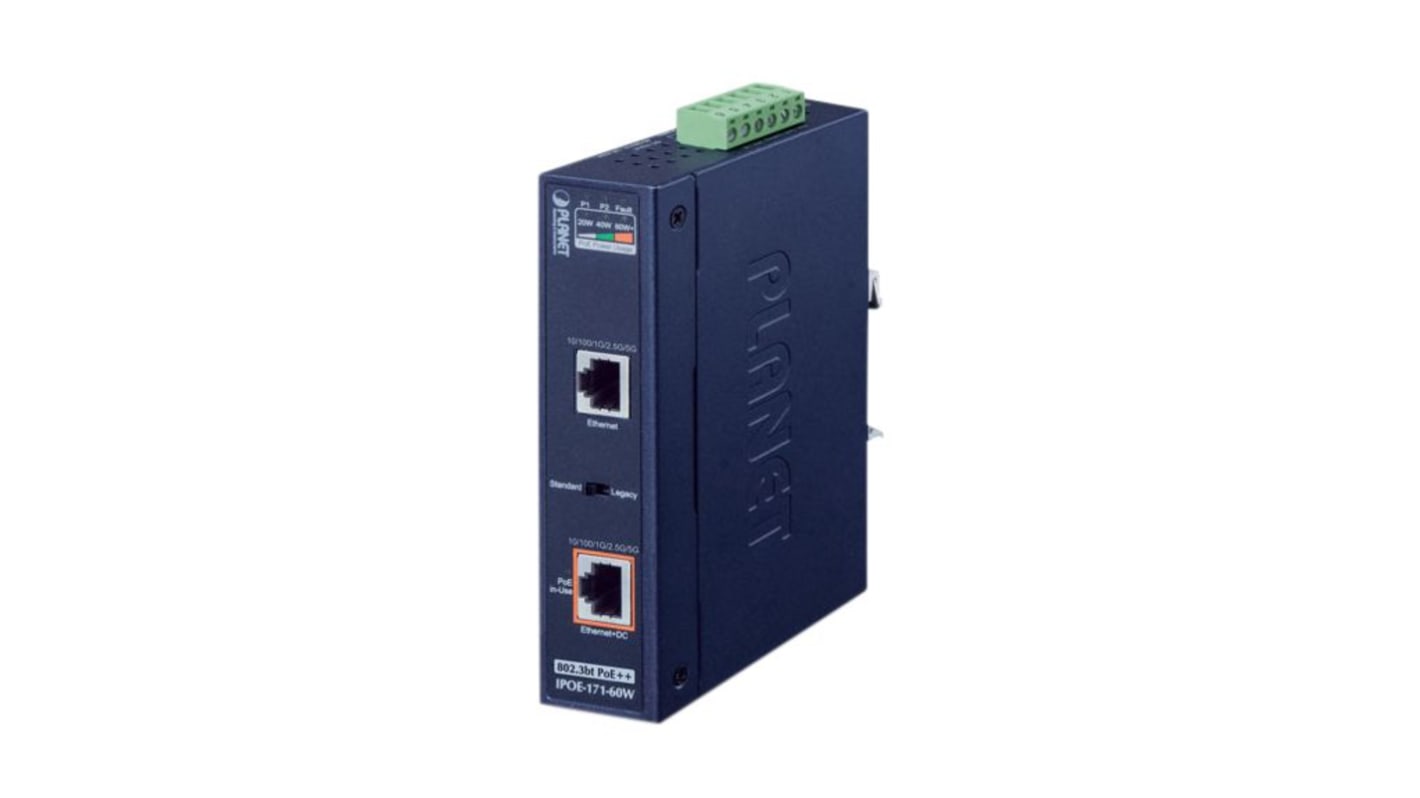

Planet 1 Port 1 Port PoE Injector, 48V, 56 V Input 60 W, 45V, 53 V Output, 2 A
- RS stock no.:
- 284-4560
- Distrelec Article No.:
- 302-62-113
- Mfr. Part No.:
- IPOE-171-60W
- Manufacturer:
- Planet
Subtotal (1 unit)*
R 4 082,03
(exc. VAT)
R 4 694,33
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 3 unit(s) shipping from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 4,082.03 |
*price indicative
- RS stock no.:
- 284-4560
- Distrelec Article No.:
- 302-62-113
- Mfr. Part No.:
- IPOE-171-60W
- Manufacturer:
- Planet
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Planet | |
| Maximum Data Rate | 5Gbps | |
| Input Voltage | 48V, 56V | |
| Product Type | PoE Injector | |
| Output Voltage | 45V, 53V | |
| Output Current | 2A | |
| Number of DC Power Output Ports | 1 | |
| Number of Outputs | 1 | |
| Mount Type | DIN Rail, Wall | |
| Power | 60W | |
| Input Connector Type | RJ45 STP | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 75°C | |
| Weight | 430g | |
| Standards/Approvals | IEEE 802.3at/bt PSE | |
| Number of Ethernet Ports | 2 | |
| Series | IPOE-171-60W | |
| Select all | ||
|---|---|---|
Brand Planet | ||
Maximum Data Rate 5Gbps | ||
Input Voltage 48V, 56V | ||
Product Type PoE Injector | ||
Output Voltage 45V, 53V | ||
Output Current 2A | ||
Number of DC Power Output Ports 1 | ||
Number of Outputs 1 | ||
Mount Type DIN Rail, Wall | ||
Power 60W | ||
Input Connector Type RJ45 STP | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 75°C | ||
Weight 430g | ||
Standards/Approvals IEEE 802.3at/bt PSE | ||
Number of Ethernet Ports 2 | ||
Series IPOE-171-60W | ||
- COO (Country of Origin):
- TW
The industrial single-port multi-gigabit 802.3bt PoE++ injector with a maximum power output of 60 watts over Ethernet cables. It complies with IEEE 802.3at/bt PoE end-span/mid-span PSE and supports PoE power up to 60 watts for the PoE port. This injector is designed specifically to meet the growing demand for higher power required network equipment. It is equipped with two multi-gigabit RJ45 interfaces, including one port for data + power output and one port for data input.
Handles extremely large amounts of data transmission
Monitors the status of the total PoE usage in real time
Provides remote power feeding up to 100m
Equipped with IP30 slim-type metal case for durability
Supports 6KV DC Ethernet ESD protection
Operating temperature range from -40 to 75 degrees Celsius
