Festo VPPE-3-1/8-6-010 Series Pneumatic Regulator G 1/8 G G

RS stock no.:: 202-2129
Mfr. Part No.:: VPPE-3-1/8-6-010
Manufacturer:: Festo

Festo VPPE-3-1/8-6-010 Series Pneumatic Regulator G 1/8 G G

Subtotal (1 unit)*

R 11 474,54

(exc. VAT)

R 13 195,72

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

Plus 8 unit(s) shipping from 23 March 2026
Plus 3 unit(s) shipping from 03 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 11,474.54

*price indicative

RS stock no.:: 202-2129
Mfr. Part No.:: VPPE-3-1/8-6-010
Manufacturer:: Festo

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Product Type	Pneumatic Regulator
	Inlet Connection Type	Pneumatic
	Inlet Connection Size	G 1/8
	Outlet Connection Size	G 1/8
	Series	VPPE-3-1/8-6-010
	Inlet Thread Standard	G
	Maximum Operating Pressure	8 bar
	Material	Wrought Aluminium Alloy, Nitrile Rubber (NBR)
	Minimum Operating Temperature	10°C
	Outlet Thread Standard	G
	Maximum Operating Temperature	50°C
	Standards/Approvals	CE to EU for EMC, KC KC-EMV, RCM c UL us (OL)

	Select all
	Brand Festo
	Product Type Pneumatic Regulator
	Inlet Connection Type Pneumatic
	Inlet Connection Size G 1/8
	Outlet Connection Size G 1/8
	Series VPPE-3-1/8-6-010
	Inlet Thread Standard G
	Maximum Operating Pressure 8 bar
	Material Wrought Aluminium Alloy, Nitrile Rubber (NBR)
	Minimum Operating Temperature 10°C
	Outlet Thread Standard G
	Maximum Operating Temperature 50°C
	Standards/Approvals CE to EU for EMC, KC KC-EMV, RCM c UL us (OL)

COO (Country of Origin):: HU

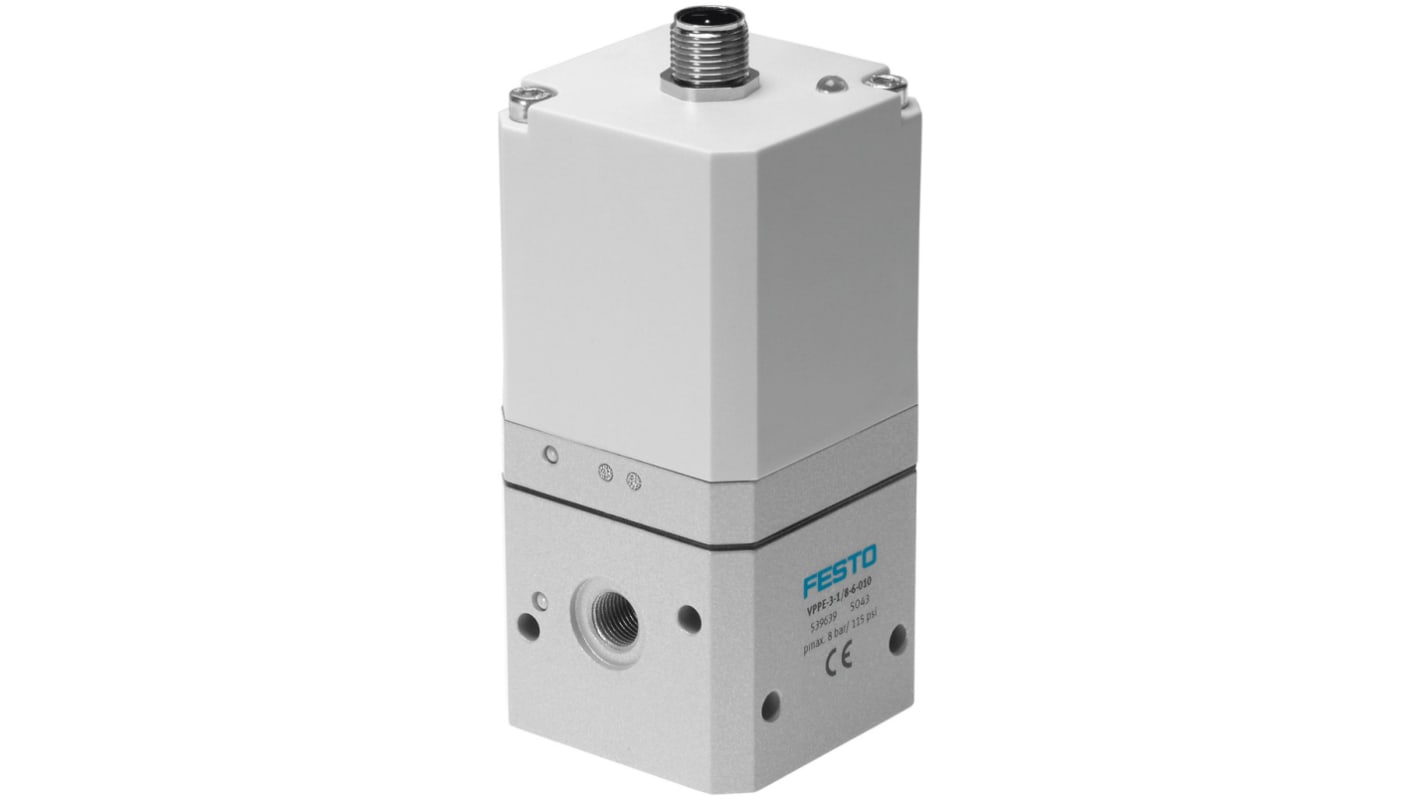

Festo Pneumatic Regulator, G 1/8, 850L/Min Typical Flow Rate - VPPE-3-1/8-6-010

Looking for a reliable pneumatic regulator to carry out simple control tasks? Choose this proportional pressure regulator from Festo's VPP series. It's an electrically actuated three-way valve function regulator that's suitable for block mounting, which helps you build a stable and secure system. You can use it with inlet pressures of up to 8 bar and outlet pressures between 0.15 bar and 6 bar. It has a reliable typical flow rate of 850L/min and is fitted with a standard G 1/8 port connection.

• IP65 (ingress protection) rating means it's protected from condensation and water sprays from any direction

• Compact design makes efficient use of space in your installation

• Wrought-aluminium construction makes it strong and corrosion-resistant

• Nitrile rubber seals guard against leakage

Applications

• Medical product coating

• Mould water cooling

• Thermoforming

What is proportional pressure control?

Proportional pressure control is where a variable electronic signal is used to command a pneumatic pressure control device and create a varying pressure flow.

What process variables can be controlled with a proportional pressure regulator?

Proportional pressure regulators can be used to control variables including rotational speed, position, temperature and level.
