Crouzet em4 Local Series PLC CPU, PWM, Relay Output, 6-Input, Analogue, Analogue, Digital Input
- RS stock no.:
- 123-7001
- Distrelec Article No.:
- 302-42-098
- Mfr. Part No.:
- 88981126
- Manufacturer:
- Crouzet
Unavailable
RS will no longer stock this product.
- RS stock no.:
- 123-7001
- Distrelec Article No.:
- 302-42-098
- Mfr. Part No.:
- 88981126
- Manufacturer:
- Crouzet
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Product Type | PLC CPU | |
| Series | em4 Local | |
| Number of Inputs | 6 | |
| Output Type | PWM, Relay | |
| Input Type | Analogue, Analogue, Digital | |
| Number of Outputs | 10 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Length | 124.6mm | |
| Width | 108.1 mm | |
| Depth | 60.6mm | |
| Standards/Approvals | CE, cULus, IEC/EN 61000-6-1 | |
| Programming Language Used | FBD, Sequential function chart (SFC) | |
| Mount Type | DIN Rail, DIN Rail | |
| Communication Port Type | USB | |
| Display Included | Yes | |
| Battery Backup | Yes | |
| Output Current | 8A | |
| Program Capacity | 2kB | |
| Select all | ||
|---|---|---|
Brand Crouzet | ||
Product Type PLC CPU | ||
Series em4 Local | ||
Number of Inputs 6 | ||
Output Type PWM, Relay | ||
Input Type Analogue, Analogue, Digital | ||
Number of Outputs 10 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Length 124.6mm | ||
Width 108.1 mm | ||
Depth 60.6mm | ||
Standards/Approvals CE, cULus, IEC/EN 61000-6-1 | ||
Programming Language Used FBD, Sequential function chart (SFC) | ||
Mount Type DIN Rail, DIN Rail | ||
Communication Port Type USB | ||
Display Included Yes | ||
Battery Backup Yes | ||
Output Current 8A | ||
Program Capacity 2kB | ||
- COO (Country of Origin):
- ES

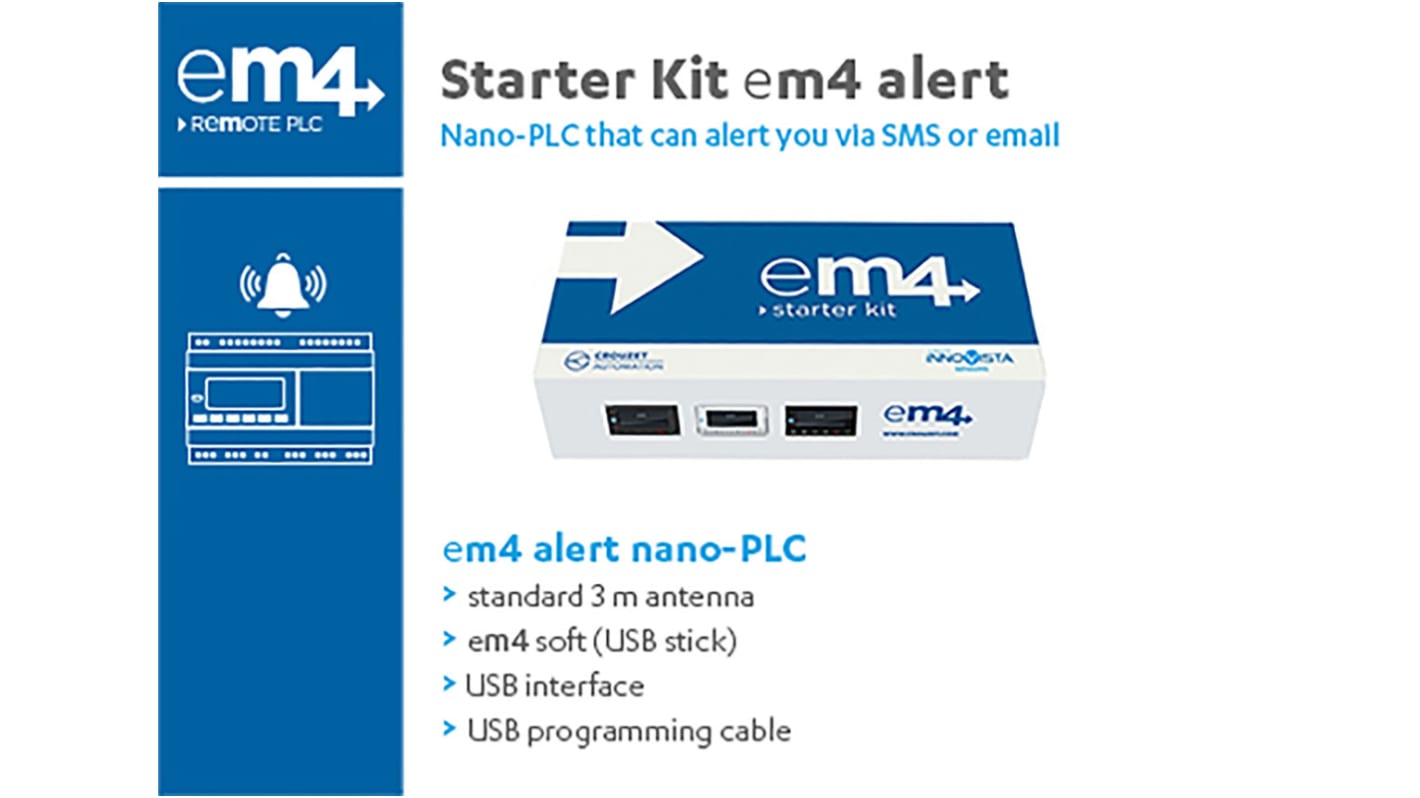

Starter Kit em4 Alert B26 24V dc-2GS
The best nano-PLC for communicating via text, email or FTP. The Crouzet starter kit em4 alert 3G comes with the very compact and easy to program nano-PLC with 26 I/Os. With the Crouzet em4 Alert 3G manage, control, survey and update your application remotly via Text, Email or FTP communication. Very easy to setup device thanks to unique and intuitive program - em4 soft. Only needs GSM network to start operate (SMS) via a basic SIM card. Fully secured solution as only users identified in the PLC can interact, up to 20 recepients.
Highly accurate 4-20mA analogue inputs for industrial sensors
4 lines with 18 characters per line with highly Visual display
Large memory space for application and remote funtions program
Event management by text message or email
Data report via text message data log via email or FTP
Simple monitoring and control via text messaging
Communication between logic controllers via text messaging
Remote directory management
Remotely update the application program via FTP
em4 Alert Starter Kit Includes:
em4 alert nano-PLC CPU
Standard 3m wireless antenna (818-7152)
em Soft USB stick software (818-7177)
USB interface in either black (818-7133)
3m USB programming cable (818-7168)
em4 soft (USB Key)
Crouzet em4
Standards
CE, cULus Listed, IEC/EN 61000-6-1,2,3 & 4 in accordance with 2001E/108/EC EMC Directive
