Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	INA
	Product Type	Plain Bearing
	Bore Diameter	17mm
	Outside Diameter	30mm
	Static Load Rating - Radial	81300N
	Material	Elgoglide
	Standards/Approvals	DIN ISO 12240-1
	Width	14mm
	Series	GE17-UK-2RS

	Select all
	Brand INA
	Product Type Plain Bearing
	Bore Diameter 17mm
	Outside Diameter 30mm
	Static Load Rating - Radial 81300N
	Material Elgoglide
	Standards/Approvals DIN ISO 12240-1
	Width 14mm
	Series GE17-UK-2RS

Datasheet - GE17-UK-2RS-A

Exempt

COO (Country of Origin):: DE

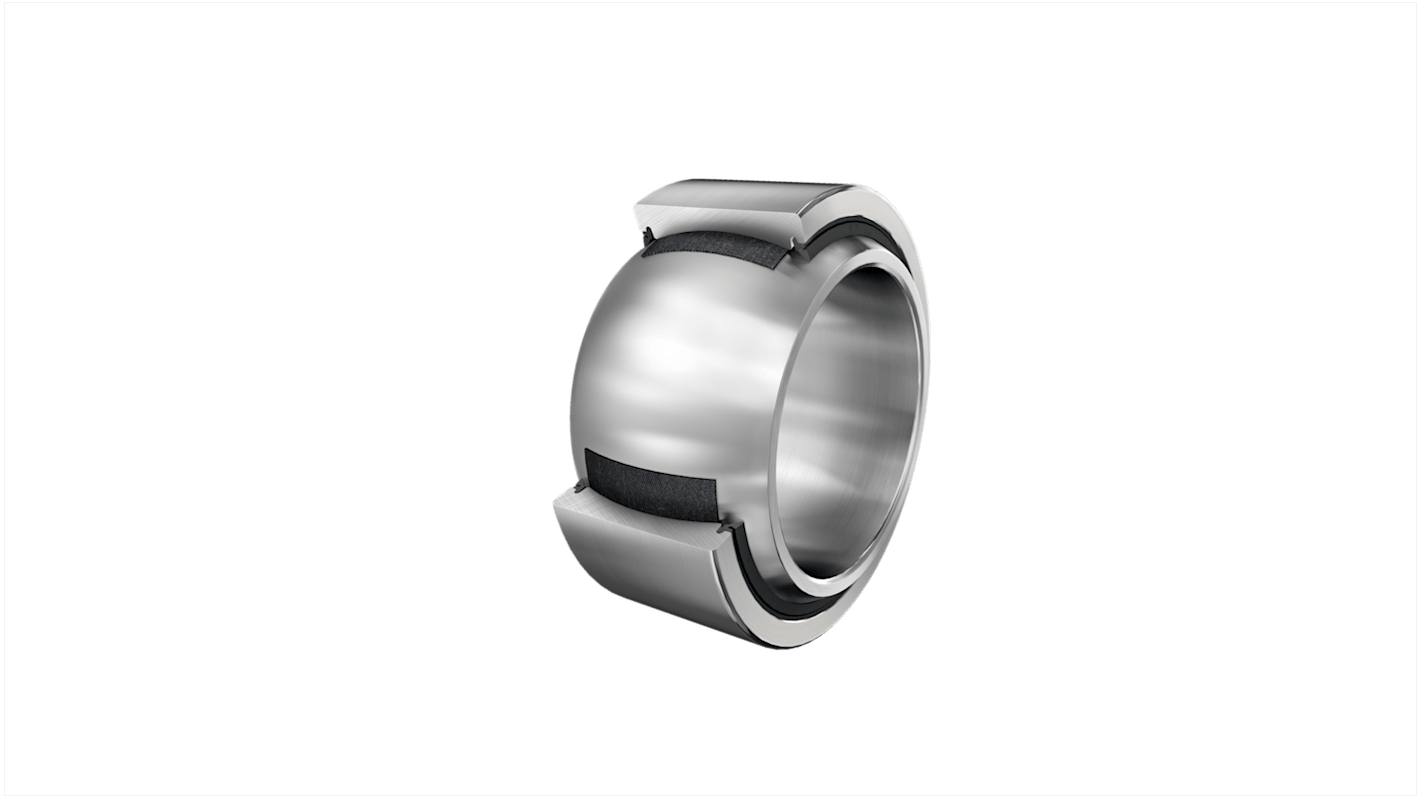

Schaeffler Plain Bearing, 17mm Bore size, 30mm Outside Diameter - GE17-UK-2RS-A

This plain bearing is a high-performance component ideal for various applications in automation and machinery. With a bore size of 17mm and an outside diameter of 30mm, this bearing is designed with a maintenance-free sliding layer of ELGOGLIDE. It features a curved inner ring surface with a hard chromium coating, ensuring extended durability and resistance to wear.

Features & Benefits

• Incorporates a static radial load rating of 81,300 N

• Basic dynamic load rating of 48,800 N for reliability

• Sealed design to protect against contaminants

• Lightweight at only 37.502 g for easy installation

• Operates effectively in temperatures ranging from -30°C to 130°C

• Curved inner ring for enhanced performance under load

Applications

• Used for requiring reliable performance under heavy loads

• Suitable for use in highly dynamic machinery

• Ideal for installations where weight-saving is critical

• Perfect for environments with extreme temperature variations

What specific materials are used in the bearing to enhance durability?

The bearing features a sliding layer made from ELGOGLIDE, along with a hard chromium coating on the inner ring, providing exceptional resistance to wear and tear.

How does the design impact the efficiency of operation?

The curved inner ring surface optimises contact with the outer ring, facilitating smoother operation and reducing friction, which contributes to the overall efficiency in machinery applications.

What are the edge spacing requirements during installation?

The minimum edge spacing should be maintained at 0.3 mm on either side to ensure proper seating and functionality of the bearing within its housing.

INA GE17-UK-2RS-A 17mm Bore Plain Bearing, 30 mm OD, 81300 N
