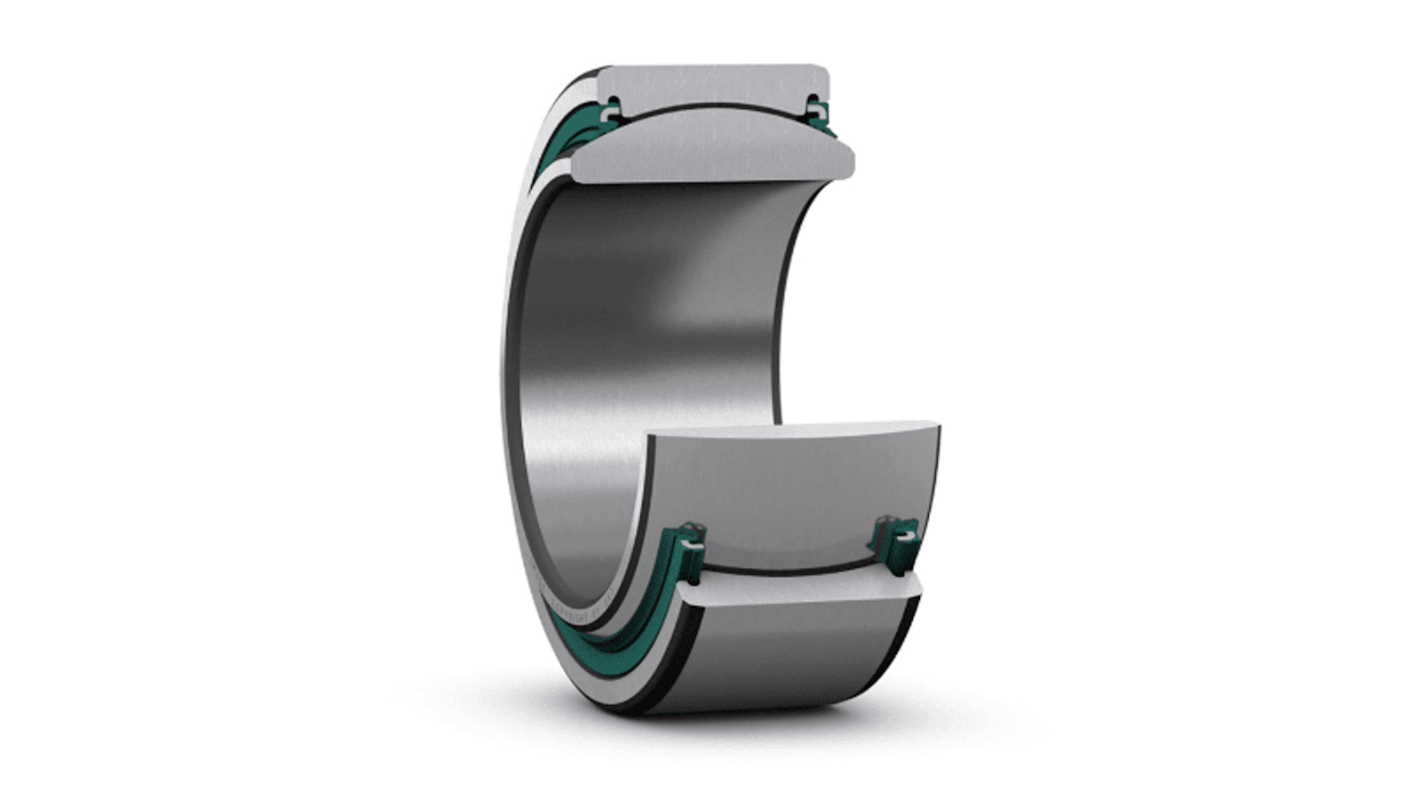

SKF GE 35 TXG3E-2LS 35 mm Bore Spherical Bearing, 375 kN, 55 mm OD
- RS stock no.:
- 217-6719
- Mfr. Part No.:
- GE 35 TXG3E-2LS
- Manufacturer:
- SKF
Subtotal (1 unit)*
R 4 845,56
(exc. VAT)
R 5 572,39
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | R 4,845.56 |
*price indicative
- RS stock no.:
- 217-6719
- Mfr. Part No.:
- GE 35 TXG3E-2LS
- Manufacturer:
- SKF
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Spherical Bearing | |
| Bore Size | 35mm | |
| Outside Diameter | 55mm | |
| Material | Steel | |
| Static Load Rating - Axial | 375kN | |
| Series | GE | |
| Width | 25mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Spherical Bearing | ||
Bore Size 35mm | ||
Outside Diameter 55mm | ||
Material Steel | ||
Static Load Rating - Axial 375kN | ||
Series GE | ||
Width 25mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- DE
The SKF spherical bearings suitable for oscillating movements and that can accommodate misalignment. Rolling bearings only partly fulfil these requirements as they are generally designed for continuous rotation and can only accommodate limited misalignment. Therefore SKF manufactures spherical plain bearings, bushings and rod ends to provide an sensible solution to these challenges. SKF manufactures spherical plain bearings, bushings and rod ends in various designs and with different sliding contact surface combinations. Each combination and design has characteristic properties which makes it particularly acceptable for certain applications.
Cylindrical bore type
0° nominal contact angle
