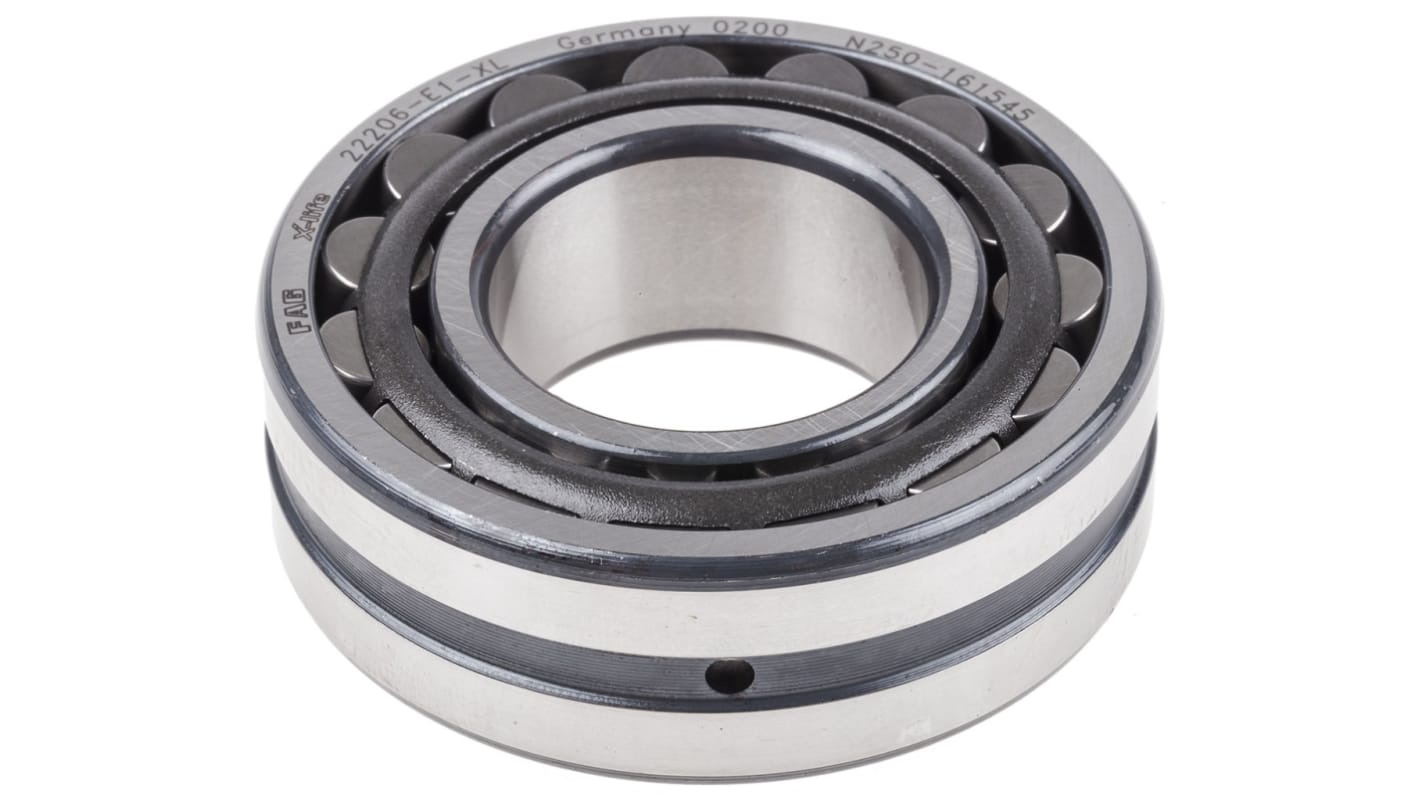

FAG 22206-E1-XL 30 mm Bore Spherical Bearing, 62 mm OD, 57 kN
- RS stock no.:
- 174-0967
- Mfr. Part No.:
- 22206-E1-XL
- Manufacturer:
- FAG
Bulk discount available
Subtotal (1 unit)*
R 1 799,40
(exc. VAT)
R 2 069,31
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 2 unit(s) ready to ship from another location
- Plus 2 unit(s) shipping from 17 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 1,799.40 |
| 5 - 9 | R 1,754.42 |
| 10 - 24 | R 1,701.79 |
| 25 + | R 1,633.72 |
*price indicative
- RS stock no.:
- 174-0967
- Mfr. Part No.:
- 22206-E1-XL
- Manufacturer:
- FAG
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Spherical Bearing | |
| Bore Size | 30 mm | |
| Outside Diameter | 62 mm | |
| Static Load Rating - Radial | 57kN | |
| Series | 222 | |
| Width | 20 mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Spherical Bearing | ||
Bore Size 30 mm | ||
Outside Diameter 62 mm | ||
Static Load Rating - Radial 57kN | ||
Series 222 | ||
Width 20 mm | ||
Standards/Approvals No | ||
Spherical roller bearings are double row, self-retaining units comprising solid outer rings with a concave raceway, solid inner rings and barrel rollers with cages. The inner rings have cylindrical or tapered bores. The symmetrical barrel rollers orient themselves freely on the concave outer ring raceway. As a result, shaft flexing and misalignment of the bearing seats are compensated, Many sizes of spherical roller bearings are of an X-life design. These bearings have improved kinematics and optimised surfaces, are made from higher performance materials and do not have a rigid central rib.
Radial and axial load capacity
Compensation of angular misalignments
Reduced adjustment angle
Bearings with cylindrical bore
Bearings with tapered bore
Bearings with adapter sleeve or withdrawal sleeve
Sealing
Lubrication
Operating temperature
Cages
X-life bearings
Suffixes
