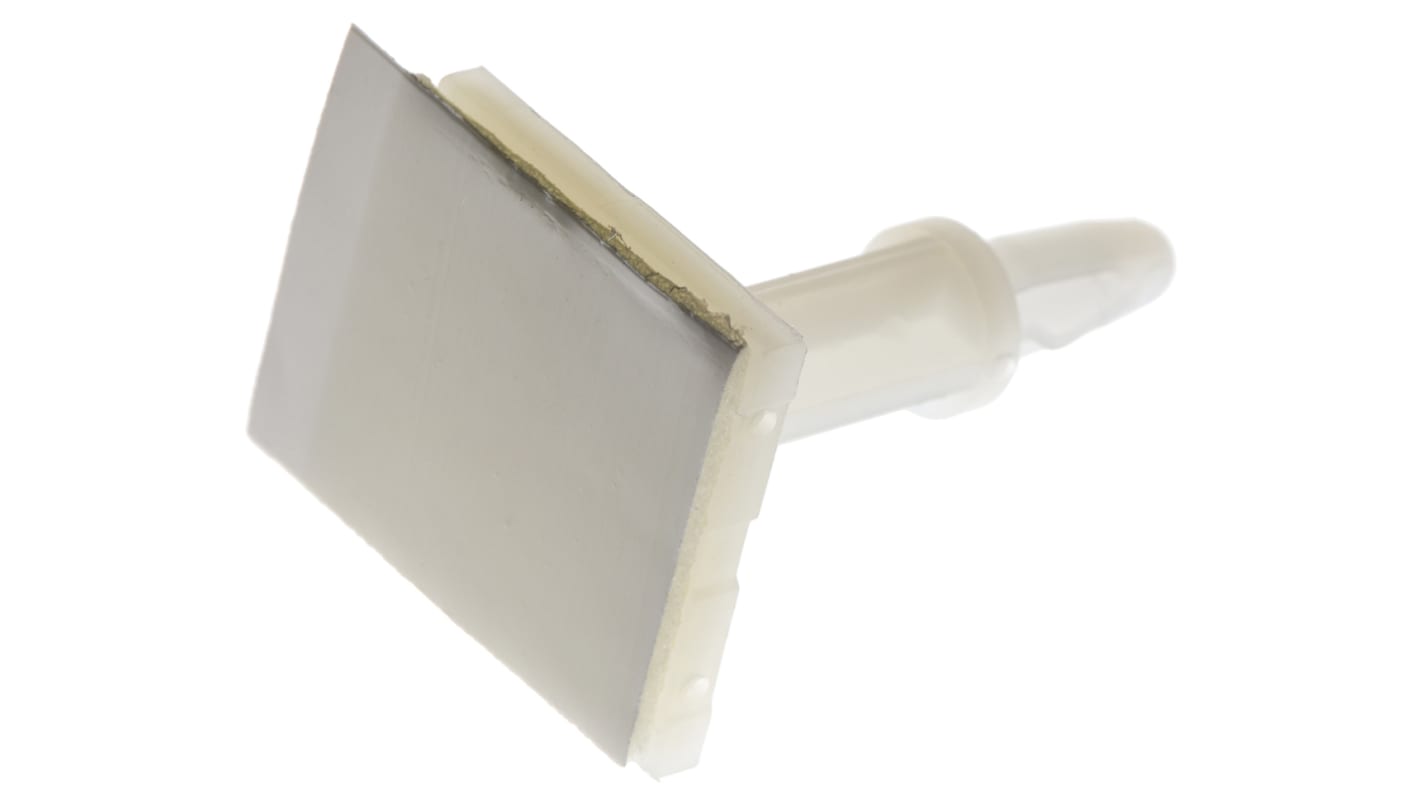

LCBSB-12-01 ART, 19.1mm High Nylon PCB Support for 4mm PCB Hole, 17.8 x 17.8mm Base
- RS stock no.:
- 580-017
- Mfr. Part No.:
- LCBSB-12-01 ART
- Manufacturer:
- Essentra
1750 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each (In a Pack of 25)
R 7,935
(exc. VAT)
R 9,125
(inc. VAT)
| Units | Per unit | Per Pack* |
| 25 - 350 | R 7,935 | R 198,375 |
| 375 + | R 7,736 | R 193,40 |
| *price indicative | ||
- RS stock no.:
- 580-017
- Mfr. Part No.:
- LCBSB-12-01 ART
- Manufacturer:
- Essentra
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Standard Adhesive Backed Supports
PCB supports moulded in nylon, with an adhesive covered base which is protected by a removable strip until fitting
The board to be supported is retained securely by the locking barb, but may be removed when required
The support can be permanently fixed to most smooth and clean surfaces, due to the good retention properties of the adhesive
As the supports require no fixing screws they are particularly useful where a tapped support pillar cannot be used, e.g. on the rear of front panels
Working temperature range: -20°C to +90°C
Colour is natural
PCB Thickness 1.6mm
Hole dia 4.0mm
The board to be supported is retained securely by the locking barb, but may be removed when required
The support can be permanently fixed to most smooth and clean surfaces, due to the good retention properties of the adhesive
As the supports require no fixing screws they are particularly useful where a tapped support pillar cannot be used, e.g. on the rear of front panels
Working temperature range: -20°C to +90°C
Colour is natural
PCB Thickness 1.6mm
Hole dia 4.0mm
Specification
Attribute | Value |
|---|---|
| Overall Height | 29.3mm |
| PCB Support Type | Adhesive-Backed Support |
| Body Height | 19.1mm |
| Support Base Dimensions | 17.8 x 17.8mm |
| PCB Hole Diameter | 4mm |
| PCB Thickness | 1.57mm |
| Material | Nylon |
| Support Base Length | 17.8mm |
| Support Base Width | 17.8mm |
