Broadcom DC Input Optocoupler, Surface, 8-Pin SOIC
- RS stock no.:
- 922-5801
- Mfr. Part No.:
- HCPL-0201-000E
- Manufacturer:
- Broadcom

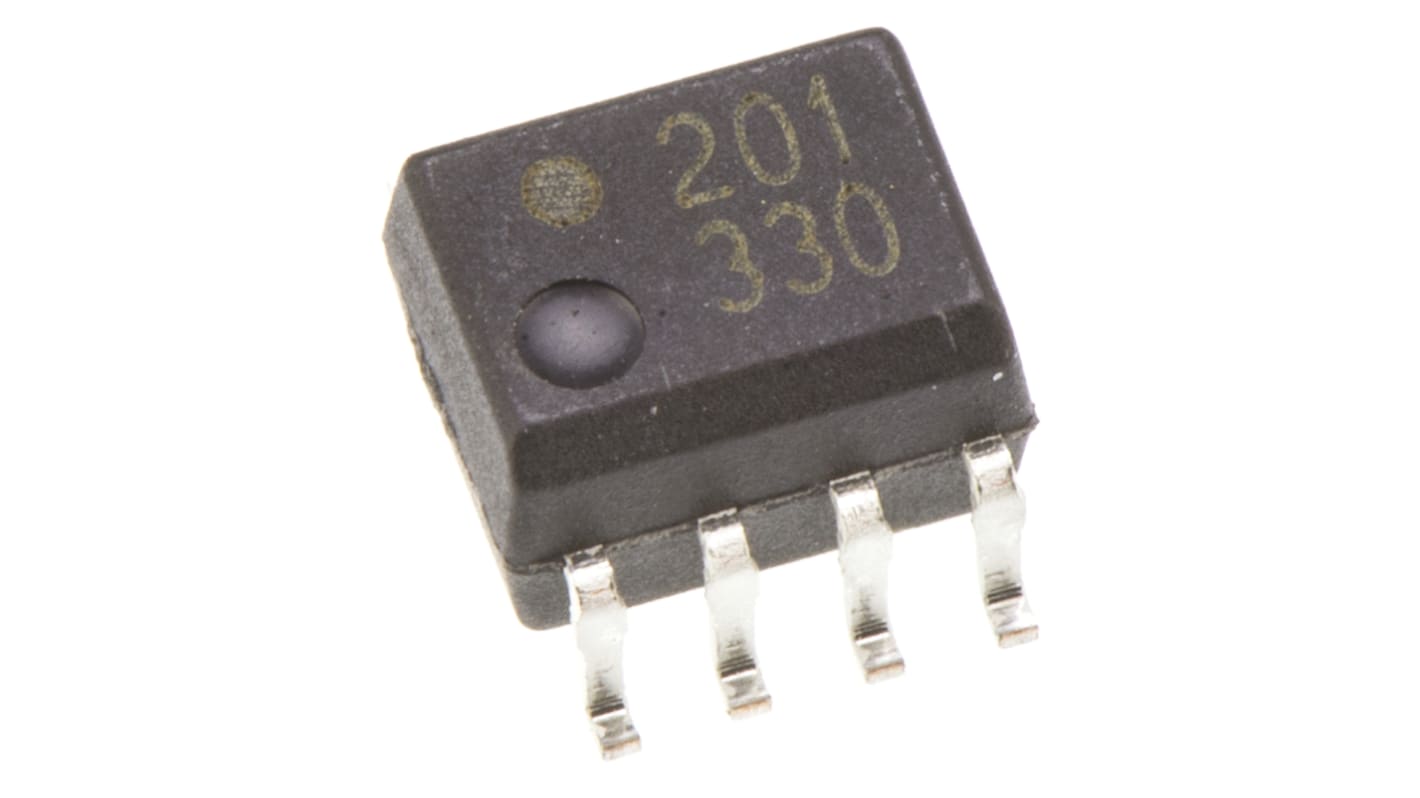

Image representative of range
Bulk discount available
View bulk pricing optionSubtotal (1 tube of 100 units)*
R 3 369,10
(exc. VAT)
R 3 874,50
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 300 unit(s) ready to ship from another location
- Plus 1,600 unit(s) shipping from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 100 - 100 | R 33.691 | R 3,369.10 |
| 200 - 300 | R 32.849 | R 3,284.90 |
| 400 - 900 | R 31.863 | R 3,186.30 |
| 1000 - 1900 | R 30.589 | R 3,058.90 |
| 2000 + | R 29.365 | R 2,936.50 |
*price indicative
- RS stock no.:
- 922-5801
- Mfr. Part No.:
- HCPL-0201-000E
- Manufacturer:
- Broadcom
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Product Type | Optocoupler | |
| Mount Type | Surface | |
| Maximum Forward Voltage | 1.85V | |
| Packaging | Tape & Reel | |
| Number of Channels | 1 | |
| Number of Pins | 8 | |
| Package Type | SOIC | |
| Input Current Type | DC | |
| Typical Rise Time | 30ns | |
| Maximum Input Current | 10mA | |
| Isolation Voltage | 3750V ac | |
| Logic Output | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | IEC/EN/DIN EN 60747-5-2, UL1577, CSA | |
| Typical Fall Time | 7ns | |
| Series | HCPL | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Product Type Optocoupler | ||
Mount Type Surface | ||
Maximum Forward Voltage 1.85V | ||
Packaging Tape & Reel | ||
Number of Channels 1 | ||
Number of Pins 8 | ||
Package Type SOIC | ||
Input Current Type DC | ||
Typical Rise Time 30ns | ||
Maximum Input Current 10mA | ||
Isolation Voltage 3750V ac | ||
Logic Output Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals IEC/EN/DIN EN 60747-5-2, UL1577, CSA | ||
Typical Fall Time 7ns | ||
Series HCPL | ||
Automotive Standard No | ||
Opto-Isolators 5MBd Logic-Gate, Avago Technologies
5 MBd maximum operation optocouplers with logic gate output.
Optocouplers, Avago Technologies
Approvals
UL E55361
