Broadcom ACPL-227-50CE DC Input 2-Channel Optocoupler, Surface, 8-Pin SOIC
- RS stock no.:
- 693-6797
- Mfr. Part No.:
- ACPL-227-50CE
- Manufacturer:
- Broadcom

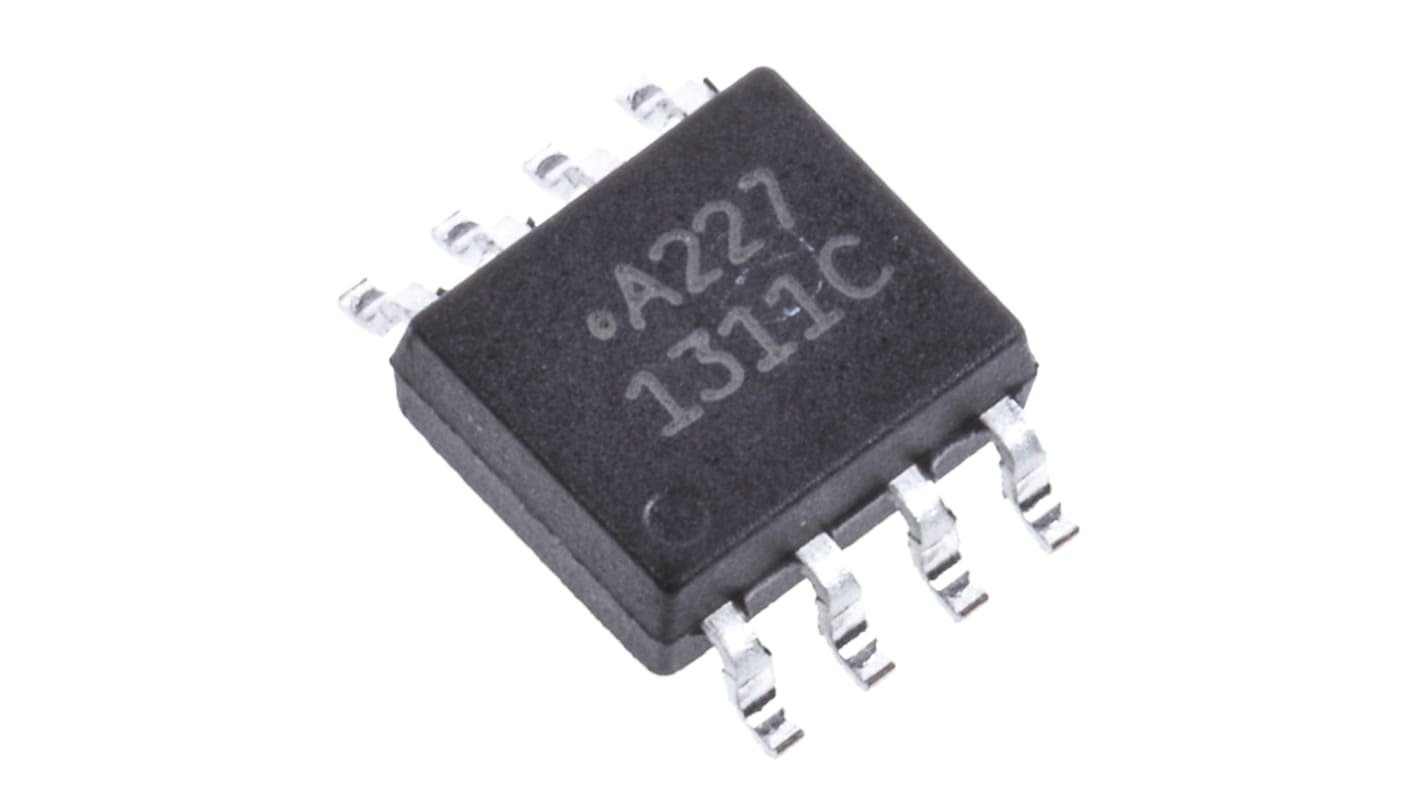

Image representative of range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
R 109,76
(exc. VAT)
R 126,225
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- 4,250 unit(s) shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | R 21.952 | R 109.76 |
| 50 - 245 | R 21.404 | R 107.02 |
| 250 - 495 | R 20.762 | R 103.81 |
| 500 - 1245 | R 19.932 | R 99.66 |
| 1250 + | R 19.134 | R 95.67 |
*price indicative
- RS stock no.:
- 693-6797
- Mfr. Part No.:
- ACPL-227-50CE
- Manufacturer:
- Broadcom
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Mount Type | Surface | |
| Product Type | Optocoupler | |
| Maximum Forward Voltage | 1.4V | |
| Packaging | Tape & Reel | |
| Number of Channels | 2 | |
| Number of Pins | 8 | |
| Package Type | SOIC | |
| Input Current Type | DC | |
| Typical Rise Time | 2μs | |
| Maximum Input Current | 50mA | |
| Isolation Voltage | 3000V ac | |
| Minimum Operating Temperature | -55°C | |
| Maximum Current Transfer Ratio | 400% | |
| Maximum Operating Temperature | 110°C | |
| Typical Fall Time | 3μs | |
| Standards/Approvals | UL, IEC, EN | |
| Minimum Current Transfer Ratio | 200% | |
| Series | ACPL | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Mount Type Surface | ||
Product Type Optocoupler | ||
Maximum Forward Voltage 1.4V | ||
Packaging Tape & Reel | ||
Number of Channels 2 | ||
Number of Pins 8 | ||
Package Type SOIC | ||
Input Current Type DC | ||
Typical Rise Time 2μs | ||
Maximum Input Current 50mA | ||
Isolation Voltage 3000V ac | ||
Minimum Operating Temperature -55°C | ||
Maximum Current Transfer Ratio 400% | ||
Maximum Operating Temperature 110°C | ||
Typical Fall Time 3μs | ||
Standards/Approvals UL, IEC, EN | ||
Minimum Current Transfer Ratio 200% | ||
Series ACPL | ||
Automotive Standard AEC-Q100 | ||
- COO (Country of Origin):
- CN
Optocoupler, Transistor Output, Avago Technologies
The DC input single and multi-channel phototransistor optocouplers are used for power sequence controller and Input/Output interface applications.
Optocouplers, Avago Technologies
