Toshiba TLP2303(E(T DC Input Optocoupler, Surface Mount, 6-Pin SO
- RS stock no.:
- 206-9735
- Mfr. Part No.:
- TLP2303(E(T
- Manufacturer:
- Toshiba

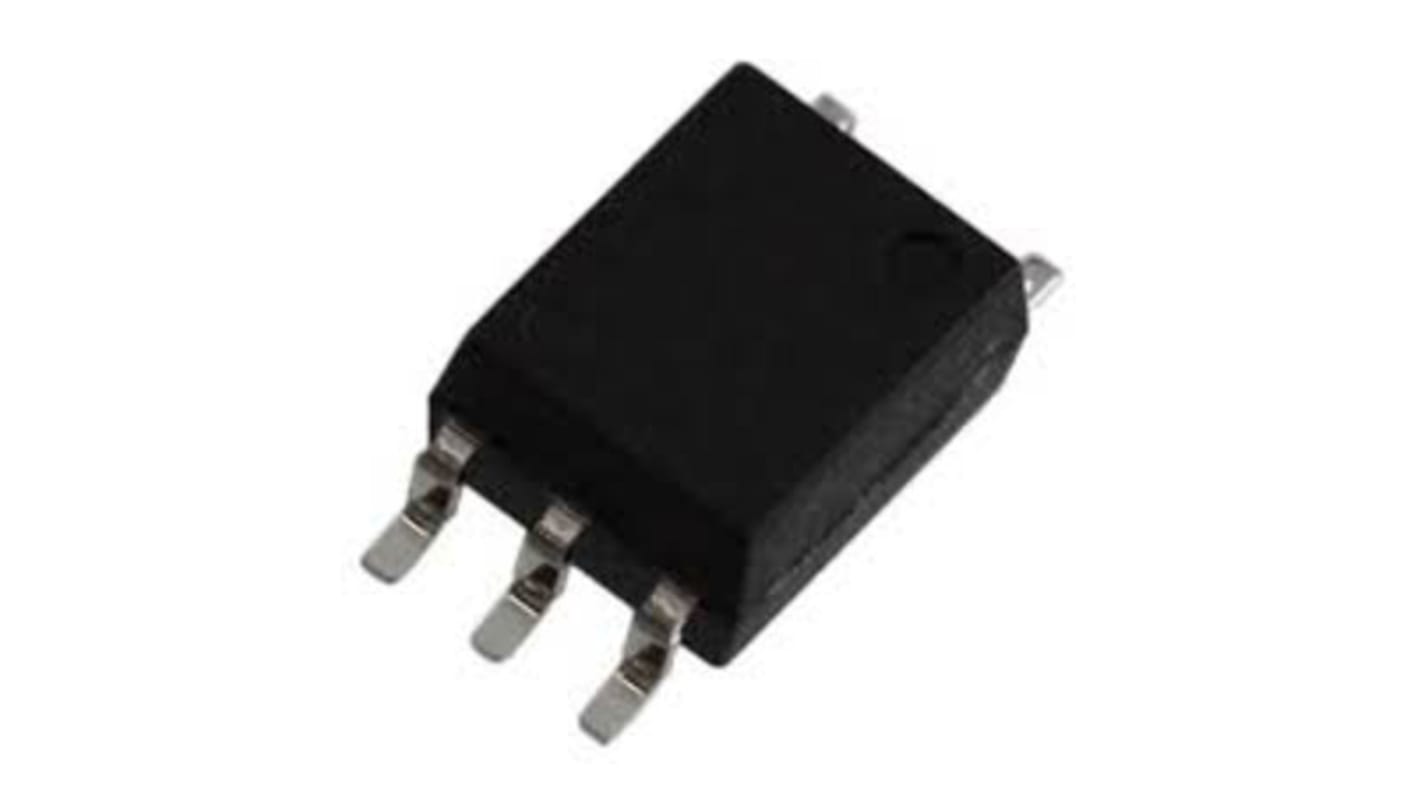

Image representative of range
Subtotal (1 box of 125 units)*
R 1 206,125
(exc. VAT)
R 1 387,00
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 1,000 unit(s) shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 125 + | R 9.649 | R 1,206.13 |
*price indicative
- RS stock no.:
- 206-9735
- Mfr. Part No.:
- TLP2303(E(T
- Manufacturer:
- Toshiba
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Mount Type | Surface Mount | |
| Product Type | Optocoupler | |
| Maximum Forward Voltage | 1.7V | |
| Number of Channels | 1 | |
| Packaging | Tape | |
| Number of Pins | 6 | |
| Package Type | SO | |
| Input Current Type | DC | |
| Maximum Input Current | 20mA | |
| Isolation Voltage | 3750Vrms | |
| Logic Output | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Current Transfer Ratio | 8000% | |
| Maximum Operating Temperature | 125°C | |
| Minimum Current Transfer Ratio | 900% | |
| Standards/Approvals | UL | |
| Series | TLP | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Toshiba | ||
Mount Type Surface Mount | ||
Product Type Optocoupler | ||
Maximum Forward Voltage 1.7V | ||
Number of Channels 1 | ||
Packaging Tape | ||
Number of Pins 6 | ||
Package Type SO | ||
Input Current Type DC | ||
Maximum Input Current 20mA | ||
Isolation Voltage 3750Vrms | ||
Logic Output Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Current Transfer Ratio 8000% | ||
Maximum Operating Temperature 125°C | ||
Minimum Current Transfer Ratio 900% | ||
Standards/Approvals UL | ||
Series TLP | ||
Automotive Standard No | ||
The Toshiba TLP2303 photo couplers consists of a high-speed detector based on the photo-transistor optically coupled to high-speed photodiode-transistor chip. It is mainly used in communication equipment and industrial inverters.
Operating temperature -40 to 125°C
Isolation voltage 3750 Vrms
