Broadcom HCPL-2611-020E DC Input Optocoupler, Through Hole, 8-Pin PDIP
- RS stock no.:
- 450-818
- Mfr. Part No.:
- HCPL-2611-020E
- Manufacturer:
- Broadcom

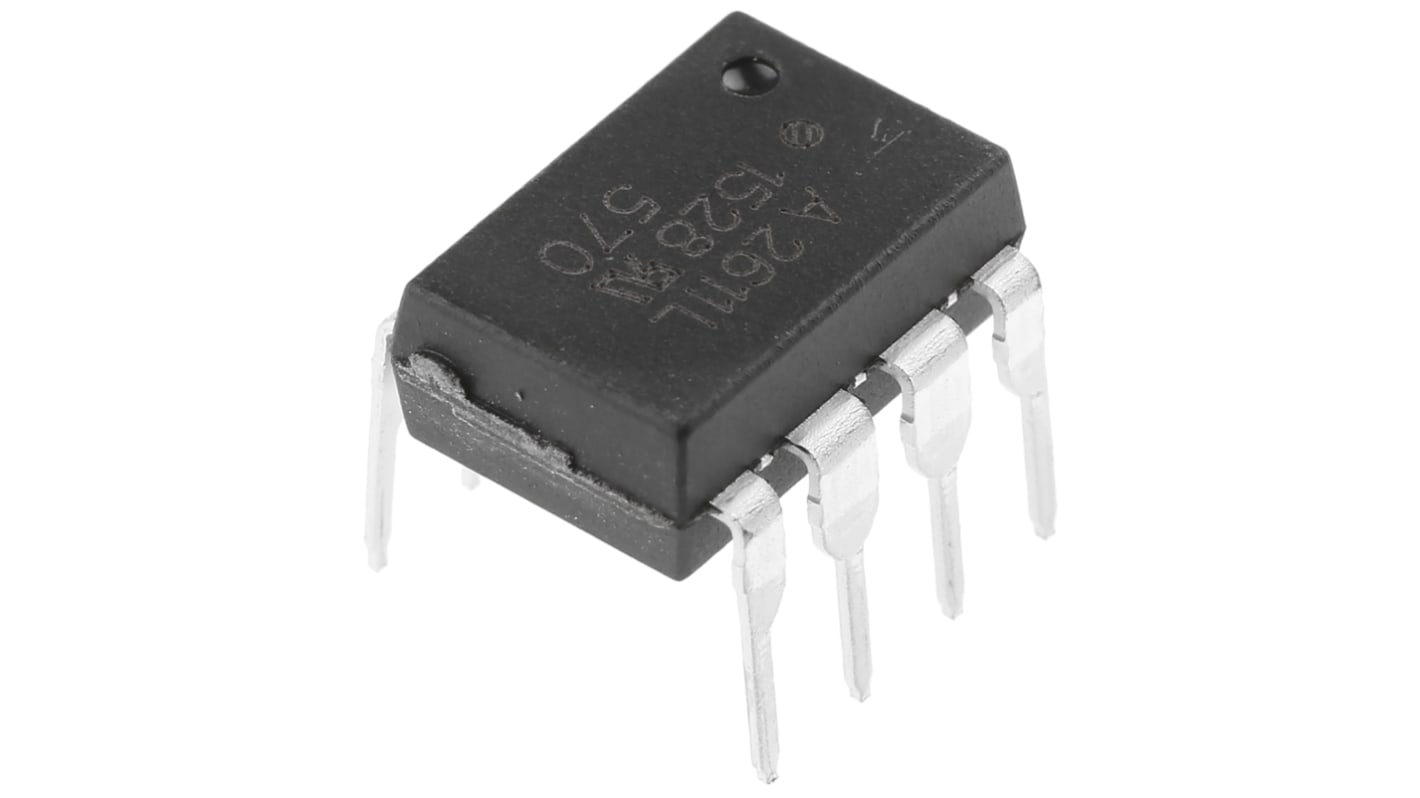

Image representative of range
Bulk discount available
Subtotal (1 pack of 2 units)*
R 121,67
(exc. VAT)
R 139,92
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 28 unit(s) ready to ship from another location
- Plus 2,576 unit(s) shipping from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | R 60.835 | R 121.67 |
| 20 - 38 | R 59.315 | R 118.63 |
| 40 - 98 | R 57.535 | R 115.07 |
| 100 - 198 | R 55.235 | R 110.47 |
| 200 + | R 53.025 | R 106.05 |
*price indicative
- RS stock no.:
- 450-818
- Mfr. Part No.:
- HCPL-2611-020E
- Manufacturer:
- Broadcom
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Mount Type | Through Hole | |
| Product Type | Optocoupler | |
| Maximum Forward Voltage | 1.75V | |
| Packaging | Tube | |
| Number of Channels | 1 | |
| Number of Pins | 8 | |
| Package Type | PDIP | |
| Input Current Type | DC | |
| Typical Rise Time | 0.024μs | |
| Isolation Voltage | 3.75kVrms | |
| Minimum Operating Temperature | -40°C | |
| Logic Output | Yes | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | CSA, UL | |
| Typical Fall Time | 0.01μs | |
| Series | HCPL | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Mount Type Through Hole | ||
Product Type Optocoupler | ||
Maximum Forward Voltage 1.75V | ||
Packaging Tube | ||
Number of Channels 1 | ||
Number of Pins 8 | ||
Package Type PDIP | ||
Input Current Type DC | ||
Typical Rise Time 0.024μs | ||
Isolation Voltage 3.75kVrms | ||
Minimum Operating Temperature -40°C | ||
Logic Output Yes | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals CSA, UL | ||
Typical Fall Time 0.01μs | ||
Series HCPL | ||
Automotive Standard AEC-Q100 | ||
Optocoupler, 10MBd Logic Gate, Avago Technologies
10 MBd digital optocouplers are suited for isolated communication logic interface and control in industrial power systems, factory automation, power supplies, and medical equipment applications.
