RS PRO 8 Port Ethernet Switch

RS stock no.:: 144-8674
Manufacturer:: RS PRO

Price (Excl VAT) Each

R 2 824,66

(exc. VAT)

R 3 248,36

(inc. VAT)

137 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)

Units	Per unit
1 - 9	R 2 824,66
10 +	R 2 754,04

RS stock no.:: 144-8674
Manufacturer:: RS PRO

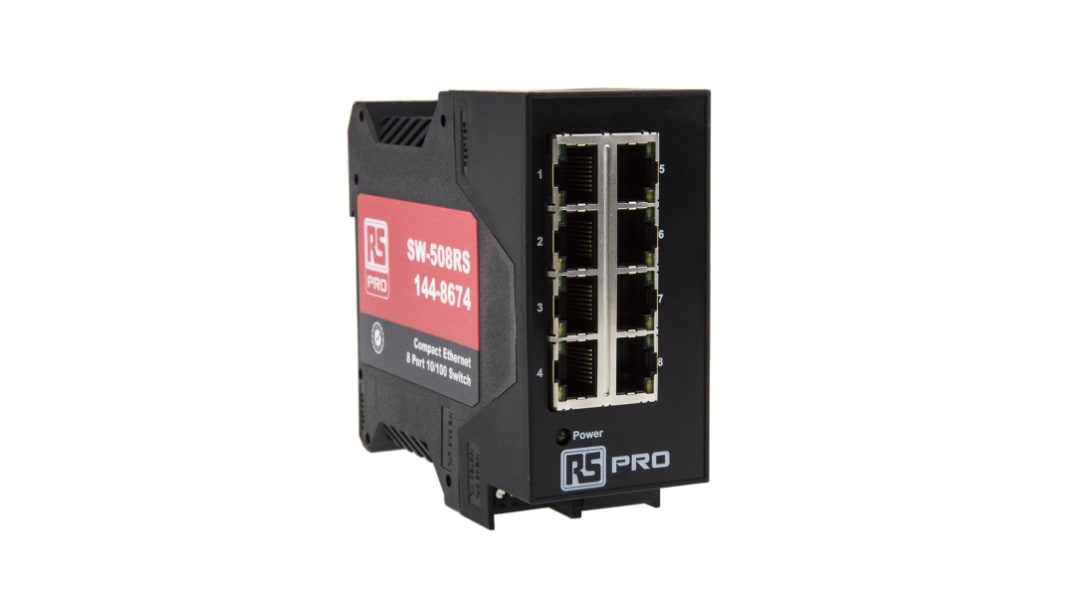

RS PRO DIN Rail Mount 8-Port Compact Ethernet Switch

A reliable and efficient industrial compact Ethernet 8 Port unmanaged switch with galvanically isolated ethernet ports capable of 10/100 Mbps. The ethernet switches industrial temperature range is from -40°C to +80°C and the dual input redundant power supply with wide voltage range means it can be powered from a USB or by 24V power supply. The power terminal is removable with numbered pins for easy wiring. No software is required, you just plug in and connect.

Features and Benefits:

8 Port Compact Ethernet Switch
Ethernet speed - 10/100 fast Ethernet
Integrated DIN Rail Mount with grounding - compact design takes up minimal cabinet space
Redundant dual power inputs: +5V to +30V DC - enables device to be run from a standard car battery
Industrial operating temperature range -40°C to +80°C / -40°F to +176°F
No software required - just plug in any ethernet cable and connect
Power Consumption: 1.35 Watts Max: 260 mAmps@+5VDC/45mAmps@+30VDC
Power Supply input: Unregulated +5V to +30Volts DC, reverse polarity protection
Ethernet Ports: 8 x RJ45 jack, 10/100Mhz autosensing, crossover auto sensing (Auto MDIX)
Unmanaged 10/100Mbps Ethernet
Housing: IP-20 rated metal case with easy wire removable screw terminal block
Weight: 0.16 kg
Dimensions: 115x99x45 mm

Typical Applications:

Industrial hubs are the devices used to connect several Ethernet devices together at one time. They then function as a single network together. They can be used in the following areas:
Automation industries
Energy industries
Machinery & robotics industries
Transportation industries
These RS PRO unmanaged Ethernet switches are suitable for factory floor, in vehicle and marine applications.

SW-5XX

The black numbered power terminal block is removable. Two separate sets of power supply inputs terminals are provided, one to +VA and -V and the other to +VB and -V. This provides redundancy; the second power supply automatically takes over in the event of a failure of the first one. If only one power supply is connected then the negative must be connected to one of the -V pairs. The positive can be connected to either the +VA or +VB pins. Power LED will light green when correctly connected.

Pin 1: -V
Pin 2: +VA
Pin 3: +VB
Pin 4: -V
Pin 5: Functional Earth

FAQs

What is the difference between managed and unmanaged switches.

Unmanaged switches let you immediately plug and play devises into your network and cannot be modified or managed. They are usually used in home networks and small businesses.

Managed switches allow for greater control and are deal for larger businesses and organisations with a large and growing network.

How many ports do I need on my switch?

Switches can have a different number of port configurations. To help choose the right number of ports you should consider the number of users your network supports. In general, the bigger your business and organisation is, the more ports you will require. This RS PRO Ethernet Switch has 8 ports.

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Attribute	Value
Number of Ports	8
RJ45 Ports	8
Height	99mm
Depth	115mm
Dimensions	99 x 45 x 115mm
Width	45mm
