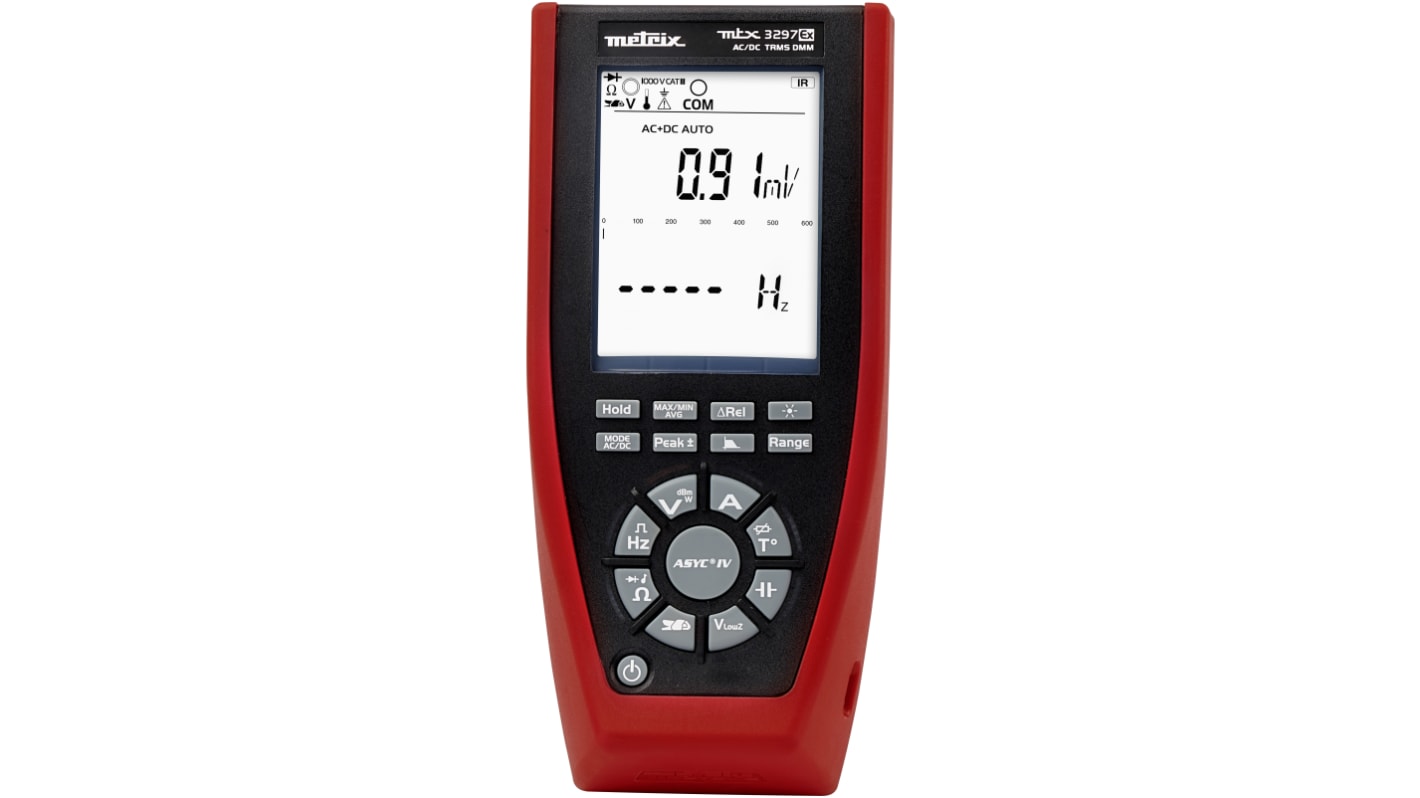

Metrix MTX3297 Digital Multimeter, 10A ac Max, 20A dc Max, 1000V ac Max

Designed and manufactured in France, the MTX 3297Ex is an intrinsically safe TRMS digital multimeter for permanent use in Ex area, whatever the field of application : oil, chemicals, agri-food, cosmetics and pharmaceutical industries, as well as cement production and mining.

The MTX 3297Ex is certified for the highest levels of risk and meets the strictest requirements, Ex / IEC Ex :

• IIC (gas) 0,1,2
• IIIC (dust) 20,21, 22
• Mines M1

Belonging to the DMM ASYC IV series, the multimeter’s performance features and specifications remain the same thanks to its IP67 liquid and dust-proofing.

Complete, this comprehensive intrinsically safe portable multimeter measures voltage, current, resistance, capacitance, frequency (duty cycle/pulse width), temperature and diodes.

Outside the Ex zones, the MTX3297Ex is a high-performance industrial multimeter, it is compliant with the IEC 61010-2-033 standard for work on 1000 V CAT III / 600 V CAT IV electrical installations.

• TRMS AC+DC
• 60,000-count display
• Bandwidth : 100 kHz
• Voltage resolution : 1 μV
• Current resolution : 0.01 μA
• Functions to help with analysis and diagnostics : MIN, MAX, Peak, ΔX differential and ΔX /X relative, Low-pass filter for measurement on PWM signals, VLowZ low-impedance AC voltage
• Isolated optical communication
• Simplified terminal strip with reminder and connection check on display
• Detection and indication of a hazardous voltage present
• Large backlit screen with double display
• Bargraph with central zero mode
• Moulded casing for excellent handling and protection against shocks and falls
