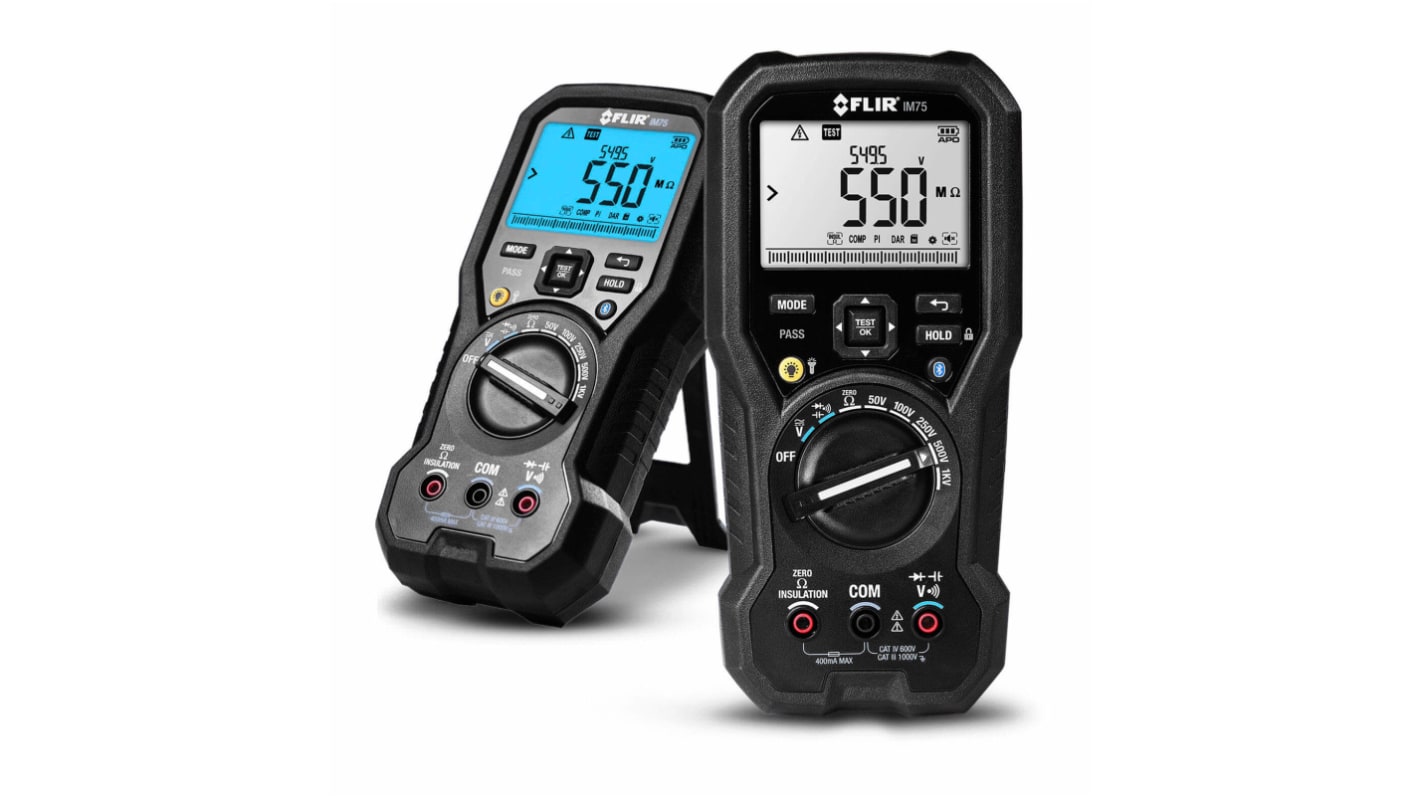

FLIR IM75-2 IM75 Digital Digital Multimeter True RMS, 1 kV ac

RS stock no.:: 273-9687
Distrelec Article No.:: 303-97-466
Mfr. Part No.:: IM75-2
Manufacturer:: FLIR

FLIR IM75-2 IM75 Digital Digital Multimeter True RMS, 1 kV ac

Image representative of range

Subtotal (1 unit)*

R 13 099,14

(exc. VAT)

R 15 064,01

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

4 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 13,099.14

*price indicative

RS stock no.:: 273-9687
Distrelec Article No.:: 303-97-466
Mfr. Part No.:: IM75-2
Manufacturer:: FLIR

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	FLIR
	Product Type	Multimeter
	Multimeter Type	Digital
	Resistance Resolution	4mΩ
	Model Number	IM75-2
	Display Type	Digital
	Functions Measured	AC Voltage, Capacitance, Continuity, DC Voltage, Diode Test, Earth Bond Resistance, Frequency, Insulation Resistance, Insulation Test Voltage
	Maximum DC Voltage Measurement	1kV dc
	Maximum AC Voltage Measurement	1kV ac
	Maximum Resistance Measurement	20GΩ
	True RMS	Yes
	AC Voltage Accuracy	±1.5 % rdg + 5 Digits
	DC Voltage Accuracy	±1 % rdg + 5 Digits
	AC Voltage Resolution	1000V ac
	DC Voltage Resolution	1000 V dc
	Maximum Frequency	40kHz
	Power Source	Battery
	Resistance Measurement Accuracy	±1.5 % rdg
	Standards/Approvals	RoHS, CE
	Series	IM75
	Other Measurement Accuracy	±1.5%
	Safety Category Level	CAT III, CAT IV
	Other Measurement Range	40Ω to 40KΩ
	Other Measurement Resolution	2V
	Safety Category Voltage	1000V
	Battery Type	AAA Alkaline

	Select all
	Brand FLIR
	Product Type Multimeter
	Multimeter Type Digital
	Resistance Resolution 4mΩ
	Model Number IM75-2
	Display Type Digital
	Functions Measured AC Voltage, Capacitance, Continuity, DC Voltage, Diode Test, Earth Bond Resistance, Frequency, Insulation Resistance, Insulation Test Voltage
	Maximum DC Voltage Measurement 1kV dc
	Maximum AC Voltage Measurement 1kV ac
	Maximum Resistance Measurement 20GΩ
	True RMS Yes
	AC Voltage Accuracy ±1.5 % rdg + 5 Digits
	DC Voltage Accuracy ±1 % rdg + 5 Digits
	AC Voltage Resolution 1000V ac
	DC Voltage Resolution 1000 V dc
	Maximum Frequency 40kHz
	Power Source Battery
	Resistance Measurement Accuracy ±1.5 % rdg
	Standards/Approvals RoHS, CE
	Series IM75
	Other Measurement Accuracy ±1.5%
	Safety Category Level CAT III, CAT IV
	Other Measurement Range 40Ω to 40KΩ
	Other Measurement Resolution 2V
	Safety Category Voltage 1000V
	Battery Type AAA Alkaline

COO (Country of Origin):: TW

FLIR Multimeter, 600 / 1000 V Safety Category Voltage - IM75-2

This handheld multimeter caters to electrical professionals, providing essential features for diagnosing electrical systems. Its functionality is tailored for users in automation, electronics, and electromechanical sectors.

Features & Benefits

• True RMS voltage measurements deliver accurate readings across diverse loads

• Durable construction with an IP54 rating to withstand environmental challenges

• Seamless integration with METERLiNK® enhances data logging capabilities

• Measures up to 20GΩ for precise insulation resistance testing

• Supports AC and DC voltage measurements up to 1000V

• Integrated frequency measurement aids in analysing electrical performance

Applications

• Suitable for testing insulation resistance in electrical installations

• Ideal for performing AC and DC voltage measurements in circuits

• Effective in identifying potential insulation weaknesses

• Utilised for continuity testing in electrical maintenance

• Appropriate for data logging in mechanical and electrical systems

How does the instrument facilitate insulation testing?

It provides multiple DC test voltages for thorough insulation assessments.

Can it be used in environments with high humidity?

Yes, it operates safely in humidity levels up to 80% at 35°C.

What type of batteries does it require?

It operates on six 1.5V AAA alkaline batteries.

Is it possible to store measurement readings?

Yes, it features internal memory for saving up to 99 readings.

How long does the battery last?

Battery life varies based on usage, particularly during insulation resistance tests.
