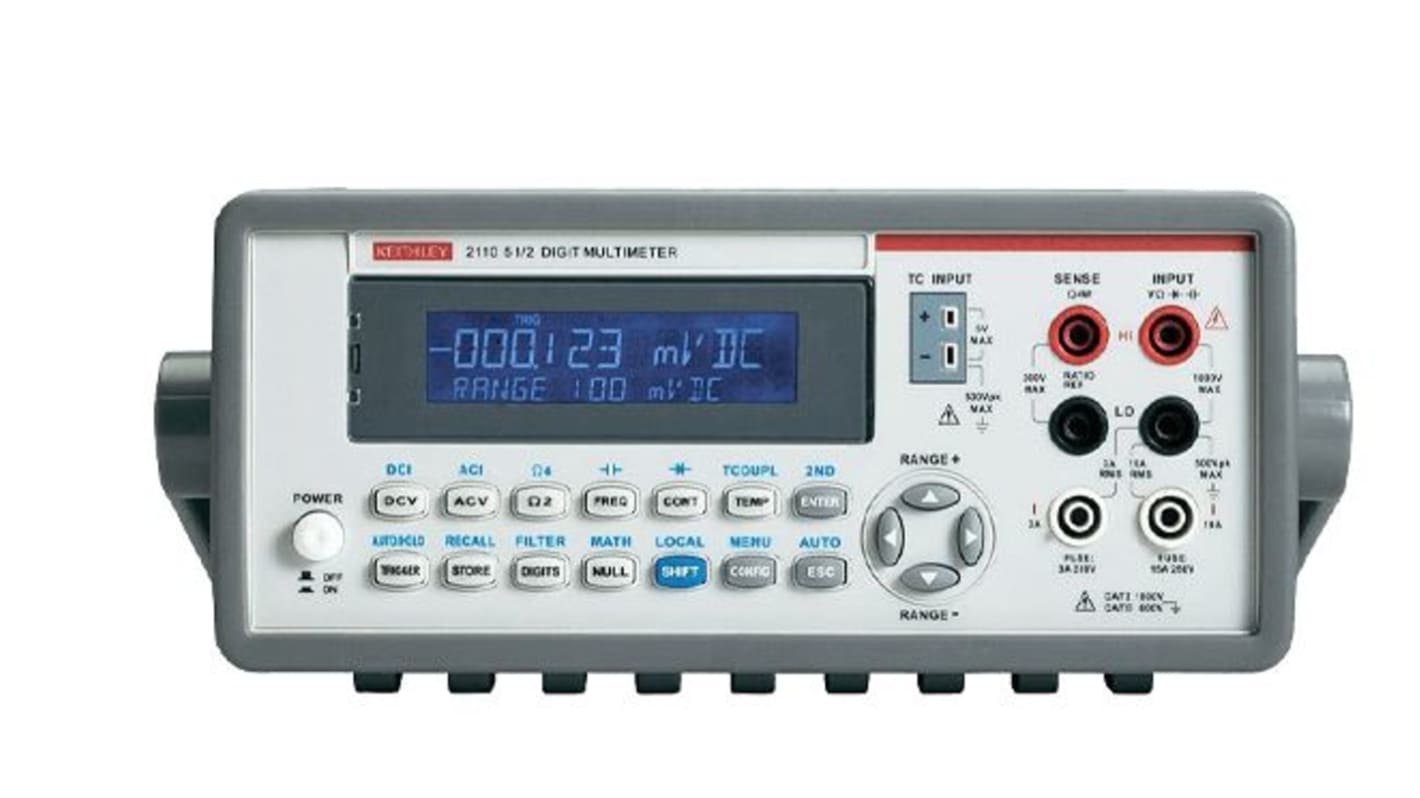

Keithley 2110-100 2110 Bench Digital Multimeter True RMS, 10 A ac, 10 A dc, 750 V ac

RS stock no.:: 273-9444
Mfr. Part No.:: 2110-100
Manufacturer:: Keithley

Keithley 2110-100 2110 Bench Digital Multimeter True RMS, 10 A ac, 10 A dc, 750 V ac

Subtotal (1 unit)*

R 21 044,54

(exc. VAT)

R 24 201,22

(inc. VAT)

FREE delivery for orders over R 1,500.00

Stocked by manufacturer

Ready to ship from 01 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 21,044.54

*price indicative

RS stock no.:: 273-9444
Mfr. Part No.:: 2110-100
Manufacturer:: Keithley

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Keithley
	Multimeter Type	Bench
	Product Type	Multimeter
	Model Number	2110-100
	Display Type	Digital
	Resistance Resolution	100mΩ
	Functions Measured	AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
	Maximum AC Current Measurement	10A ac
	Maximum Resistance Measurement	1GΩ
	Maximum DC Current Measurement	10A dc
	Maximum AC Voltage Measurement	750V ac
	Maximum DC Voltage Measurement	1kV dc
	True RMS	Yes
	AC Current Accuracy	0.30 + 0.06 % of reading + % of range
	AC Voltage Accuracy	±0.12 % rdg + 0.05 % range
	DC Voltage Accuracy	±0.012 % rdg + 0.004 % range
	DC Current Accuracy	±0.05 % rdg + 0.02 % range
	DC Voltage Resolution	1 V dc
	AC Voltage Resolution	10mV ac
	DC Current Resolution	0.1μA ac
	Maximum Frequency	15MHz
	Power Source	100/120/220/240 V
	Minimum Operating Temperature	0°C
	Resistance Measurement Accuracy	0.02 % rdg + 0.002 % range
	Maximum Operating Temperature	40°C
	Weight	2.23kg
	Height	107mm
	Standards/Approvals	IEC 8012, European Union EMC and Low Voltage, MILT28800E1, CAN/CSAC22.2 No. 231, FCC Part 15 Class B, IEC348, UL1244, VDE 0871B, CISPR22 (EN55022)
	Width	252.8mm
	Series	2110
	Length	305mm
	Other Measurement Range	Temperature: -250 to 1800°C
	Other Measurement Accuracy	Frequency: ±0.1 % of reading
	Safety Category Level	CAT I, CAT II
	Safety Category Voltage	1000V dc

	Select all
	Brand Keithley
	Multimeter Type Bench
	Product Type Multimeter
	Model Number 2110-100
	Display Type Digital
	Resistance Resolution 100mΩ
	Functions Measured AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
	Maximum AC Current Measurement 10A ac
	Maximum Resistance Measurement 1GΩ
	Maximum DC Current Measurement 10A dc
	Maximum AC Voltage Measurement 750V ac
	Maximum DC Voltage Measurement 1kV dc
	True RMS Yes
	AC Current Accuracy 0.30 + 0.06 % of reading + % of range
	AC Voltage Accuracy ±0.12 % rdg + 0.05 % range
	DC Voltage Accuracy ±0.012 % rdg + 0.004 % range
	DC Current Accuracy ±0.05 % rdg + 0.02 % range
	DC Voltage Resolution 1 V dc
	AC Voltage Resolution 10mV ac
	DC Current Resolution 0.1μA ac
	Maximum Frequency 15MHz
	Power Source 100/120/220/240 V
	Minimum Operating Temperature 0°C
	Resistance Measurement Accuracy 0.02 % rdg + 0.002 % range
	Maximum Operating Temperature 40°C
	Weight 2.23kg
	Height 107mm
	Standards/Approvals IEC 8012, European Union EMC and Low Voltage, MILT28800E1, CAN/CSAC22.2 No. 231, FCC Part 15 Class B, IEC348, UL1244, VDE 0871B, CISPR22 (EN55022)
	Width 252.8mm
	Series 2110
	Length 305mm
	Other Measurement Range Temperature: -250 to 1800°C
	Other Measurement Accuracy Frequency: ±0.1 % of reading
	Safety Category Level CAT I, CAT II
	Safety Category Voltage 1000V dc

COO (Country of Origin):: TW

The Keithley Dual-Display Digital Multimeter provides precision and a rich set of capabilities at a value price. It features 15 measurement functions and 7 math functions and has dual-line display capability, which allows it to display two different measurements concurrently.

High accuracy

Abundant capabilities
