MPN

Sefram 7223 SEFRAM 722X Digital Digital Multimeter True RMS, 10 A Max, 1000 V Max

RS stock no.:: 219-3072
Distrelec Article No.:: 301-77-293
Mfr. Part No.:: SEFRAM7223
Manufacturer:: Sefram

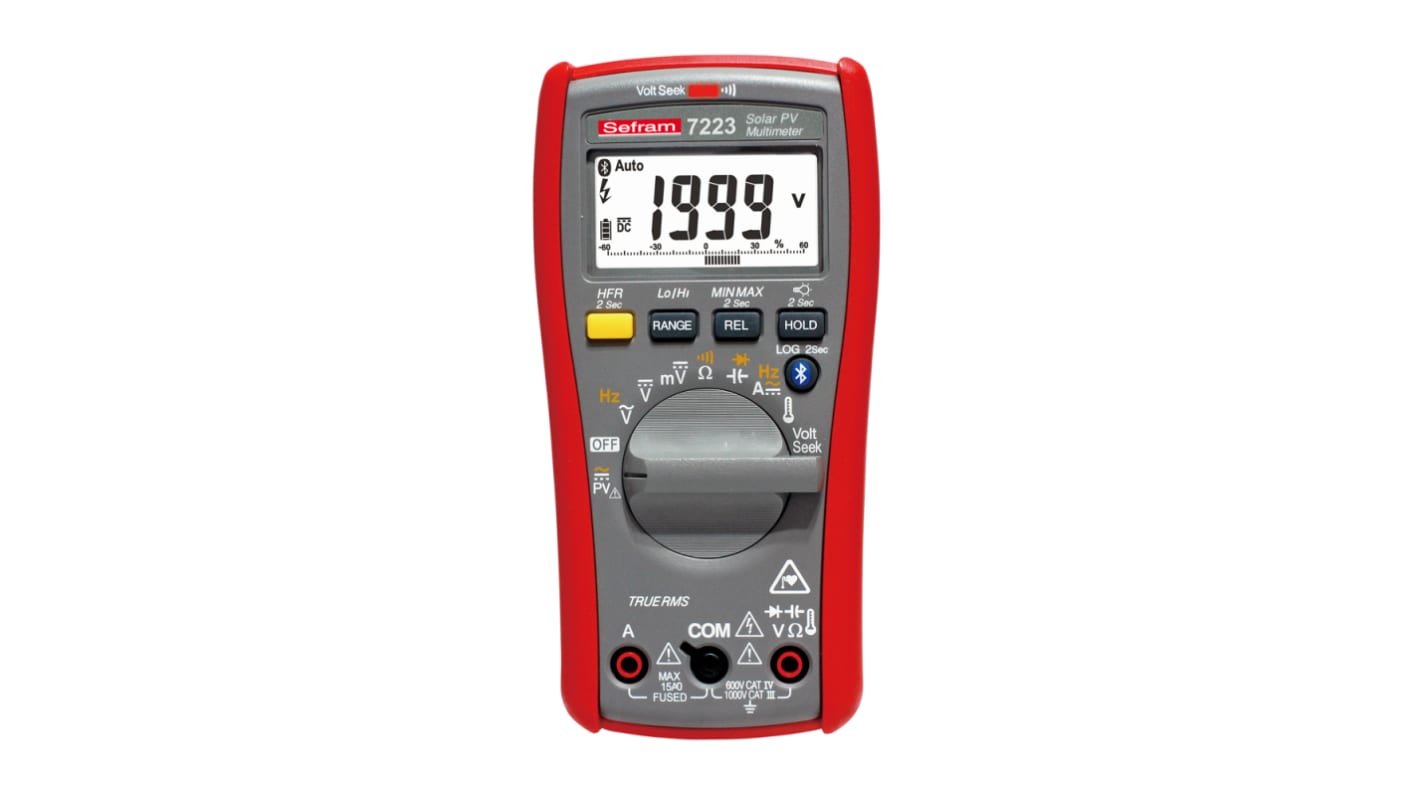

Sefram 7223 SEFRAM 722X Digital Digital Multimeter True RMS, 10 A Max, 1000 V Max

Image representative of range

Subtotal (1 unit)*

R 4 940,94

(exc. VAT)

R 5 682,08

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

5 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 4,940.94

*price indicative

RS stock no.:: 219-3072
Distrelec Article No.:: 301-77-293
Mfr. Part No.:: SEFRAM7223
Manufacturer:: Sefram

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sefram
	Multimeter Type	Digital
	Product Type	Multimeter
	Display Type	Digital
	Functions Measured	DC Current, Continuity, Capacitance, AC Current, AC Voltage, DC Voltage, Frequency, Resistance
	Maximum DC Voltage Measurement	2000V
	Maximum AC Voltage Measurement	1000V
	Maximum DC Current Measurement	10A
	True RMS	Yes
	AC Voltage Accuracy	1 % rdg + 5 Digits
	DC Voltage Accuracy	0.5 % rdg + 5 Digits
	DC Current Accuracy	1 % rdg + 3 Digits
	DC Voltage Resolution	1 V
	DC Current Resolution	0.01A
	AC Voltage Resolution	0.1mV
	Maximum Frequency	100kHz
	Power Source	Battery Power Supply
	Minimum Operating Temperature	-10°C
	Resistance Measurement Accuracy	0.9 % rdg + 5 Digits
	Battery Life	300h
	Maximum Operating Temperature	50°C
	Height	156mm
	Series	SEFRAM 722X
	Width	74 mm
	Standards/Approvals	No
	Weight	250g
	Safety Category Level	CAT III, CAT IV
	Distrelec Product Id	30177293
	Battery Type	AA (1.5V)
	Safety Category Voltage	1000V

	Select all
	Brand Sefram
	Multimeter Type Digital
	Product Type Multimeter
	Display Type Digital
	Functions Measured DC Current, Continuity, Capacitance, AC Current, AC Voltage, DC Voltage, Frequency, Resistance
	Maximum DC Voltage Measurement 2000V
	Maximum AC Voltage Measurement 1000V
	Maximum DC Current Measurement 10A
	True RMS Yes
	AC Voltage Accuracy 1 % rdg + 5 Digits
	DC Voltage Accuracy 0.5 % rdg + 5 Digits
	DC Current Accuracy 1 % rdg + 3 Digits
	DC Voltage Resolution 1 V
	DC Current Resolution 0.01A
	AC Voltage Resolution 0.1mV
	Maximum Frequency 100kHz
	Power Source Battery Power Supply
	Minimum Operating Temperature -10°C
	Resistance Measurement Accuracy 0.9 % rdg + 5 Digits
	Battery Life 300h
	Maximum Operating Temperature 50°C
	Height 156mm
	Series SEFRAM 722X
	Width 74 mm
	Standards/Approvals No
	Weight 250g
	Safety Category Level CAT III, CAT IV
	Distrelec Product Id 30177293
	Battery Type AA (1.5V)
	Safety Category Voltage 1000V

Datasheet - SEFRAM7223

COO (Country of Origin):: TW

The Sefram 7223 is a digital multimeter. It has a simple and intuitive Interface to access the various menus and Advanced functions. This multimeter has a facility of voltage measurement function on photovoltaic panels.

Frequency and capacity measurement

Resistance measurement up to 40 Moms

Continuity with buzzer

Volt Sense function

Bluetooth
