Amprobe 34XRA Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max

RS stock no.:: 411-683
Mfr. Part No.:: 34XR-A
Manufacturer:: Amprobe

Amprobe 34XRA Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max

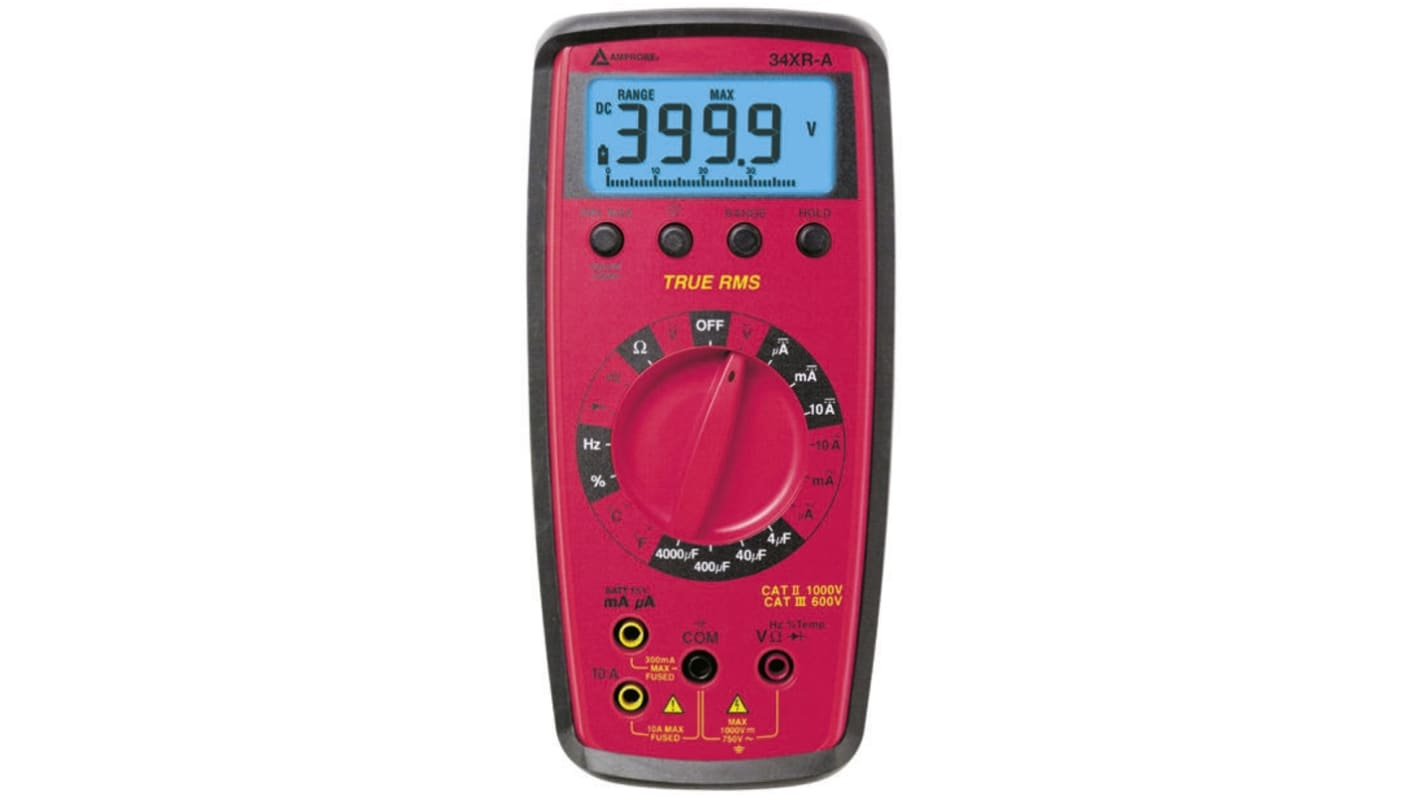

Image representative of range

Subtotal (1 unit)**

R 5 557 41

(exc. VAT)

R 6 391 02

(inc. VAT)

8 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over R 1500

Real time stock check

Not Available for premium delivery

Units	Per unit
1 +	R 5 557,41

**price indicative

RS stock no.:: 411-683
Mfr. Part No.:: 34XR-A
Manufacturer:: Amprobe

Amprobe 34XR-A Digital Multimeter

The Amprobe 34XR-A is a True RMS digital multimeter with temperature measurement. With a Magne-Grip holster and magnetic hanging strap to keep the meter convenient, the 34XR-A is designed for contractors and field service technicians. The meter includes a Cat II 1000V, Cat III 600V safety rating.

The 34XR-A includes all the features and functions needed for a wide range of applications. The meter measures DC voltage to 1000 V, AC voltage to 750 V, AC/DC current to 10 A, resistance to 40 MΩ, capacitance to 4000 μF, frequency to 40MHz and temperature from -4 °F to 1832 °F. Additionally, the meter has a continuity beeper, diode test, overload protection, and measures duty cycle. All measurements have wide testing ranges and high accuracy. Testing results are displayed on the 3-3/4 digit LCD with 41-segment analogue bar graph.

Other features of Amprobe 34XR-A digital multimeters include an input warning tone when test leads are put in the wrong jacks; Min/Max, Data Hold and Range Lock; Auto power-off and a separate door for battery and fuse access.

Features and Benefits:

• DC Voltage Ranges: 400 mV, 4 V, 40 V, 400 V, 1000 V

• DC Voltage Accuracy: ±(0.5 % rdg + 1 dgt)

• AC Voltage (True RMS) Ranges: 400 mV, 4 V, 40 V, 400 V, 750 V

• AC Voltage (True RMS Accuracy: up to ±(1.2 % rdg + 8 dgts)

• AC/DC Current Ranges: 400 μA, 4 mA, 40 mA, 300 mA, 10 A

• AC/DC Current Accuracy: up to ±(1.0 % rdg + 1 dgt) DC; ±(1.5 % rdg + 8 dgts) AC

• Resistance Ranges: 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 40 MΩ

• Resistance Accuracy: up to ±(1.0 % rdg + 4 dgts)

• Capacitance Ranges: 4 μF, 40 μF, 400 μF, 4000 μF

• Capacitance Accuracy: up to ±(5.0 % rdg + 5 dgts)

• Temperature Range: -4 °F to 1832 °F

• Temperature Accuracy: ± (1.0 % rdg + 6 °F )

• Frequency Ranges: 4 kHz, 40 kHz, 400 kHz, 4 MHz, 40MHz

• Frequency Accuracy: ±(0.1 % rdg + 3 dgts)

• Continuity: Audible Indication < 35 Ω

• Duty Cycle, Diode Test, Overload Protection

• 3-3/4 digit LCD with 41-segment analog bar graph

• Cat II 1000V, Cat III 600V safety rating

• UL listed

Supplied with

• Test leads with threaded alligator clips (TL36A)
• 9 V battery
• Magne-Grip holster w/magnetic hanging strap (H2-XRA)
• Temperature adapter (TA-1)
• Type K thermocouple probe (TP255A)
• Spare fuse
• Manual

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Amprobe
	Multimeter Type	Handheld
	Model Number p	34XRA
	Display Type	Digital
	Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
	Absolute Maximum Resistance Measurement	40MΩ
	Absolute Maximum DC Voltage Measurement	1000V dc
	Absolute Maximum DC Current Measurement	10A dc
	Absolute Maximum AC Voltage Measurement	750V ac
	Absolute Maximum AC Current Measurement	10A ac
	Absolute Maximum Capacitance Measurement	4mF
	Absolute Maximum Temperature Measurement	+1000°C
	Maximum Frequency	2kHz
	DC Current Measurement Resolution	0.1µA dc
	AC Current Measurement Resolution	0.1µA ac
	DC Voltage Measurement Resolution	100µV dc
	AC Voltage Measurement Resolution	100µV ac
	Resistance Measurement Resolution	100mΩ
	Temperature Measurement Resolution	1°C
	Capacitance Measurement Resolution	1nF
	Safety Category Level	CAT II, CAT III
	Dimensions	196 x 92 x 60mm
	Best Temperature Measurement Accuracy	±3% + 2 °C
	Best AC Voltage Accuracy	±2% + 8 Digits
	Best Capacitance Measurement Accuracy	±5% + 15 Digits
	Minimum Operating Temperature	0°C
	Height	60mm
	Weight	400g
	Maximum Operating Temperature	+50°C
	Best AC Current Accuracy	±2.5% + 10 Digits
	Width	92mm
	Best DC Current Accuracy	±2% + 3 Digits
	Safety Category Voltage	600 V, 1000V
	Battery Type	9V
	Best Resistance Measurement Accuracy	±2% + 5 Digits
	Length	196mm
	Best DC Voltage Accuracy	±0.5% + 1 Digit

	Select all
	Brand Amprobe
	Multimeter Type Handheld
	Model Number p 34XRA
	Display Type Digital
	Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
	Absolute Maximum Resistance Measurement 40MΩ
	Absolute Maximum DC Voltage Measurement 1000V dc
	Absolute Maximum DC Current Measurement 10A dc
	Absolute Maximum AC Voltage Measurement 750V ac
	Absolute Maximum AC Current Measurement 10A ac
	Absolute Maximum Capacitance Measurement 4mF
	Absolute Maximum Temperature Measurement +1000°C
	Maximum Frequency 2kHz
	DC Current Measurement Resolution 0.1µA dc
	AC Current Measurement Resolution 0.1µA ac
	DC Voltage Measurement Resolution 100µV dc
	AC Voltage Measurement Resolution 100µV ac
	Resistance Measurement Resolution 100mΩ
	Temperature Measurement Resolution 1°C
	Capacitance Measurement Resolution 1nF
	Safety Category Level CAT II, CAT III
	Dimensions 196 x 92 x 60mm
	Best Temperature Measurement Accuracy ±3% + 2 °C
	Best AC Voltage Accuracy ±2% + 8 Digits
	Best Capacitance Measurement Accuracy ±5% + 15 Digits
	Minimum Operating Temperature 0°C
	Height 60mm
	Weight 400g
	Maximum Operating Temperature +50°C
	Best AC Current Accuracy ±2.5% + 10 Digits
	Width 92mm
	Best DC Current Accuracy ±2% + 3 Digits
	Safety Category Voltage 600 V, 1000V
	Battery Type 9V
	Best Resistance Measurement Accuracy ±2% + 5 Digits
	Length 196mm
	Best DC Voltage Accuracy ±0.5% + 1 Digit
