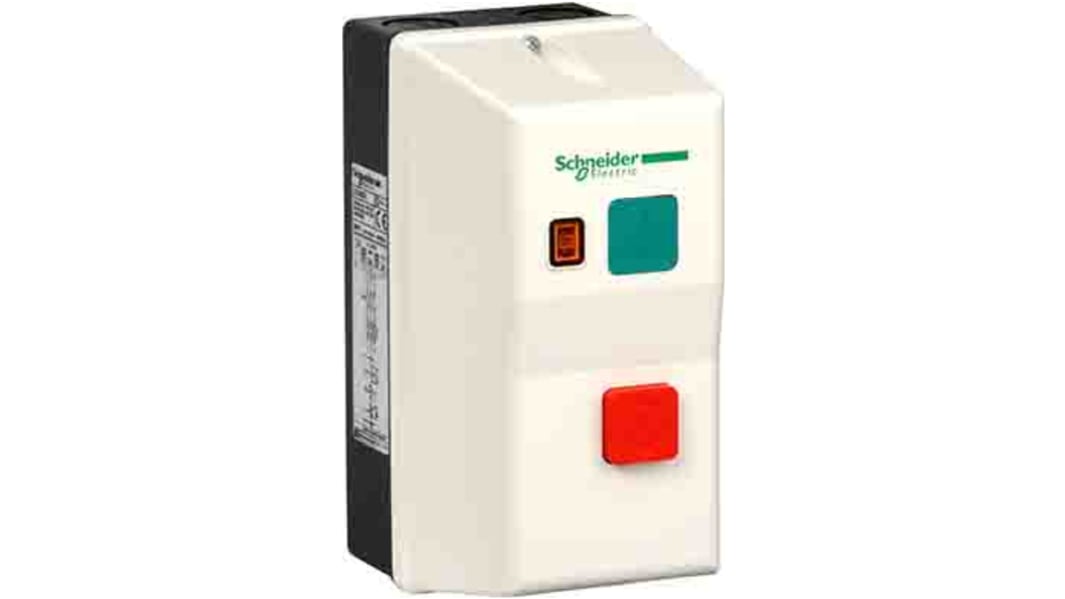

Schneider Electric TeSys DOL Starter, DOL, 2.2 kW, 230 V ac, 3 Phase, IP65

RS stock no.:: 211-1738
Mfr. Part No.:: LE1M35P712
Manufacturer:: Schneider Electric

Schneider Electric TeSys DOL Starter, DOL, 2.2 kW, 230 V ac, 3 Phase, IP65

Price Each**

R 2 869,36

(exc. VAT)

R 3 299,76

(inc. VAT)

4 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over R 1500

Not Available for premium delivery

Units	Per unit
1 +	R 2 869,36

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS stock no.:: 211-1738
Mfr. Part No.:: LE1M35P712
Manufacturer:: Schneider Electric

TeSys LE Enclosed DOL Motor Starter.

From Schneider Electric this is the TeSys LE series of enclosed D.O.L motor starters and soft starters (direct-on-line and star-delta starters) with up to 37 kW for motors up to 80 A (400 V). The TeSys LE range are compact motor starters, can be installed for local control and wall mounted quick and easy to use and simple to install plus are available in various solutions.

Features and Benefits.

TeSys LE enclosed motor starters.

Pre-wired circuit.

Easy access cable entry.

IP 65 Protection excellent for harsh environments.

Can be DIN rail mounted.

Push button control.

Simple to install – excellent for speedy installation.

Cable entry.

Continuous service due to coordination.

D.O.L Starters.

LE1, LE2 range: contactor + overload Relay Up to 37 KW.

Available in Reversing and Non-reversing starters

Conforms to standards IEC 60947-4-1

IP 65 degree of protection.

Ambient air temperature: operation from -5°C to +40 °C.

For supply voltages between 380 and 440 V the Control circuit is pre-wired between phases. For other supply voltages the control circuit must be wired by the customer.

Overload relay must be ordered separately except LE1M pre-configured range.

Operating positions are the same as contactors.

Enclosure is made from - LE2 K and LE D09-D35 in Polycarbonate, LE D40A-D65A in Sheet Steel.

D.O.L. Starters with a fuse disconnecting switch.

Direct on-line LE4, LE8 range fuse switch-disconnector + contactor + overload relay Up to 15 kW.

Available in Reversing and Non-reversing starters.

Conforms to standards IEC 60947-4-1.

IP 65 degree of protection.

Ambient air temperature: Operation from -5 to +40 C.

For supply voltages between 380 and 440 V the Control circuit is pre-wired between phases. For other supply voltages, the control circuit must be wired by the customer.

Overload relay must be ordered separately, same as for fuse.

Enclosure is made from Polycarbonate.

D.O.L Starters enclosure for thermal magnetic circuit breaker and contactor.

LE1GV Enclosure for thermal magnetic circuit breaker + contactor Up to 5.5 kW.

Conforms to standards IEC 60947-4-1.

IP 55 degree of protection.

Enclosure is made from Polycarbonate

Star-delta starters.

Star-delta LE3 range contactors + overload relay Up to 30 kW.

Conforms to standards IEC 60947-4-1.

IP 65 degree of protection.

For supply voltages between 380 and 415 V the Control circuit is pre-wired between phases. For other supply voltages, the control circuit must be wired by the customer.

Overload relay must be ordered separately.

Enclosure is made from Polycarbonate.

Applications.

All types of industry.

Infrastructure.

Buildings.

Machines that need (D.O.L Motor starting or motor stopping, Reverse and Non-reverse starting, Simple soft starting.

Overload protection with or without an isolating device.

LE1M35Q716 TeSys LE LE1M DOL Starter.

Enclosed starter.

Standard applications.

AC-3 Category.

Composition – Contactor, Earth terminal, Neutral terminal, Thermal overload relay.

Push button start (green).

Push button stop and reset (red).

Cable entry.

Width 78 mm.

Height 160 mm.

Depth 108 mm.

Weight 0.6 kg.

Made from ABS.

IP65 protection.

Standard environment.

Operating temperature -5°C to 40°C.

Standards

IEC 60947-4-1.

Attribute	Value
Power Rating	2.2 kW
Motor Starter Type	DOL
Range	TeSys
Voltage Rating	230 V ac
Phase	3
Current Rating	5.5 A
IP Rating	IP65
Motor Starter Functionality	Manual
Better World Product	Yes
Better World Verification	Green Premium
