Infineon Surface Hall Effect Latch 2.7 V 24 V, SC-59, 3-Pin
- RS stock no.:
- 826-9147
- Mfr. Part No.:
- TLE49462KHTSA1
- Manufacturer:
- Infineon

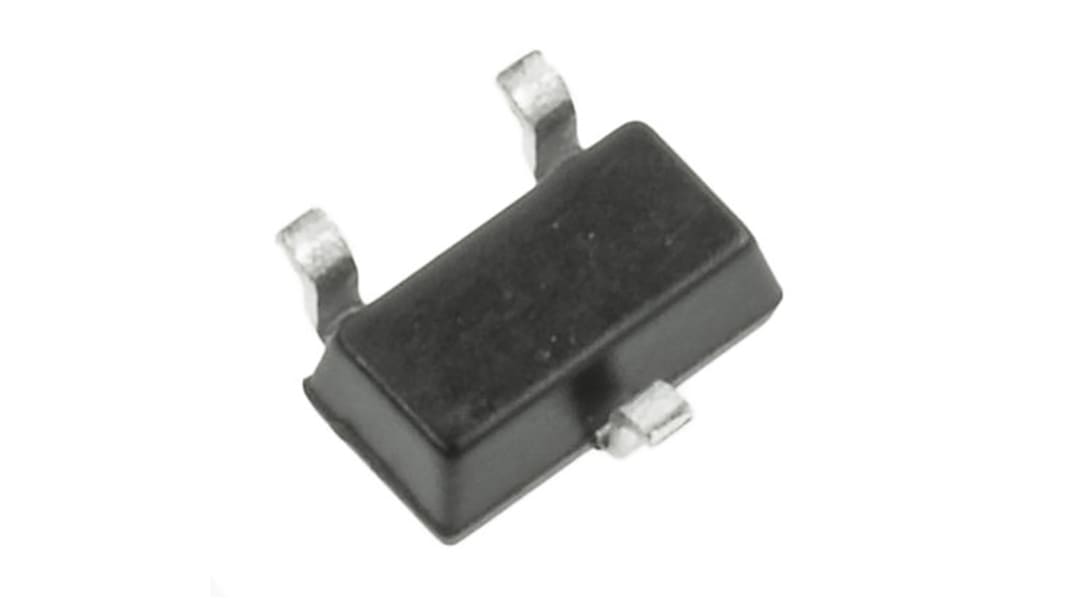

Image representative of range
Bulk discount available
Subtotal (1 pack of 50 units)*
R 448,85
(exc. VAT)
R 516,20
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 1,600 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 200 | R 8.977 | R 448.85 |
| 250 - 1200 | R 8.753 | R 437.65 |
| 1250 - 2950 | R 8.49 | R 424.50 |
| 3000 - 6200 | R 8.151 | R 407.55 |
| 6250 + | R 7.825 | R 391.25 |
*price indicative
- RS stock no.:
- 826-9147
- Mfr. Part No.:
- TLE49462KHTSA1
- Manufacturer:
- Infineon
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Sensor Type | Hall Effect Sensors | |
| Product Type | Hall Effect Latch | |
| Technology | Digital | |
| Mount Type | Surface | |
| Magnetic Type | Bipolar | |
| Maximum Frequency Response | 15kHz | |
| Minimum Frequency Response | 0kHz | |
| Minimum Supply Voltage | 2.7V | |
| Package Type | SC-59 | |
| Maximum Supply Voltage | 24V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 3 | |
| Length | 3mm | |
| Standards/Approvals | No | |
| Width | 1.6 mm | |
| Height | 1.1mm | |
| Series | TLE4946-2K | |
| Response Time | 13μs | |
| Supply Current | 2.6mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Sensor Type Hall Effect Sensors | ||
Product Type Hall Effect Latch | ||
Technology Digital | ||
Mount Type Surface | ||
Magnetic Type Bipolar | ||
Maximum Frequency Response 15kHz | ||
Minimum Frequency Response 0kHz | ||
Minimum Supply Voltage 2.7V | ||
Package Type SC-59 | ||
Maximum Supply Voltage 24V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Pin Count 3 | ||
Length 3mm | ||
Standards/Approvals No | ||
Width 1.6 mm | ||
Height 1.1mm | ||
Series TLE4946-2K | ||
Response Time 13μs | ||
Supply Current 2.6mA | ||
Automotive Standard No | ||
Hall Effect Switches, Infineon
A range of Hall Effect switching ICs from Infineon available with both standard and latching operation.
Hall Effect Sensors, Infineon
A range of integrated circuits from Infineon utilizing the Hall Effect to implement non-contact switching and sensing functions. Hall Effect ICs fall into three basic categories: Linear Sensors, Switches, and Latches. Linear Sensors have a linear analogue output proportional to magnetic field strength whilst Hall Effect Switches and Latches have a switching output and are activated by magnetic field proximity. Latching switches require a magnetic field of opposite polarity to respectively activate and deactivate the switched output. Hall Effect switches are also available with 2-wire current level operation.
