TE Connectivity 3 Axis PCB Accelerometer 2.8 V 5.5 V, LCC, 12-Pin
- RS stock no.:
- 261-8107
- Mfr. Part No.:
- 830M1-0100-TRAY-PACKAGED
- Manufacturer:
- TE Connectivity

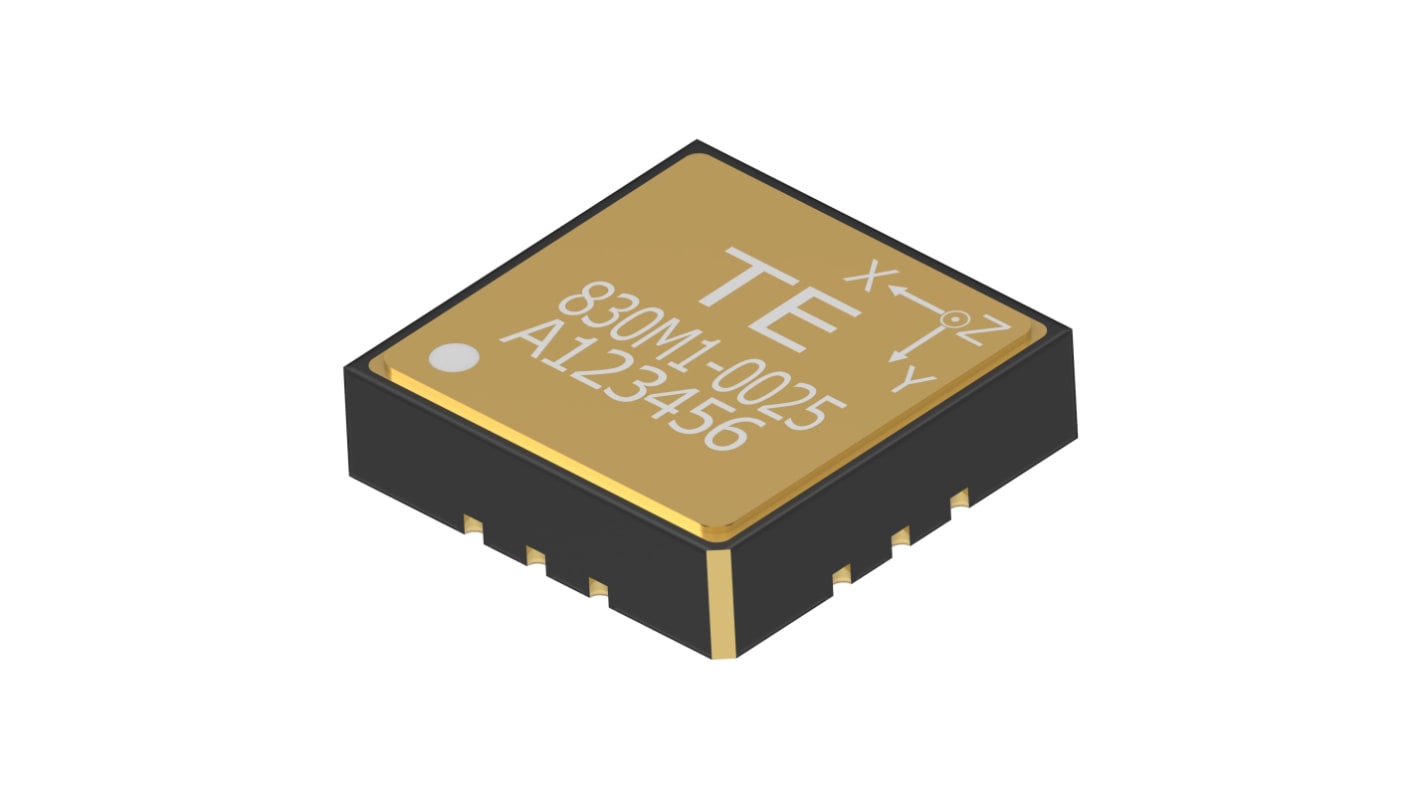

Image representative of range
Subtotal (1 tray of 50 units)*
R 139 526,65
(exc. VAT)
R 160 455,65
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- Shipping from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 50 + | R 2,790.533 | R 139,526.65 |
*price indicative
- RS stock no.:
- 261-8107
- Mfr. Part No.:
- 830M1-0100-TRAY-PACKAGED
- Manufacturer:
- TE Connectivity
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Sensor Type | Accelerometer | |
| Product Type | Accelerometer | |
| Number of Axis | 3 | |
| Technology | Accelerometer | |
| Mount Type | PCB | |
| Maximum Frequency Response | 15000Hz | |
| Minimum Frequency Response | 2Hz | |
| Minimum Supply Voltage | 2.8V | |
| Maximum Supply Voltage | 5.5V | |
| Package Type | LCC | |
| Sensitivity | 12.5mV/g | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Pin Count | 12 | |
| Width | 15.2 mm | |
| Standards/Approvals | RoHS | |
| Length | 15.2mm | |
| Height | 4.2mm | |
| Series | 830M1 | |
| Response Time | 1s | |
| Supply Current | 200μA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Sensor Type Accelerometer | ||
Product Type Accelerometer | ||
Number of Axis 3 | ||
Technology Accelerometer | ||
Mount Type PCB | ||
Maximum Frequency Response 15000Hz | ||
Minimum Frequency Response 2Hz | ||
Minimum Supply Voltage 2.8V | ||
Maximum Supply Voltage 5.5V | ||
Package Type LCC | ||
Sensitivity 12.5mV/g | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Pin Count 12 | ||
Width 15.2 mm | ||
Standards/Approvals RoHS | ||
Length 15.2mm | ||
Height 4.2mm | ||
Series 830M1 | ||
Response Time 1s | ||
Supply Current 200μA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The TE Connectivity triaxial condition monitoring accelerometer, is a low cost, triaxial board mountable accelerometer designed for embedded condition monitoring and preventive maintenance applications. The model 830M1 accelerometer three independent stable piezo ceramic crystals in shear mode with low power electronics, sealed in a fully hermetic LCC package.
Hermetically sealed LCC package
Piezo-Ceramic Crystals, Shear Mode
