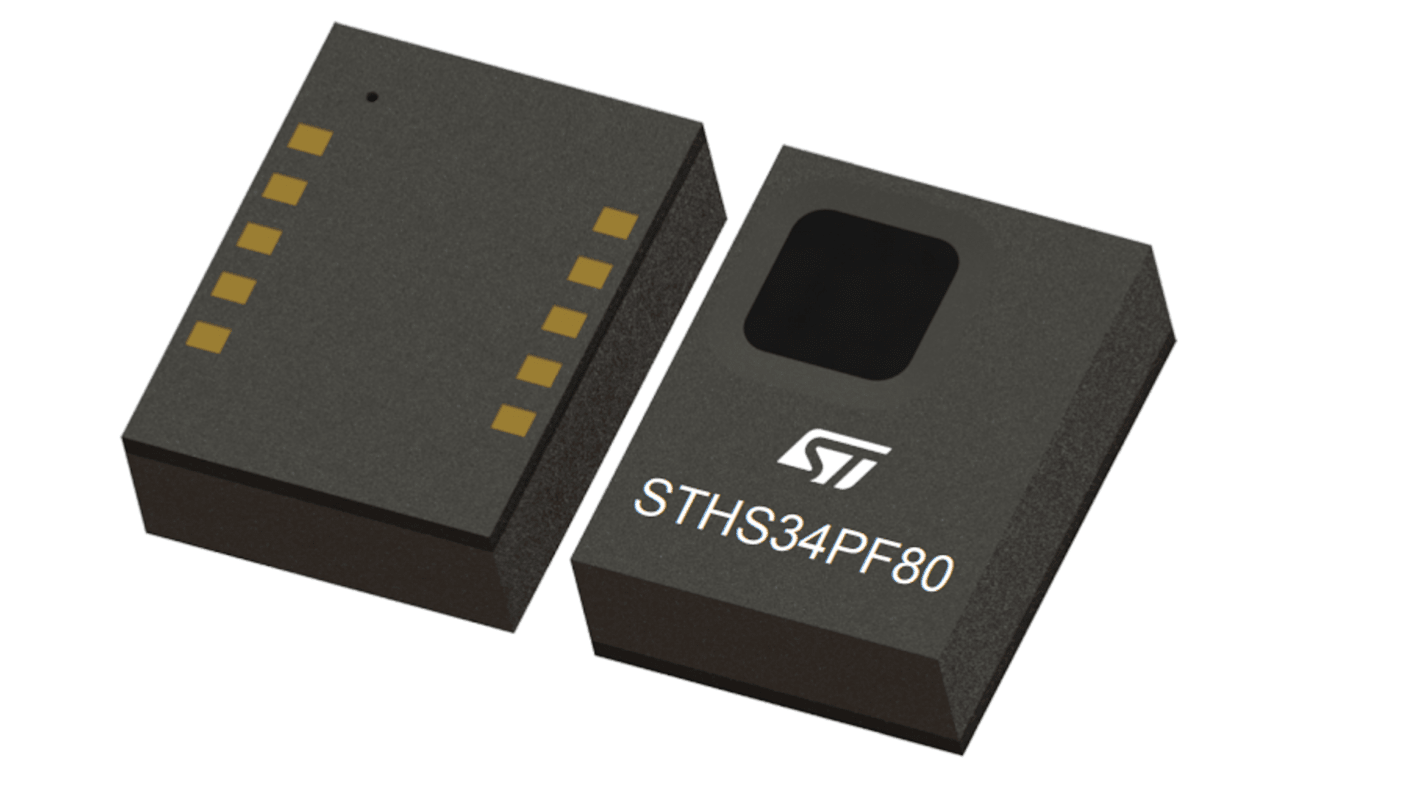

STMicroelectronics Surface Motion Sensor Module 3.6 V 1.71 V, Serial-SPI, LGA, 10-Pin

Image representative of range

View all Motion Sensor ICs
Bulk discount available

Subtotal (1 unit)*

R 92,41

(exc. VAT)

R 106,27

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 30 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9R 92.41
10 - 99R 90.10
100 - 249R 87.40
250 - 499R 83.90
500 +R 80.54

*price indicative

Packaging Options:
RS stock no.:
261-4393
Mfr. Part No.:
STHS34PF80TR
Manufacturer:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

Motion Sensor Module

Sensor Type

Motion Sensor Module

Technology

CMOS

Mount Type

Surface

Magnetic Type

Latch

Interface Type

Serial-SPI

Minimum Supply Voltage

3.6V

Maximum Supply Voltage

1.71V

Package Type

LGA

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Pin Count

10

Length

4.2mm

Height

1.46mm

Width

3.2 mm

Standards/Approvals

RoHS

Automotive Standard

No

COO (Country of Origin):
TW

Low-power, high-sensitivity infrared (IR) sensor for presence and motion detection


The STHS34PF80 is an uncooled, factory-calibrated, infrared motion and presence detection sensor with operating wavelength between 5 μm and 20 μm.

The STHS34PF80 sensor has been designed to measure the amount of IR radiation emitted from an object within its field of view. The information is digitally processed by the ASIC, which can be programmed to monitor motion, presence, or an overtemperature condition.

Thanks to its exceptional sensitivity, the STHS34PF80 can detect the presence of a human being at a distance up to 4 meters without the need of an optical lens.

The STHS34PF80 is housed in a small 3.2 x 4.2 x 1.455 (max) mm 10-lead LGA package.

All features


  • Key features

    • High-sensitivity infrared presence and motion detection sensor

    Reach up to 4 meters without lens for objects measuring 70 x 25 cm²

    Integrated silicon IR filter

    SMD friendly

    Capable of detecting stationary objects

    Capable of distinguishing between stationary and moving objects

    80° field of view

    Factory calibrated

    Low power

    Embedded smart algorithm for presence / motion detection

  • Electrical specifications

    • Supply voltage: 1.7 V to 3.6 V

    Supply current: 10 μA

    2-wire I²C / 3-wire SPI serial interface

    Programmable ODRs from 0.25 Hz to 30 Hz

    One-shot mode

  • Sensing specifications

    • IR sensitivity: 2000 LSB/°C

    RMS noise: 25 LSBrms

    Operating wavelength: 5 μm to 20 μm

    Local temperature sensor accuracy: ±0.3 °C

  • Package specifications

    • LGA 10-lead, 3.2 x 4.2 x 1.455 (max) mm

    ECOPACK and RoHS compliant
