Honeywell Surface Hall Effect Sensor 4.5 V 24 V, SOT-23, 3-Pin

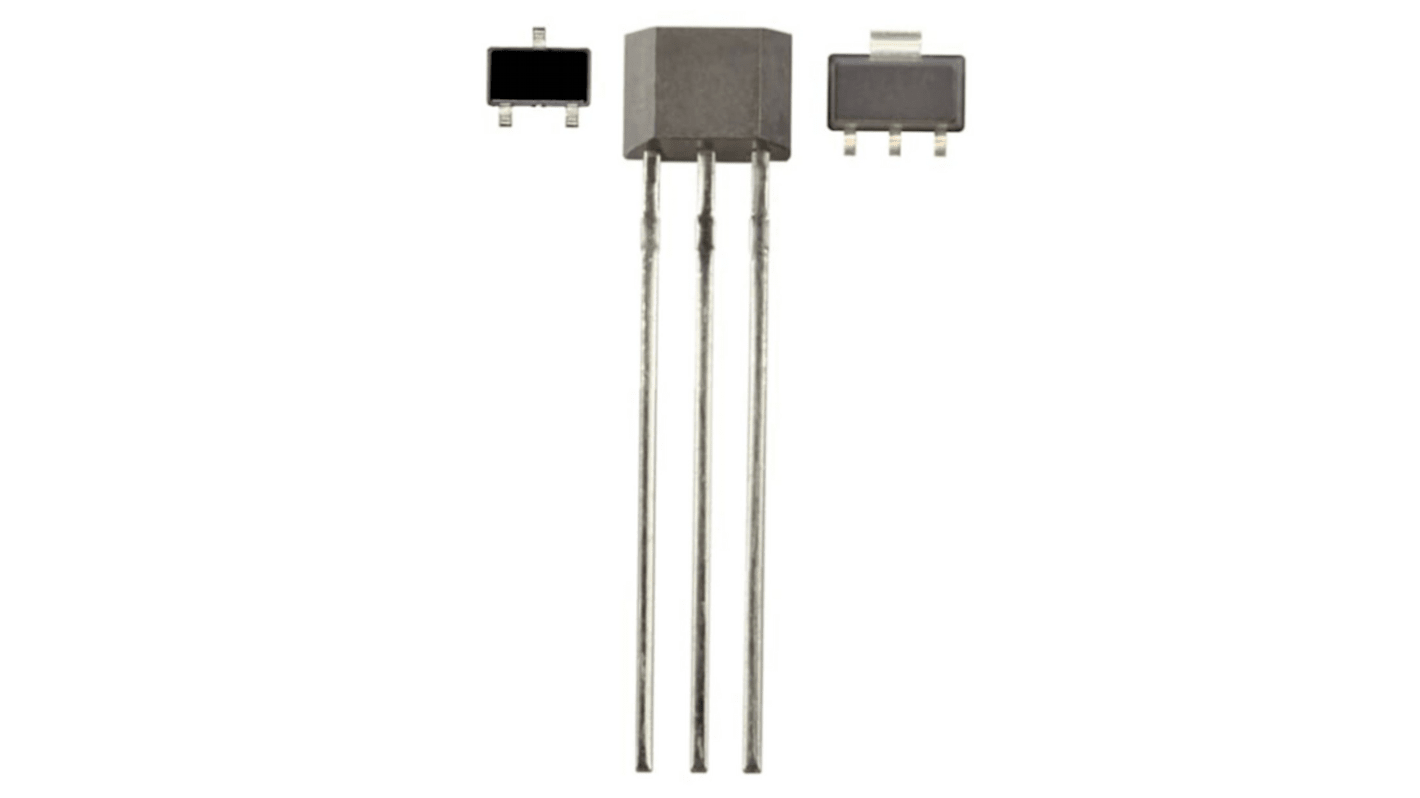

Image representative of range

View all Motion Sensor ICs

Subtotal (1 reel of 3000 units)*

R 49 776,00

(exc. VAT)

R 57 243,00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6,000 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +R 16.592R 49,776.00

*price indicative

RS stock no.:
236-2725
Mfr. Part No.:
SS30AT
Manufacturer:
Honeywell
Find similar products by selecting one or more attributes.
Select all

Brand

Honeywell

Sensor Type

Bipolar Hall Effect

Product Type

Hall Effect Sensor

Technology

Digital

Mount Type

Surface

Magnetic Type

Bipolar

Minimum Supply Voltage

4.5V

Package Type

SOT-23

Maximum Supply Voltage

24V

Minimum Operating Temperature

-40°C

Pin Count

3

Maximum Operating Temperature

125°C

Length

2.9mm

Series

SS

Standards/Approvals

RoHS materials meet Directive 2002/95/EC

Width

2.8 mm

Height

1.4mm

Supply Current

11.3mA

Automotive Standard

No

Response Time

5μs

COO (Country of Origin):
CN
The Honeywell SS30AT series sensor are versatile, bipolar, Hall-effect sensors. These sensitive magnetic sensors offer reverse polarity protection and deliver stable output over a -40 °C to 125 °C temperature range. The operation from any dc supply voltage from 4.5 Vdc to 24.0 Vdc is acceptable and it is designed with the latest technologies to provide reliable, cost-effective solutions to many commercial, computer, medical, and/or consumer applications requiring motor control and RPM sensing.

Thermal balanced integrated circuit provides for stable operation over a full temperature range

Small package size allows for more space on PCB

Robust design with built-in reverse voltage protection simplifies installation and protect device from damage w
