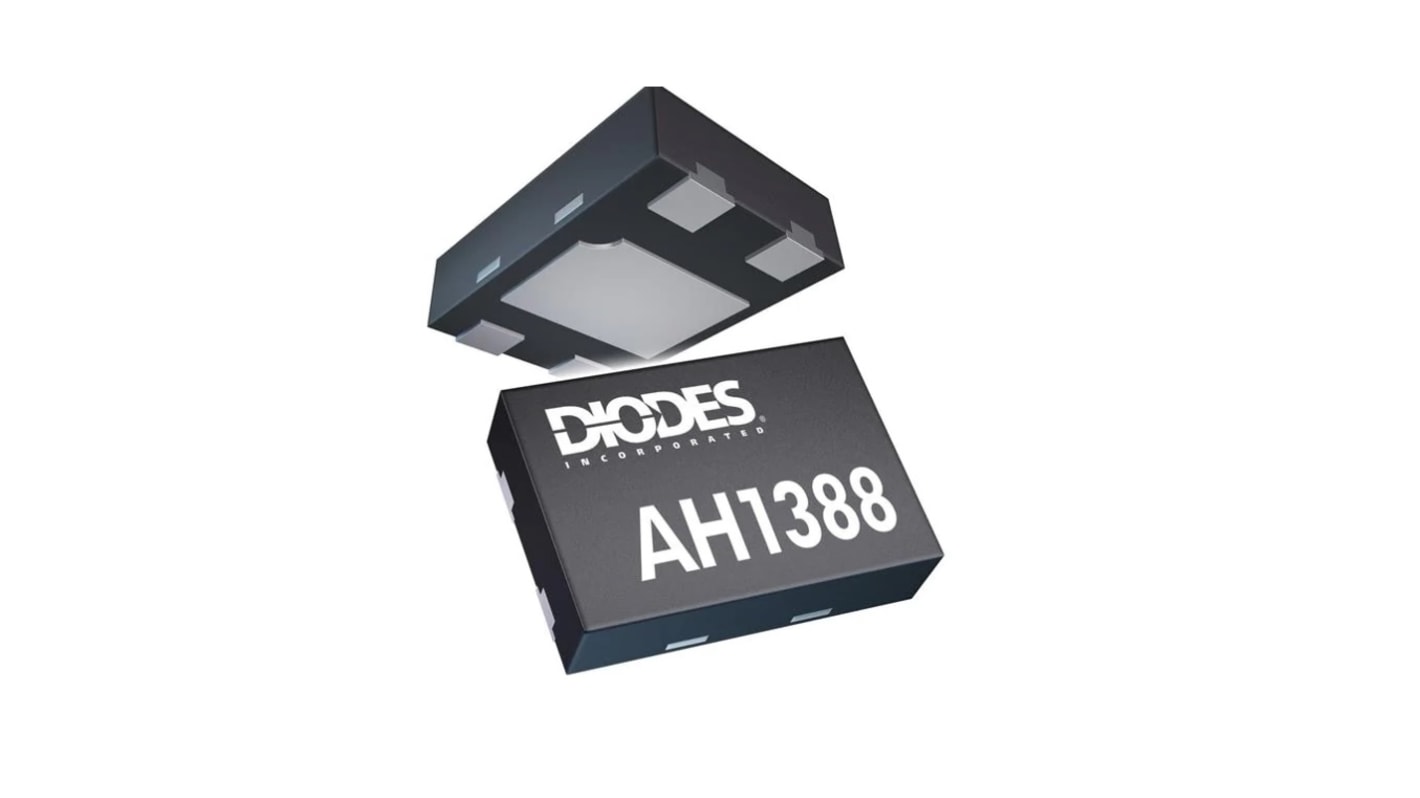

DiodesZetex Surface Hall Effect Sensor 1.6 V 3.6 V, X2-DFN1410-4, 4-Pin

Image representative of range

View all Motion Sensor ICs

Subtotal (1 reel of 4000 units)*

R 9 028,00

(exc. VAT)

R 10 384,00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 15 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
4000 +R 2.257R 9,028.00

*price indicative

RS stock no.:
213-9013
Mfr. Part No.:
AH1388-HK4-7
Manufacturer:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Product Type

Hall Effect Sensor

Sensor Type

Hall Effect

Mount Type

Surface

Magnetic Type

Unipolar

Minimum Supply Voltage

1.6V

Maximum Supply Voltage

3.6V

Package Type

X2-DFN1410-4

Minimum Operating Temperature

-40°C

Pin Count

4

Maximum Operating Temperature

85°C

Height

0.4mm

Series

AH1388

Length

1.05mm

Width

1.45 mm

Standards/Approvals

RoHS

Automotive Standard

AEC-Q100

Supply Current

0.36μA

The DiodesZetex AH1388 series is a miniature micro power magnetic unipolar hall effect switch IC with dual outputs specifically designed for portable and battery powered consumer equipment to home appliances and industrial applications.

Dual outputs for independent pole detection for design flexibility

Internal pull-up and pull-down capability
