Allegro Microsystems 1-Axis Surface Hall Effect Sensor 3 V 5.5 V, CB, 5-Pin
- RS stock no.:
- 170-9119
- Mfr. Part No.:
- ACS758ECB-200U-PFF-T
- Manufacturer:
- Allegro Microsystems

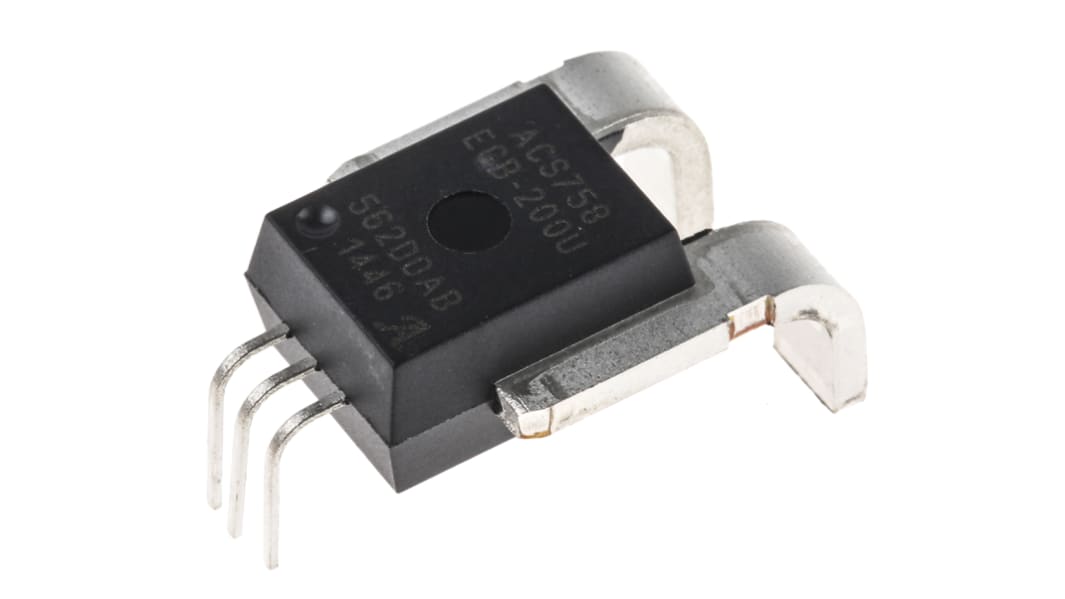

Image representative of range
Subtotal (1 tube of 34 units)*
R 4 000,134
(exc. VAT)
R 4 600,166
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 544 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 34 + | R 117.651 | R 4,000.13 |
*price indicative
- RS stock no.:
- 170-9119
- Mfr. Part No.:
- ACS758ECB-200U-PFF-T
- Manufacturer:
- Allegro Microsystems
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allegro Microsystems | |
| Sensor Type | Hall Effect Sensors | |
| Product Type | Hall Effect Sensor | |
| Number of Axis | 1 | |
| Technology | BiCMOS Hall IC | |
| Mount Type | Surface | |
| Magnetic Type | Linear | |
| Maximum Frequency Response | 120kHz | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 5.5V | |
| Package Type | CB | |
| Sensitivity | 60mV/A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Pin Count | 5 | |
| Series | ACS758 | |
| Width | 13 mm | |
| Height | 7mm | |
| Standards/Approvals | TÜV America, UL Certified | |
| Length | 10mm | |
| Supply Current | 13.5mA | |
| Response Time | 4μs | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand Allegro Microsystems | ||
Sensor Type Hall Effect Sensors | ||
Product Type Hall Effect Sensor | ||
Number of Axis 1 | ||
Technology BiCMOS Hall IC | ||
Mount Type Surface | ||
Magnetic Type Linear | ||
Maximum Frequency Response 120kHz | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 5.5V | ||
Package Type CB | ||
Sensitivity 60mV/A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Pin Count 5 | ||
Series ACS758 | ||
Width 13 mm | ||
Height 7mm | ||
Standards/Approvals TÜV America, UL Certified | ||
Length 10mm | ||
Supply Current 13.5mA | ||
Response Time 4μs | ||
Automotive Standard AEC-Q100 | ||
50A to 200A Integrated Current Sensor ICs, Allegro MicroSystems
Allegro Current sensor ICs in CA and CB packages
Conductor resistance of 100 μΩ typical for ultra low-power loss
Automotive grade options for harsh applications environments
3000 Vrms galvanic isolation
Hall Effect Current Sensors, Allegro MicroSystems
