DiodesZetex Surface, Surface Mount Hall Effect Sensor 3 V 28V, SIP, 3-Pin
- RS stock no.:
- 146-4695
- Mfr. Part No.:
- AH3369Q-P-B
- Manufacturer:
- DiodesZetex

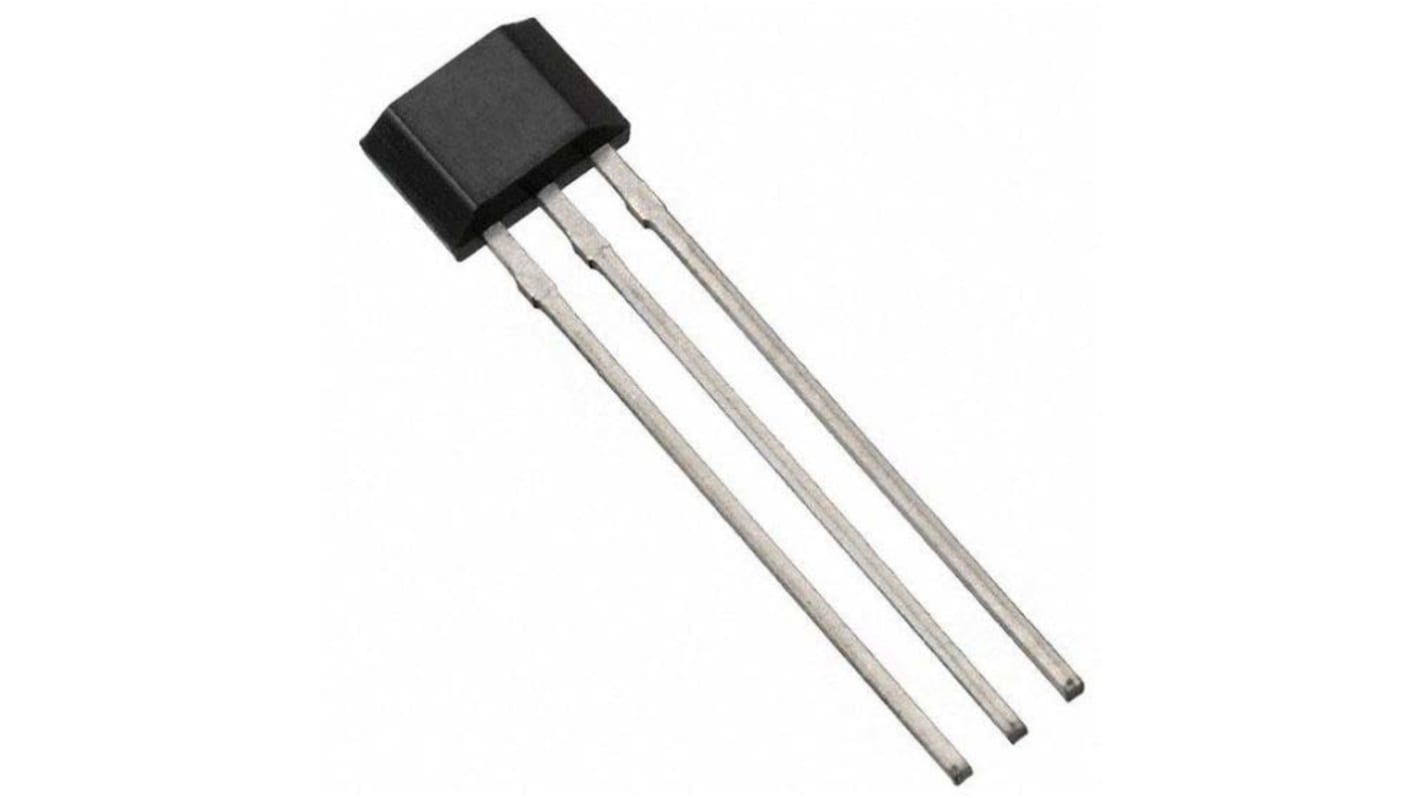

Image representative of range
Bulk discount available
Subtotal (1 box of 1000 units)*
R 10 236,00
(exc. VAT)
R 11 771,00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Box* |
|---|---|---|
| 1000 - 1000 | R 10.236 | R 10,236.00 |
| 2000 - 2000 | R 9.98 | R 9,980.00 |
| 3000 + | R 9.681 | R 9,681.00 |
*price indicative
- RS stock no.:
- 146-4695
- Mfr. Part No.:
- AH3369Q-P-B
- Manufacturer:
- DiodesZetex
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Hall Effect Sensor | |
| Sensor Type | Hall Effect Sensors, Hall Effect Sensors | |
| Technology | Chopper Stabilised | |
| Mount Type | Surface, Surface Mount | |
| Magnetic Type | Unipolar | |
| Maximum Frequency Response | 800kHz | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 28V | |
| Package Type | SIP | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 3 | |
| Maximum Operating Temperature | 150°C | |
| Series | AH3369Q | |
| Height | 1.6mm | |
| Length | 4.3mm | |
| Width | 3.2mm | |
| Standards/Approvals | RoHS | |
| Supply Current | 3mA | |
| Response Time | 3.75μs | |
| Automotive Standard | AEC-Q100, AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Hall Effect Sensor | ||
Sensor Type Hall Effect Sensors, Hall Effect Sensors | ||
Technology Chopper Stabilised | ||
Mount Type Surface, Surface Mount | ||
Magnetic Type Unipolar | ||
Maximum Frequency Response 800kHz | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 28V | ||
Package Type SIP | ||
Minimum Operating Temperature -40°C | ||
Pin Count 3 | ||
Maximum Operating Temperature 150°C | ||
Series AH3369Q | ||
Height 1.6mm | ||
Length 4.3mm | ||
Width 3.2mm | ||
Standards/Approvals RoHS | ||
Supply Current 3mA | ||
Response Time 3.75μs | ||
Automotive Standard AEC-Q100, AEC-Q100 | ||
Hall Effect Sensors, Diodes Inc
A range of linear output Hall Effect sensor ICs, designed for position and proximity sensing from Diodes Inc.
Hall Effect Sensors, Diodes Inc
A range of sensor ICs from Diodes Inc utilizing the Hall Effect to implement non-contact switching and sensing functions. Hall Effect ICs fall into three Basic categories: Linear Sensors, Switches, and Latches. Linear Sensors have a linear analogue output proportional to magnetic field strength whilst Hall Effect Switches and Latches have a switching output and are activated by magnetic field proximity. Latching switches require a magnetic field of opposite polarity to respectively activate and deactivate the switched output. Hall Effect switches are also available with 2-wire current level operation.
