STMicroelectronics 6 Axis Surface Sensor 1.71 V 3.6 V, LGA-14L, 14-Pin
- RS stock no.:
- 151-685P
- Mfr. Part No.:
- ISM330BXTR
- Manufacturer:
- STMicroelectronics

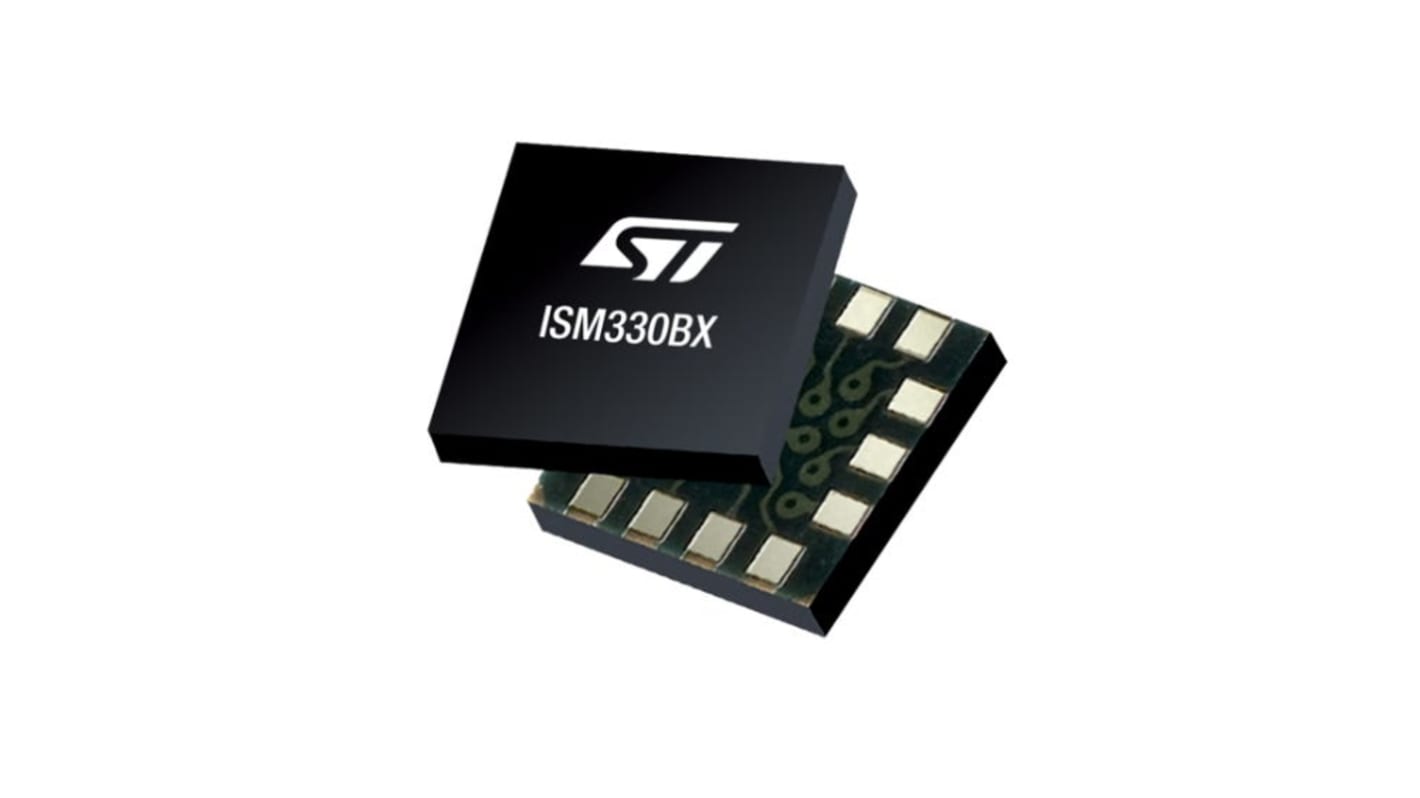

Image representative of range
Bulk discount available
Subtotal 10 units (supplied on a continuous strip)*
R 858,80
(exc. VAT)
R 987,60
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 9,978 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 10 - 99 | R 85.88 |
| 100 - 499 | R 83.30 |
| 500 - 999 | R 79.97 |
| 1000 + | R 76.77 |
*price indicative
- RS stock no.:
- 151-685P
- Mfr. Part No.:
- ISM330BXTR
- Manufacturer:
- STMicroelectronics
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Sensor | |
| Sensor Type | Gyroscope, Accelerometer | |
| Number of Axis | 6 | |
| Technology | Inertial Sensor | |
| Mount Type | Surface | |
| Maximum Frequency Response | 2.8kHz | |
| Minimum Frequency Response | 1.875Hz | |
| Minimum Supply Voltage | 1.71V | |
| Maximum Supply Voltage | 3.6V | |
| Package Type | LGA-14L | |
| Minimum Operating Temperature | -40°C | |
| Sensitivity | 1% | |
| Pin Count | 14 | |
| Maximum Operating Temperature | 85°C | |
| Series | ISM330BX | |
| Height | 0.71mm | |
| Length | 2.5mm | |
| Standards/Approvals | ECOPACK and RoHS | |
| Width | 3 mm | |
| Automotive Standard | No | |
| Supply Current | 0.6mA | |
| Response Time | 0.8s | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Sensor | ||
Sensor Type Gyroscope, Accelerometer | ||
Number of Axis 6 | ||
Technology Inertial Sensor | ||
Mount Type Surface | ||
Maximum Frequency Response 2.8kHz | ||
Minimum Frequency Response 1.875Hz | ||
Minimum Supply Voltage 1.71V | ||
Maximum Supply Voltage 3.6V | ||
Package Type LGA-14L | ||
Minimum Operating Temperature -40°C | ||
Sensitivity 1% | ||
Pin Count 14 | ||
Maximum Operating Temperature 85°C | ||
Series ISM330BX | ||
Height 0.71mm | ||
Length 2.5mm | ||
Standards/Approvals ECOPACK and RoHS | ||
Width 3 mm | ||
Automotive Standard No | ||
Supply Current 0.6mA | ||
Response Time 0.8s | ||
- COO (Country of Origin):
- PH
The STMicroelectronics inertial measurement unit having 6 Axis with wide bandwidth. It is system-in-package inertial measurement unit (IMU) featuring a3‑Axis digital accelerometer and a 3-Axis digital gyroscope with triple channels for processing acceleration and angular rate data for motion tracking and vibrationmeasurements along with Qvar sensing on up to three separate channels with dedicated configuration, processing, and filtering.
Embedded temperature sensor
TDM controller Interface
RoHS compliant
